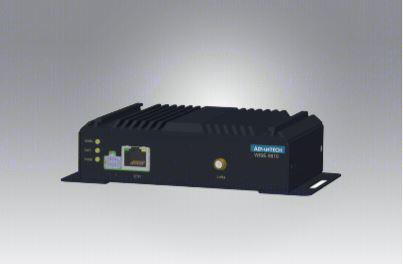

Wise-6610

Industrial LoRaWAN Gateway

Made by
Advantech is a certified partner.
Contact this partner →

Description

WISE-6610 is a high performance LoRaWAN gateway, with reliable connectivity for industrial environments. WISE-6610 supports LoRaWAN protocol for building LoRaWAN private and public networks. It supports various protocols including MQTT and its hardware and software flexibility provides rich features to Edge Intelligence Systems. WISE-6610 supports VPN tunnel creation using various protocols to ensure safe communications. WISE-6610 also provides the network server which can phase the LoRaWAN data in our device. WISE6610 provides the redundancy enhanced function to prevent the connection loss.

# EU 863-870
# Gateways
# Indoor
# Industrial IoT
# US 902-928

Specifications

  • Long Range Wide Area IoT gateway
  • LoRaWAN protocol for closing and public system application
  • Ethernet and I/O for connecting a wide array of field assets with DIN rail or wall mounting
  • Low power consumption for solar and battery power applications
  • Enhanced memory to host custom software applications
  • Redundancy enhanced functions for continuous data transmission

Ordering Information
- WISE-6610-N100-A LoRaWAN Gateway support up to 100 nodes with
915MHz
- WISE-6610-E100-A LoRaWAN Gateway support up to 100 nodes with
868MHz
- WISE-6610-N500-A LoRaWAN Gateway support up to 500 nodes with
915MHz
- WISE-6610-E500-A LoRaWAN Gateway support up to 500 nodes with
868MHz

Technical details

WSN Support

  • Standard: LoRaWAN
  • Frequency: 868/915MHz
  • ANT Connector: SMA Female connector x 1

LAN Interface

  • Ethernet: 10/100 Mbps, auto MDI/MDIX
  • Connector: RJ45 x1
  • Protection: 1.5 KV built-in magnetic isolation protection

Digital I/O

  • Port Type: 1x Digital Input On Voltage: 2.7V to 36VDC
  • Port Connector: 4-Way Molex moni-fit connector

General

  • LED Indicators: PWR, DAT, WAN, ETH
  • Reboot Trigger: Reset Button

Software

  • Network and Routing: DHCP Server, NAT/PAT, VRRP, Dynamic DNS client, DNS proxy, VLAN, QoS, DMVPN, NTP Client/Server, IGMP, BGP, OSPF, RIP, SMTP, SMTPS, SNMP v1/v2c/v3, Backup Routers, PPP, PPPoE, SSL, Port, Forwarding, Host Port Routing, Ethernet Bridging, Network Server
  • Configuration: SSH, Web Browser
  • Network Security: HTTPS, SSH, VPN tunnels, SFTP, DMZ, Firewall (IP Filtering, MAC address filtering, Inbound and outbound Port filtering)
  • VPN tunnelling: Open VPN client and server and P2P, L2TP, PPTP, GRE, EasyVPN, IPSec with IKEv1 and IKEv2

Mechanics

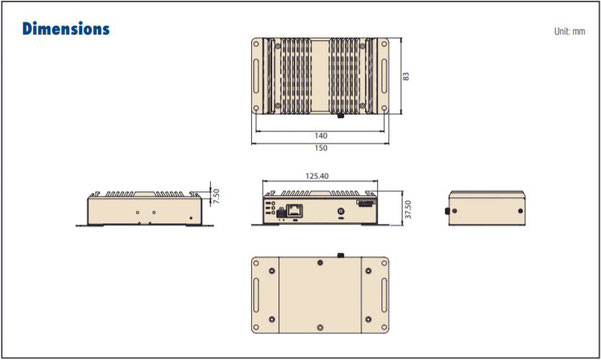

  • Dimensions: (W x H x D) 150 x 30 x 83 mm (5.9" x 1.18" x 3.27")
  • Mounting: DIN-rail, Wall
  • Weight: 500g
  • Enclosure Rating: IP30

Power Requirements

  • Power Input 9~36 VDC
  • Power Connector 4-Way Molex moni-fit connector
  • Power Consumption 3.1 / 6.6 / 40 mW (Average / Peak /Sleep Mode)

Environment

  • Operating Temperature -40 ~ 75 °C
  • Storage Temperature -40 ~ 85 °C
  • Operating Humidity 5 ~ 95% RH

Regulatory Approvals

  • EMC: EN61000-4-2,level 3
    EN61000-4-3,level 3
    EN61000-4-4,level 3
    EN61000-4-5,level 3
    EN61000-4-6,level 3
    EN61000-4-12, level 3
    EN61000-4-11, Voltage Dip: 70%
  • Shock: IEC60068-2-27
  • Free Fall: IEC60068-2-32
  • Vibration: IEC60068-2-6
