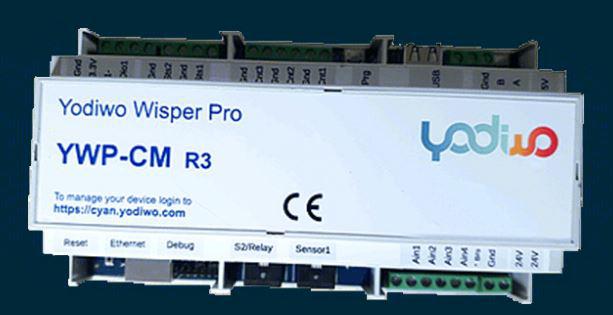

WisperPro Gateway
The IoT Fog Gateway
Made by
Yodiwo is a certified partner.
Contact this partner →
Description
Privacy and Security with Edge computing, without sending and storing sensitive data to the cloud.
Zero response time on events that need immediate actuation.
Local storage to prevent data loss in case of temporary internet outages.
Significant operating cost saving by minimizing the transactions with the back-end systems.
#
EU 863-870
#
Gateways
#
Indoor
#
Industrial IoT
Specifications
SoC – Broadcom BCM2837 quad core Cortex A53 processor with VideoCore IV GPU
System Memory – 1GB LPDDR2 RAM
Storage – 4GB eMMC flash, 256 byte EEPROM
RTC with integrated battery, User-controlled button, User-controlled LED
Sensor – SHT21 temperature and humidity sensor
Power supply – 5VDC via micro USB connector; 24V DC / 24V AC via screw terminals
Dimensions – 155 x 86 x 58 mm
Technical details
Connectivity
10/100M Ethernet port, optional Wifi 802.11 b/g/n at 2.4 GHz
Wifi 802.11 b/g/n at 2.4 GHz
Optional LoRaWAN radio module for either Gateway operation (8-channels) or Device operation (bidirectional communication with LoRa network servers).
Available at 433MHz/868MHz/915MHZ
Yodiwo’s own Network Server can optionally be integrated into Wisper Pro as well
Serial – RS485 serial port, RS232 serial debug port
USB – 2x USB 2.0 host ports
Debugging / Programming – 1x micro USB OTG
Expansion
6x digital inputs via screw terminals (for dry contacts or S0 interface)
4x analog inputs (0-5V) via screw terminals
Dallas 1-wire bus via screw terminals
1x RJ14 connector for I2C bus peripherals
1x XBee module compatible connector for ZigBee and other RF modules
3x expansion headers with additional GPIO, SPI and I2C bus connections
More Info
