Wardriving on a rainy Sunday

Kristoffer Dominic Amora

To serve, represent, to lead, and inspire others.

Posted on 09-07-2018

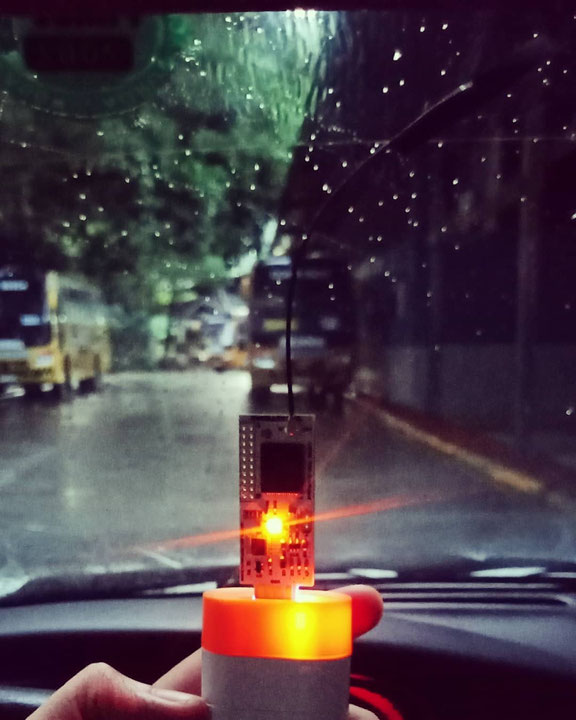

Wardriving on a rainy day yesterday. Continued today with added data points. Looks like for a gateway mounted 3m above the ground and a spreading factor of 10, more or less it can cover a 500m radius. It can cover Pleasant Homes Subd. + Villa Christina Subd. + DBTC. However, due to the low altitude of the gateway and LOS obstructions, the range is observed to be lesser than expected. But with the parameters mentioned, this is pretty cool compared to Bluetooth or Wi-Fi among others, not to mention using less than 1/4 of the power of Wi-Fi! #lora #lorawan #lpwan #iotcebu #ttncebu #thethingsnetwork #wardriving


Join requests started showing at this location.
Join request started showing at this location.

First packet received by the gateway at this location while driving on a floody E.Sabellano St.

Went straight to Don Bosco Technical College-Cebu. Most signals are clearer at this side of the Subdivision - several packets are picked up by the gateway.

Estimated coverage
