Connecting to The Things Network (TTN)

The Things Network is about enabling low power devices to use long range gateways to connect to an open-source, decentralized network to exchange data with Application. Learn more about the Things Network here.

  • First, connect RAK7204 LoRa Environmental Sensor with your PC and open the serial port tool on your PC.

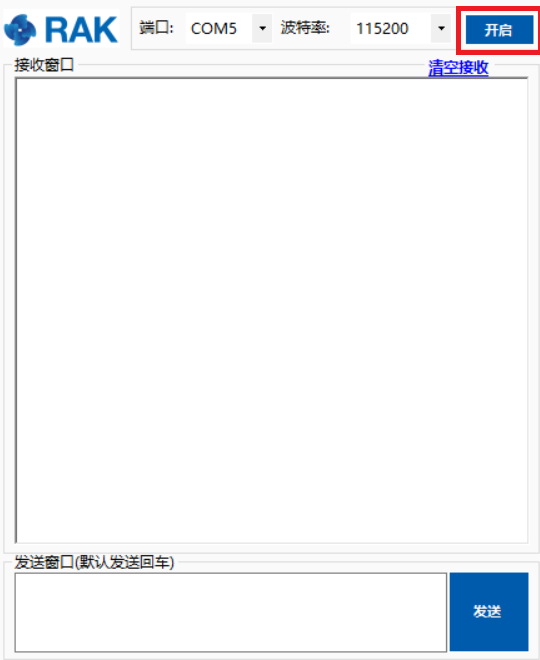

  • Second, open the serial port by clicking the following button:

Figure 1: RAK7204 Serial Port

Note: In this section, it is assumed that you have connected your LoRa gateway with TTN correctly. If not, please have a look at the document of RAK LoRa Gateway.

  • Now go to the The Things Network website ang click login. Fill in the necessary credentials and in the “Console” tab, pick “Application” as shown in the image below.

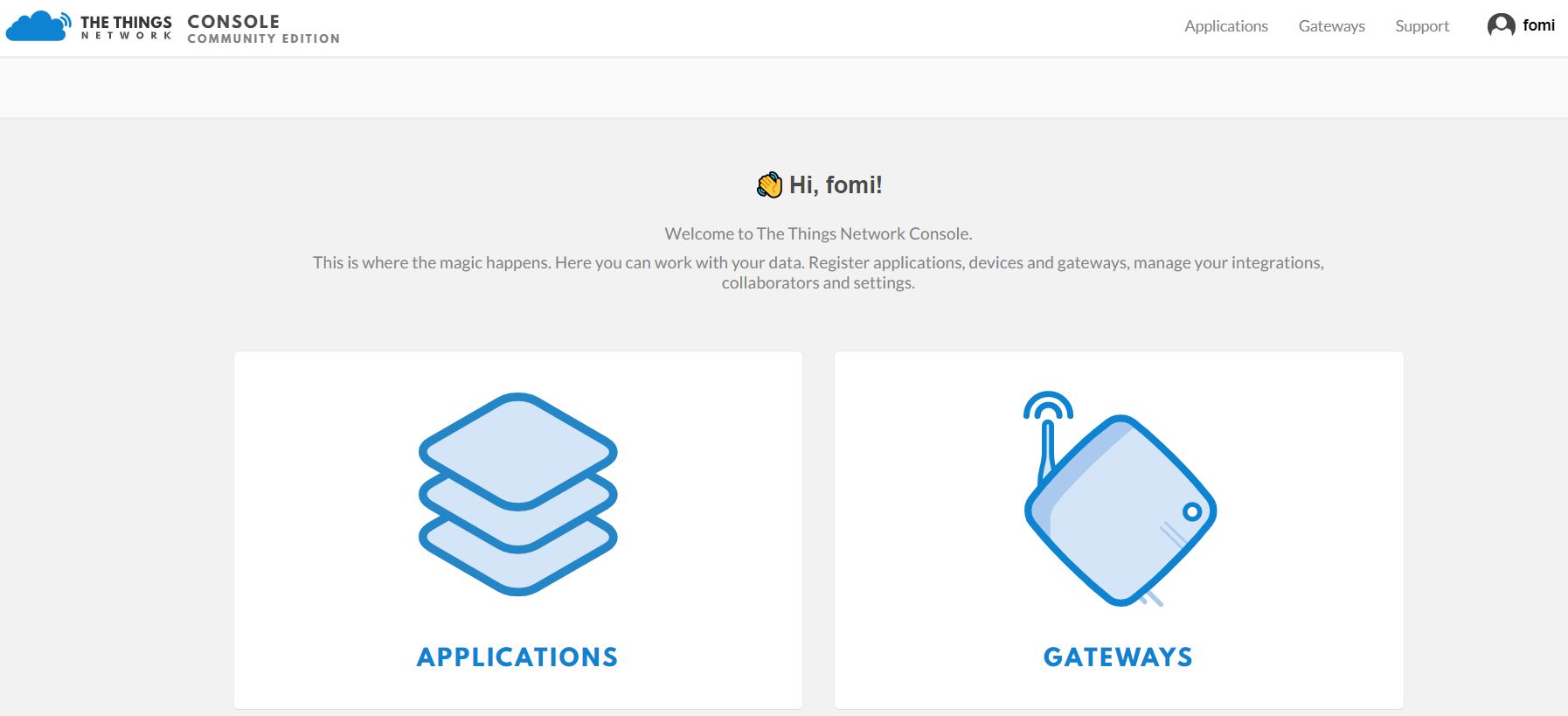

Figure 2: TTN Login

  • Press the “add application” button.
  • Create your own Application by filling up with correct contents.

Note: Your Device ID is a unique ID of lower case, alphanumeric characters and nonconsecutive - and _.

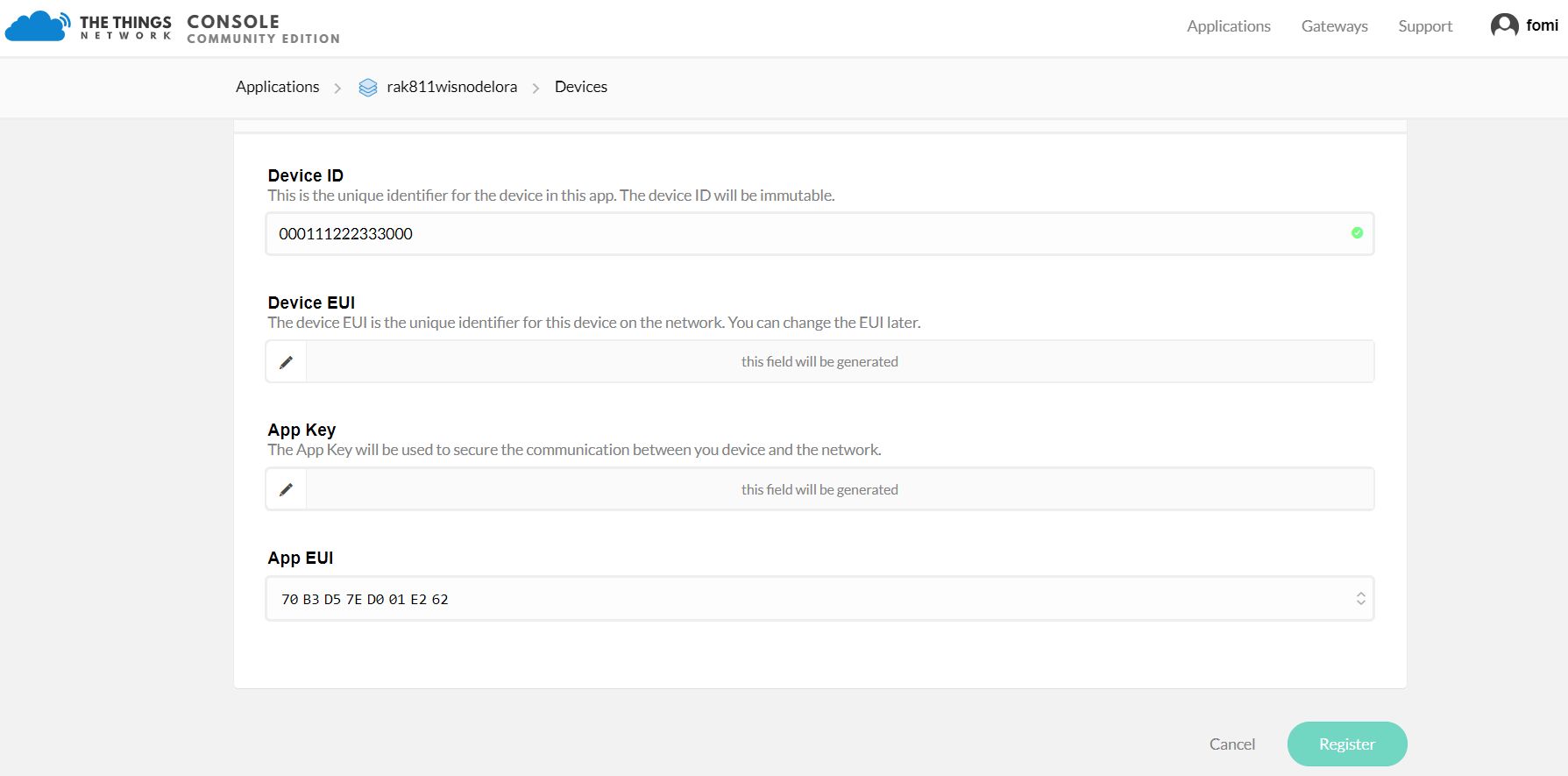

Figure 3: TTN Parameters

  • Then press the “Add application” button at the bottom of this page, and you can see the following page:

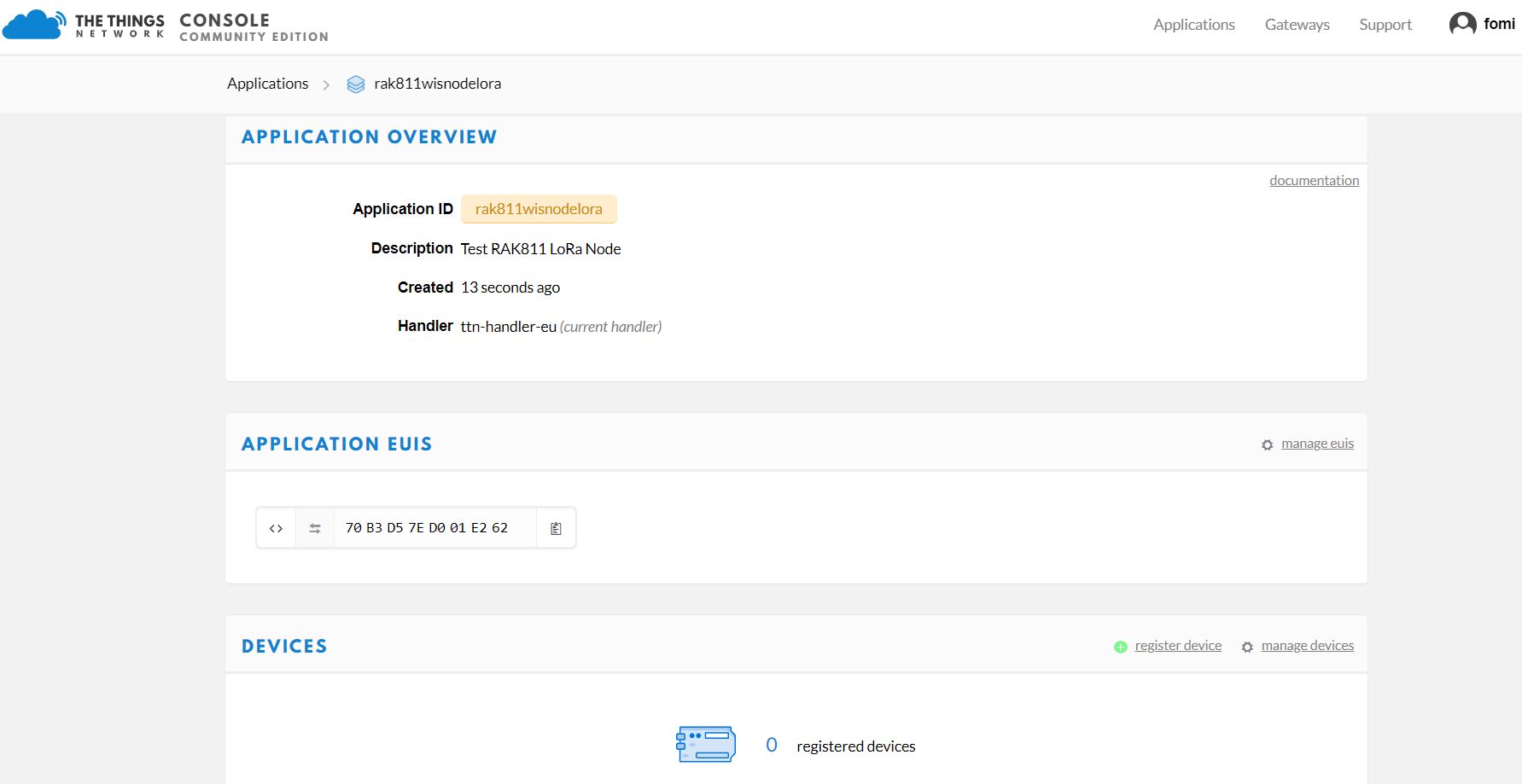

Figure 4: TTN Add Application

  • At the middle of this page, you can find the box named “DEVICES”. Then, click “Register Device”.

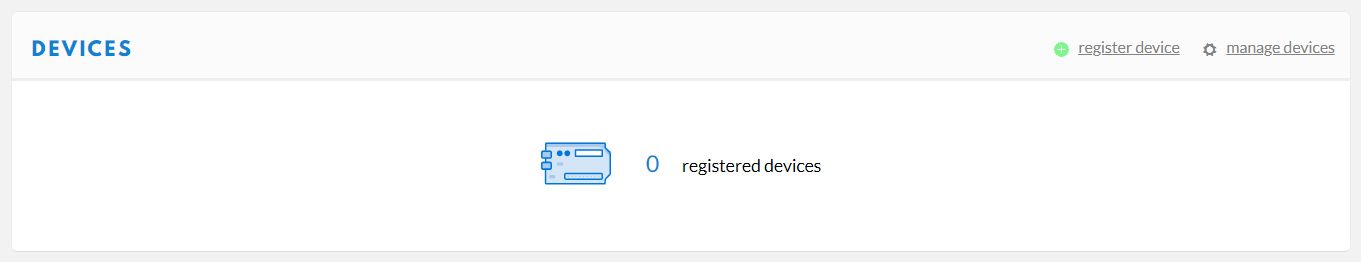

Figure 5: TTN Add Device

  • Fill in the “Device ID” . Click the icon in the “Device EUI”, then a code is generated automatically. Then press the “Register” button at the bottom of this page to finish.

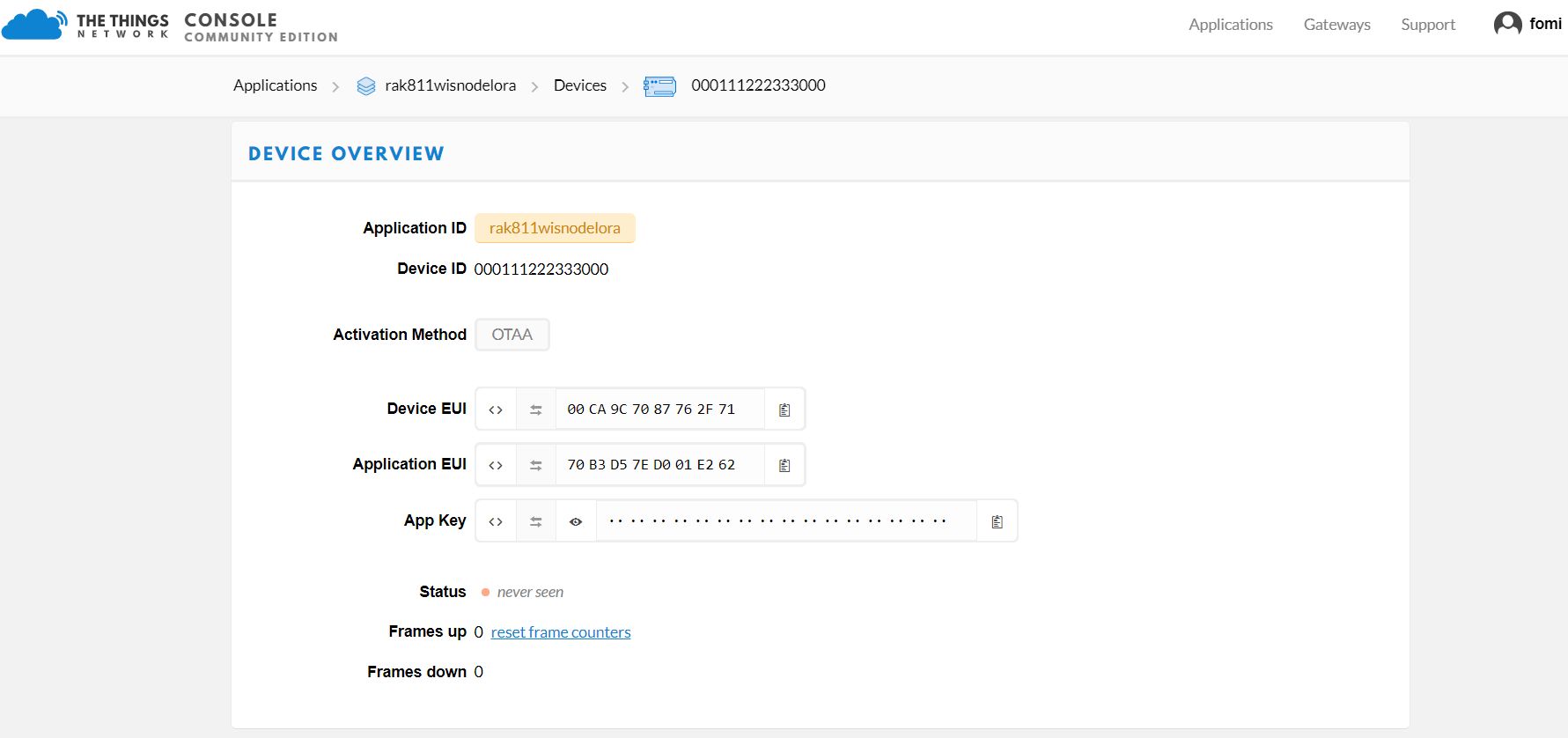

Figure 6: TTN DeviceEUI

When you connect the RAK7204 to a LoRa Gateway, we need some amount of security and trust to be established amongst them. There are two connection modes, and we distinguish between them using the criteria of security and ease of implementation. These are the Over-The-Air Activation (OTAA) and Activation By Personalization (ABP).

Join in OTAA Mode #

From the previous section, it can be seen that the default activation for TTN is OTAA. In joining OTAA, these three parameters are necessary: Device EUI, Application EUI and App Key.

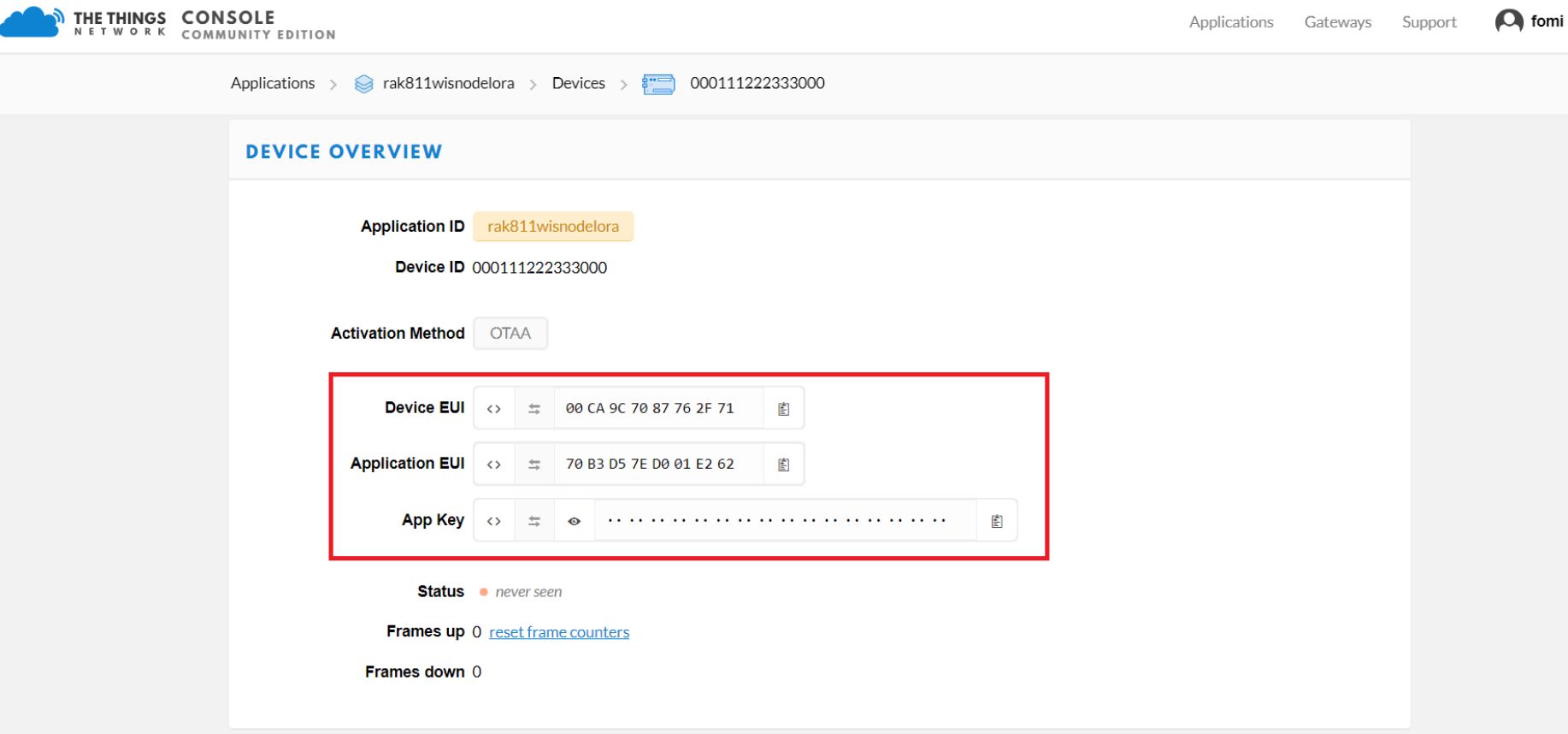

Figure 7: OOTA Parameters

Note: The default LoRa work mode is LoRaWAN 1.0.2, while the default LoRa join mode is OOTA, and the default LoRa Class is A.

  • If the join mode is not in OTAA, just set the LoRa join mode to OTAA and LoRa class to Class A. Open your RAK7204 Firmware and type the following commands.

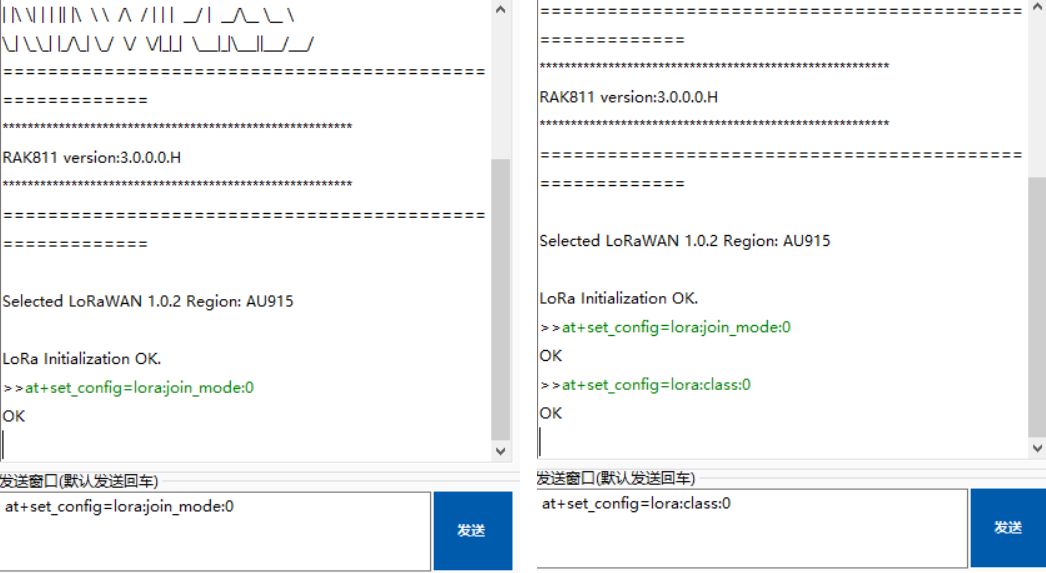

Figure 8: OOTA Mode and Class

  • Type the following AT command to set the: Frequency/Region to EU868, Device EUI, Application EUI and Application Key:

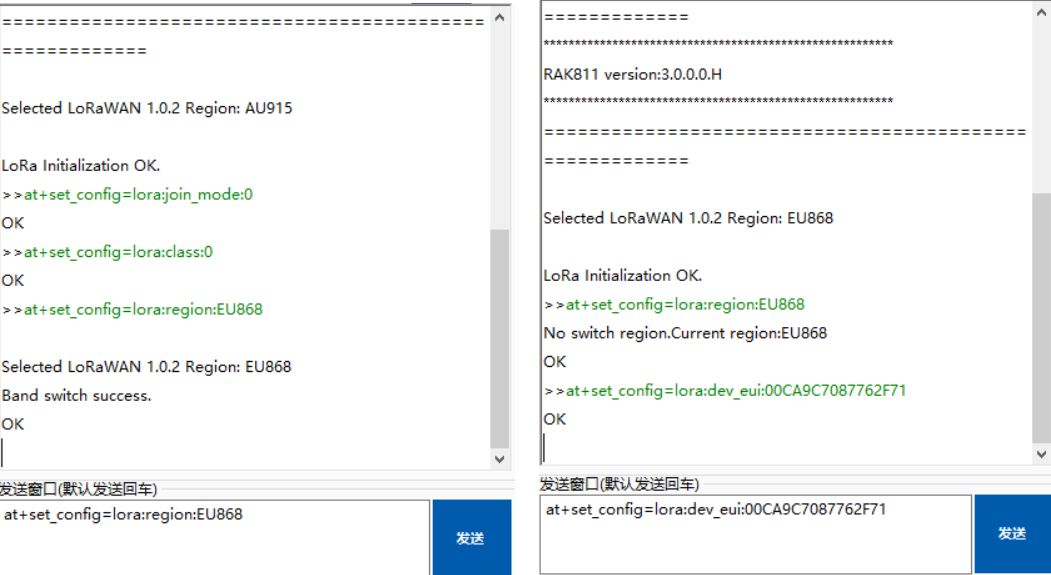

Figure 9: OOTA Frequency and DeviceEUI

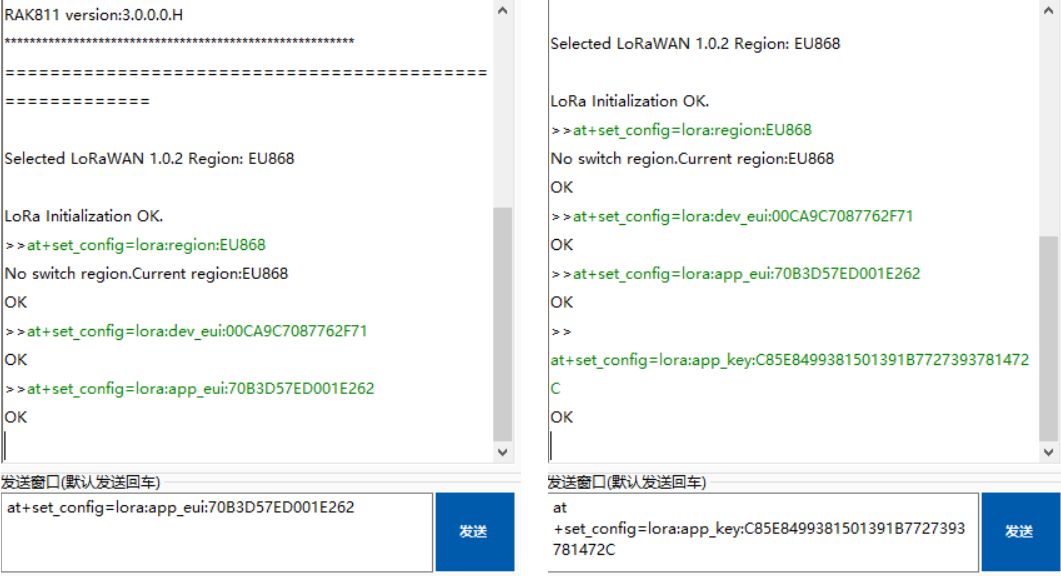

Figure 10: OOTA Appkey and AppEUI

  • Then, join in OTAA mode.

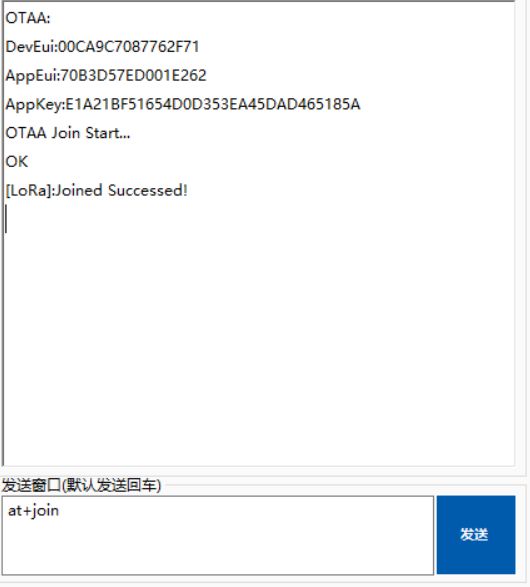

Figure 11: Join OOTA

  • Joined Successfully! Now, try sending data from our RAK7204 LoRa Environmental Sensor to TTN.

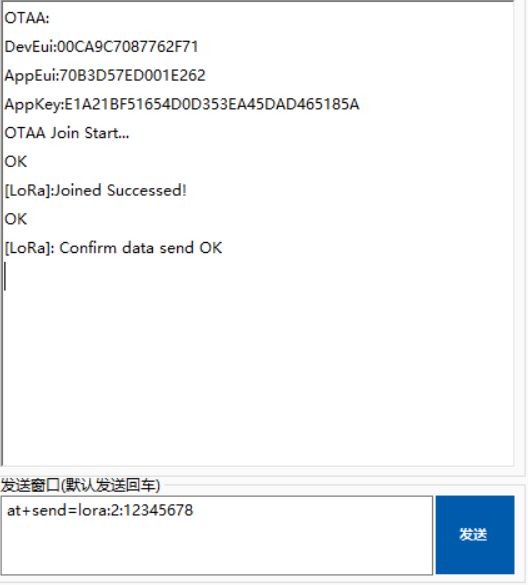

Figure 12: OOTA Sending Data

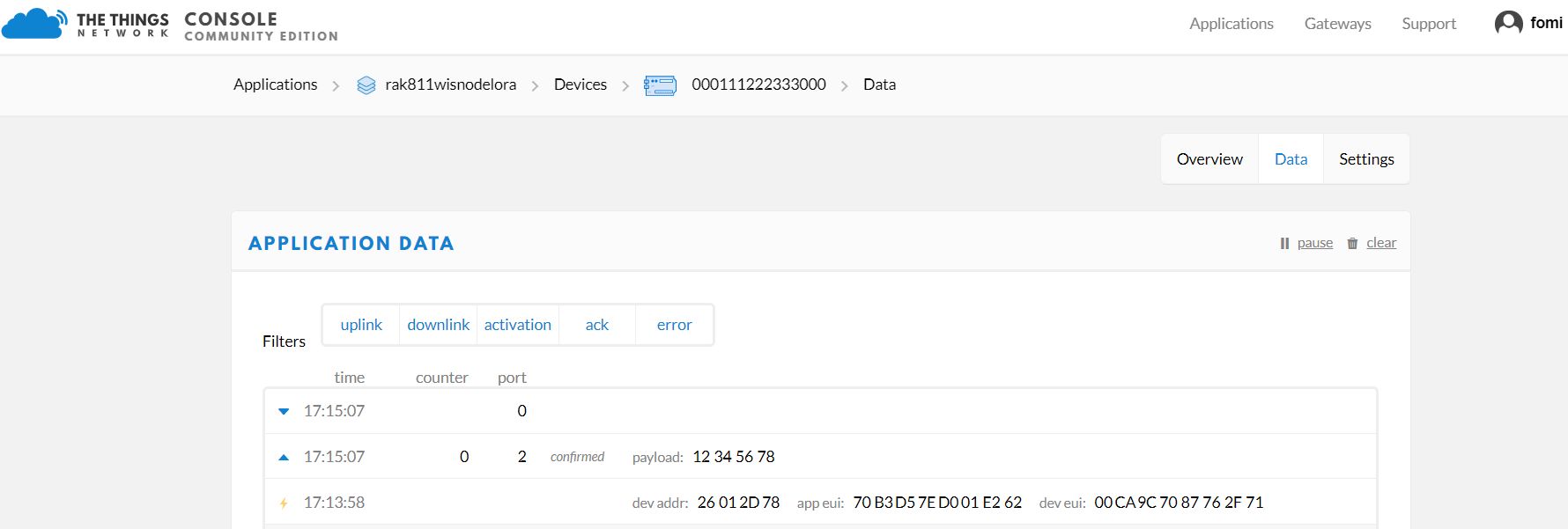

  • We can view the data sent from the RAK7204 LoRa Environmental Sensor to our The Things Network Application Data

Figure 13: OOTA Data Viewing

Join in ABP Mode #

To join the ABP mode, go to device settings and switch the activation method to ABP.

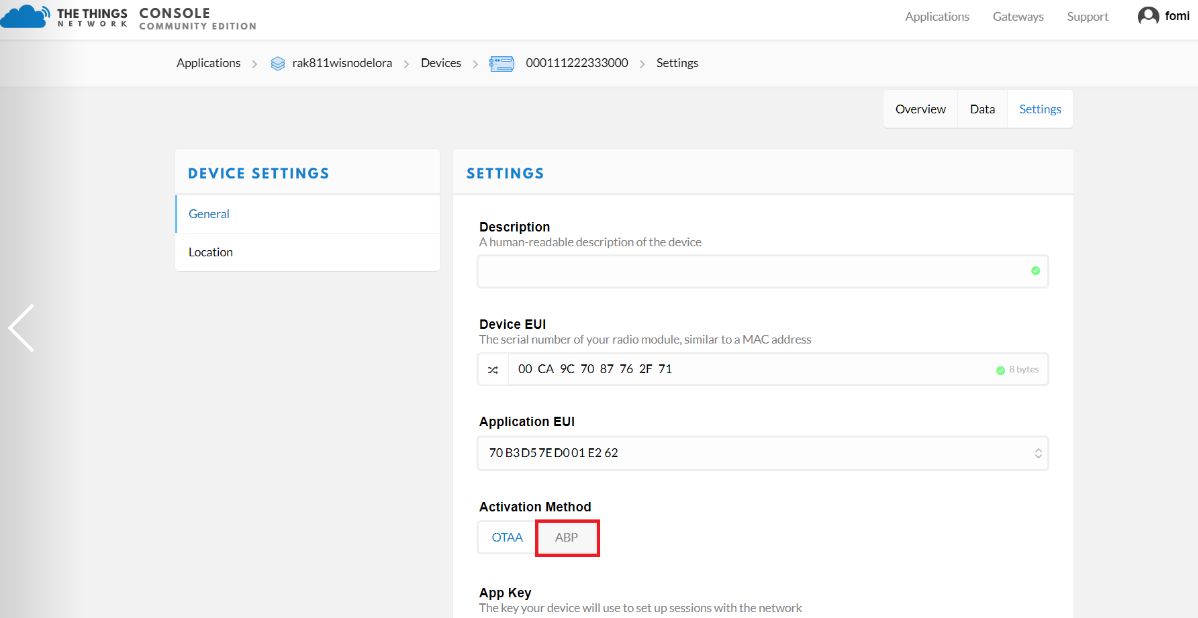

Figure 14: ABP Switching

  • Set the Device Address, Network Session Key and App Session Key. These three parameters will be used on RAK7204 LoRa Environmental Sensor:

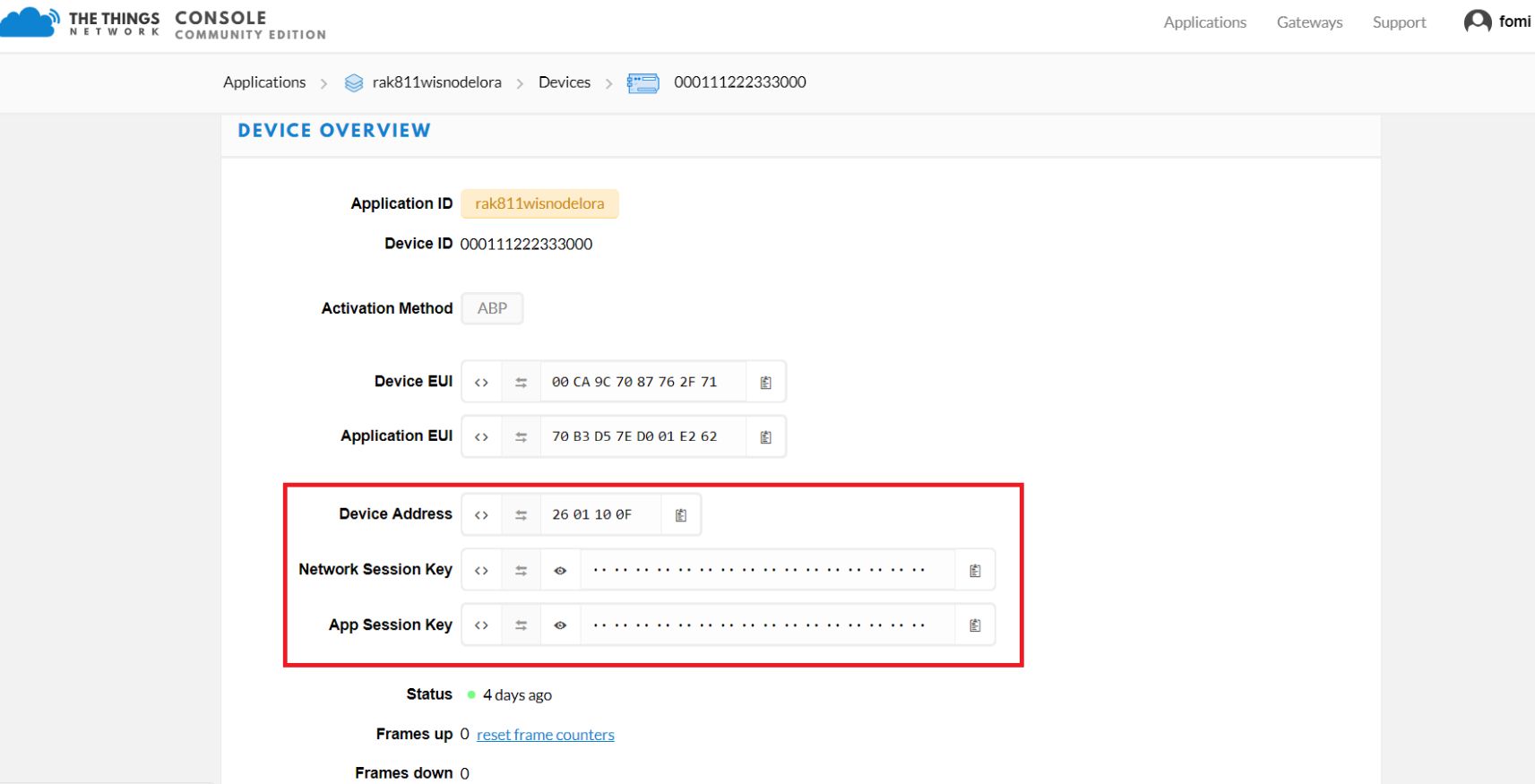

Figure 15: ABP Parameters

OK! Now, let’s join in ABP mode and set EU868 frequency as an example.

  • If the join mode is not in ABP, just set the LoRa join mode to ABP and LoRa class to Class A. Open your RAK7204 Firmware and type the following commands

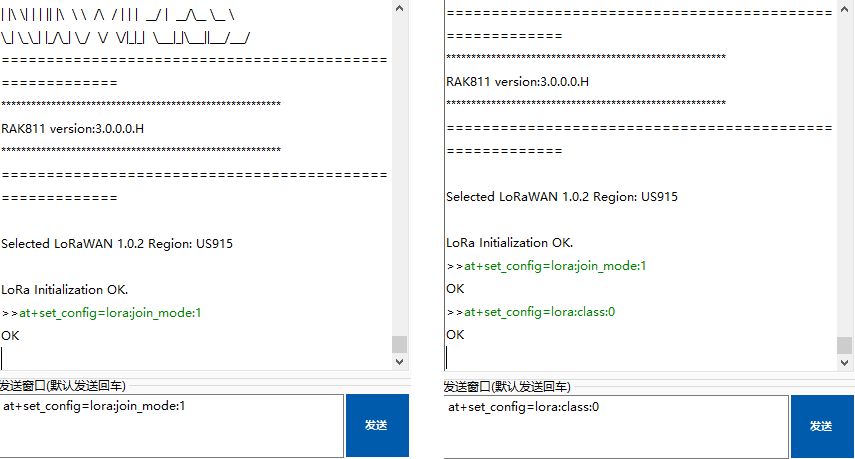

Figure 16: ABP Mode and Class

Type the following AT command to set the: Frequency/Region to EU868, Device Address, Network Session Key and App Session Key:

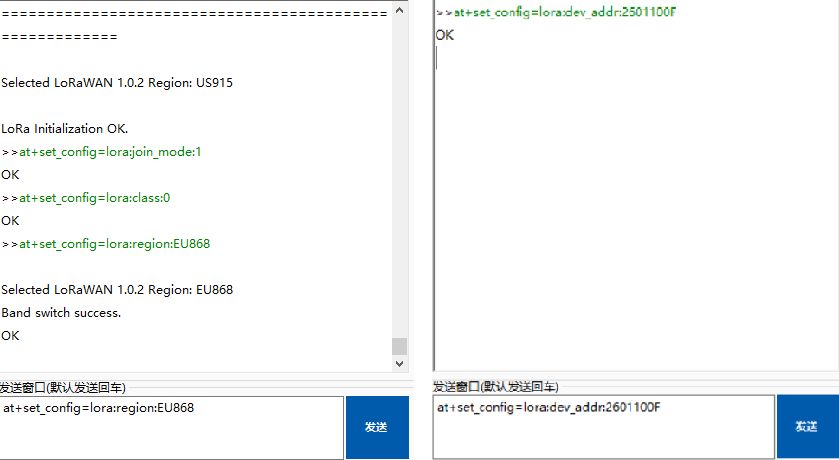

Figure 17: ABP Frequency and Device Address

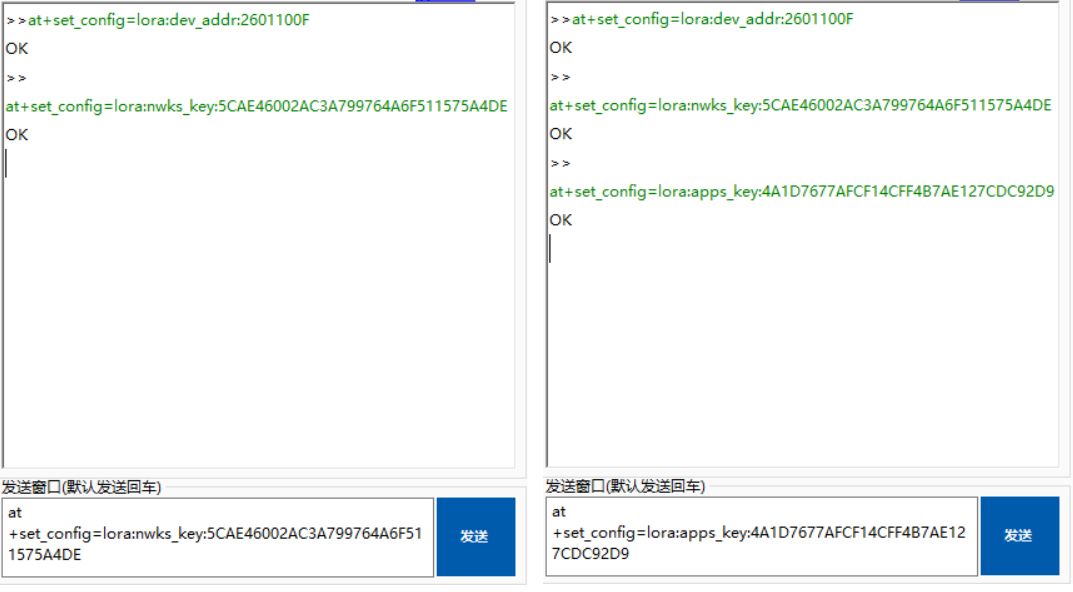

Figure 18: ABP Network and AppKey

  • Then, join in ABP mode.

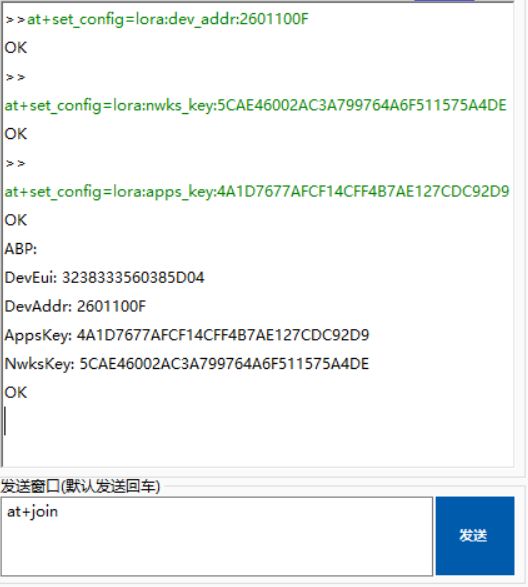

Figure 19: ABP Join

Note: Actually, it is not necessary to join in ABP mode. But, you still need to set this ATcommand to validate the parameters set for ABP Mode.

  • Joined Successfully. Now, try sending data from our RAK7204 LoRa Environmental Sensor to TTN.

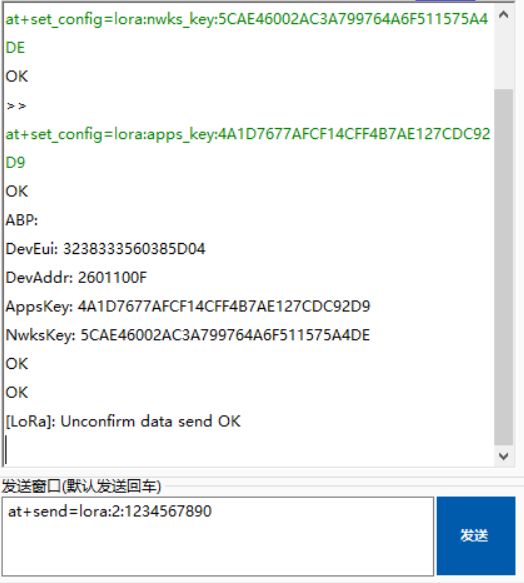

Figure 20: ABP Send Data

  • We can view the data sent from the RAK7204 LoRa Environmental Sensor to our The Things Network Application Data

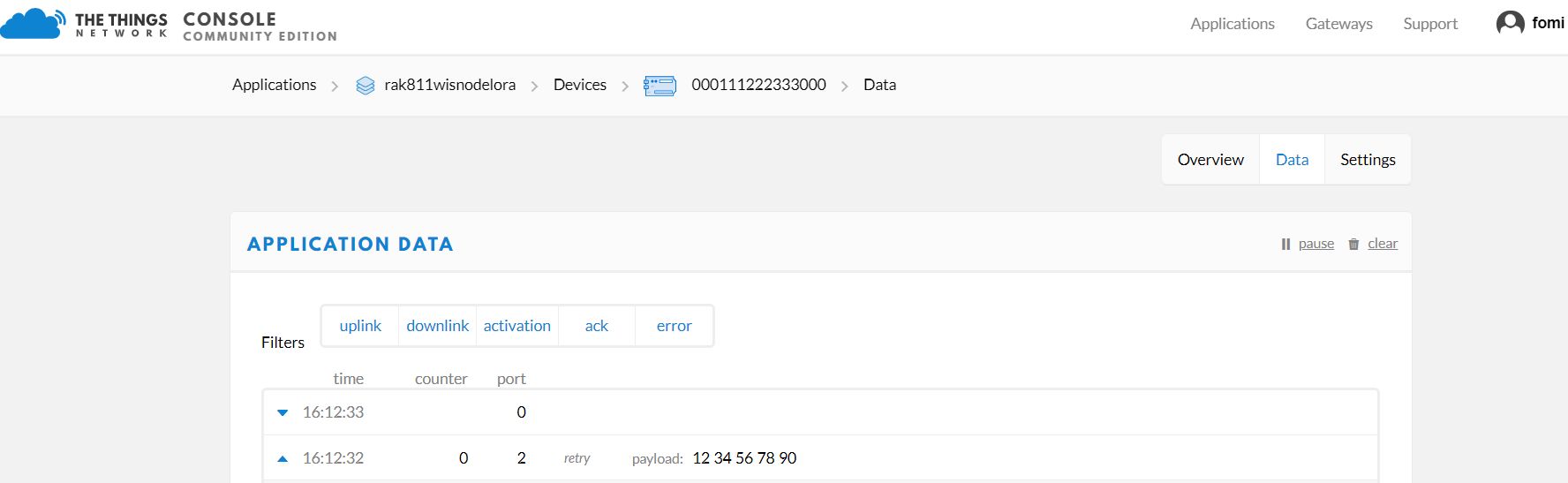

Figure 21: ABP View Data

Optional Configurations #

You can also try other configurations which is supported in RAK7204 LoRa Environmental Sensor. Click through the guides provided below to learn more. Enjoy!
