Arduino UNO + Dragino Lora Shield v1.4 can connect to TTN v2 but not on TTN v3 AU915

Hi,

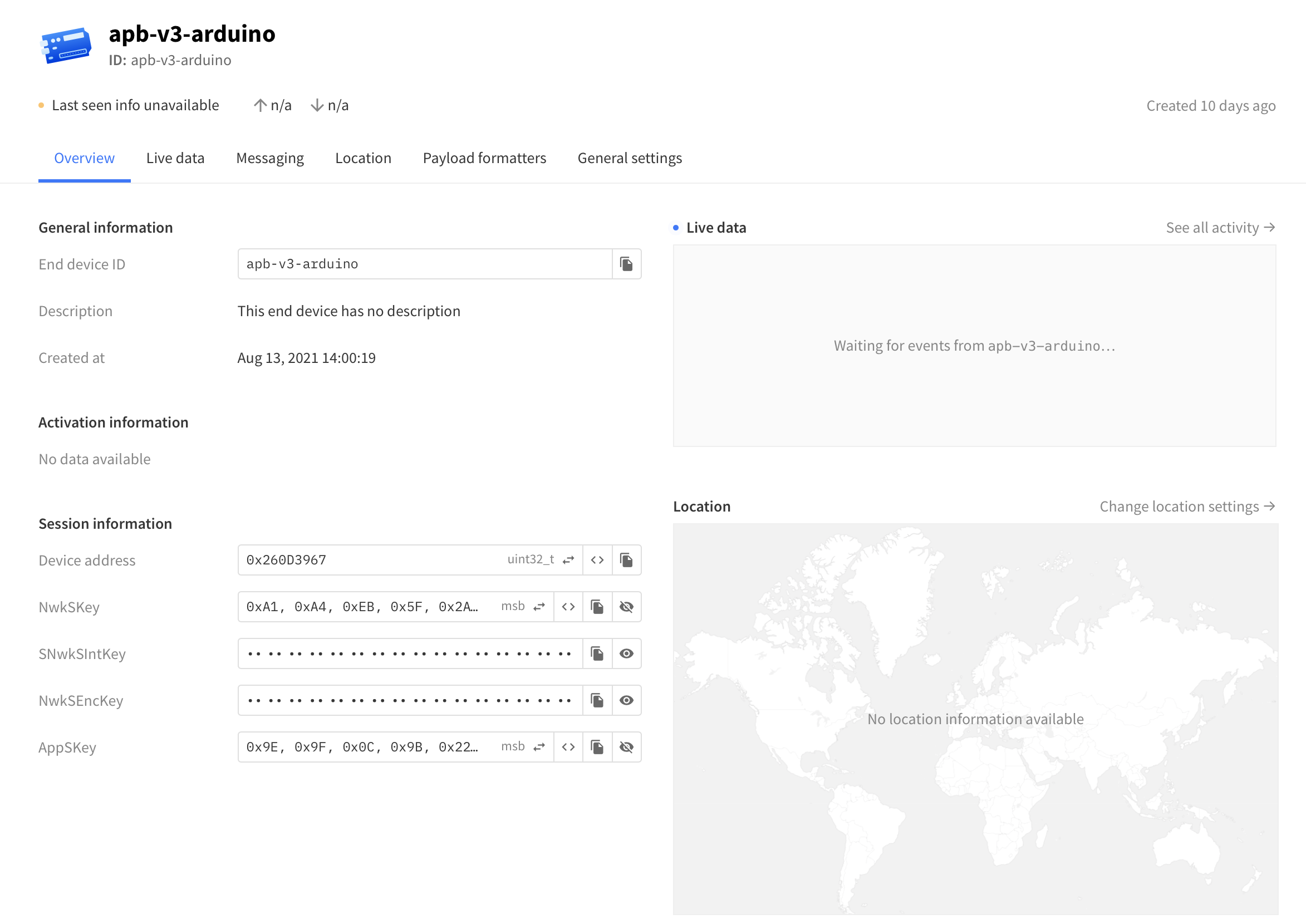

I’m trying to connect the arduino to TTN v3 via ABP on AU915. On TTN v2, both ABP and OTAA work fine. But since now, v2 is read only, I need to setup end device on TTN v3.

My hardware is:
Arduino UNO with Dragino Lora Shield v1.4 AU915

Steps I’ve taken,

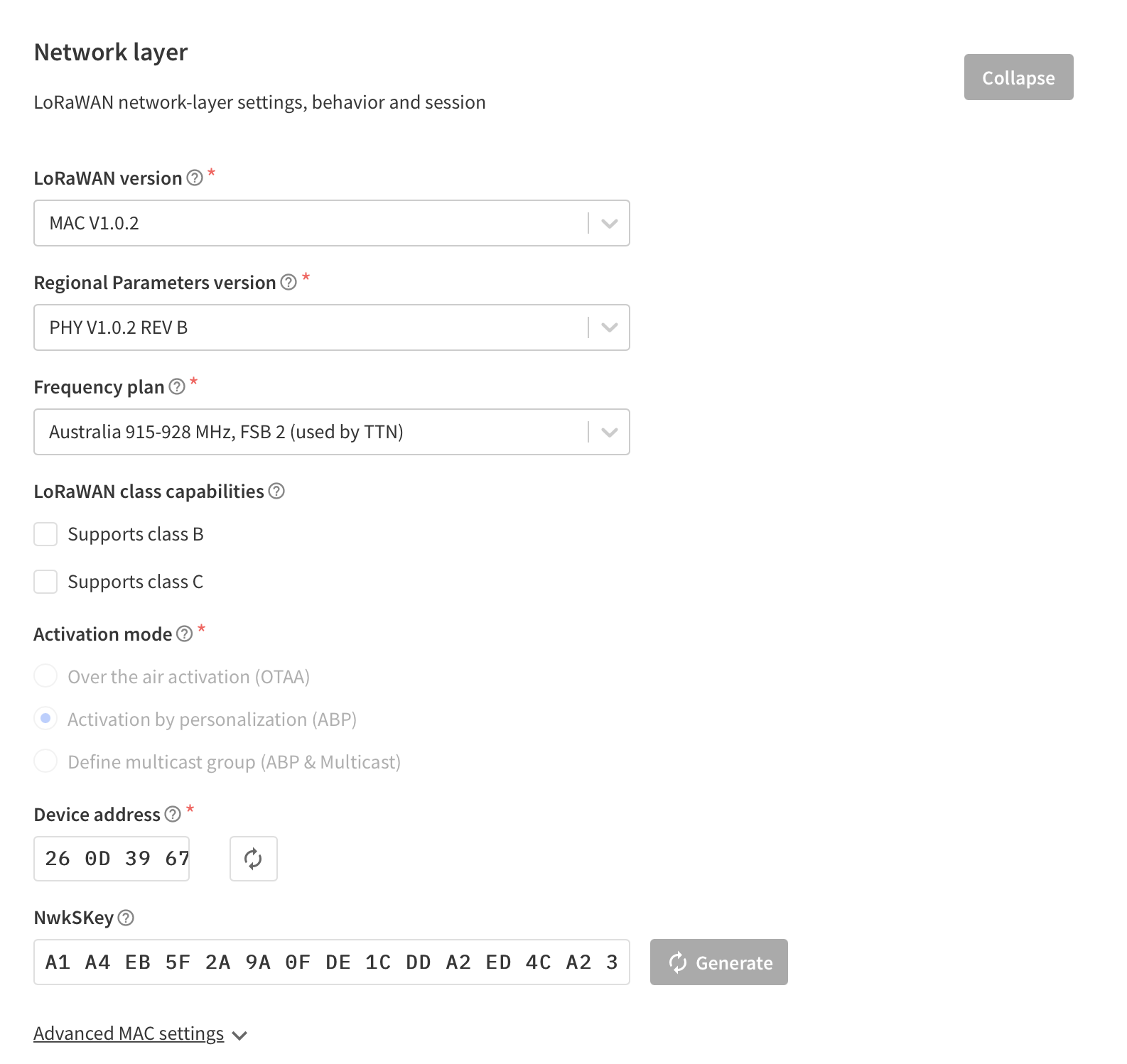

  • use LoraWAN version 1.0.2, 1.0.3

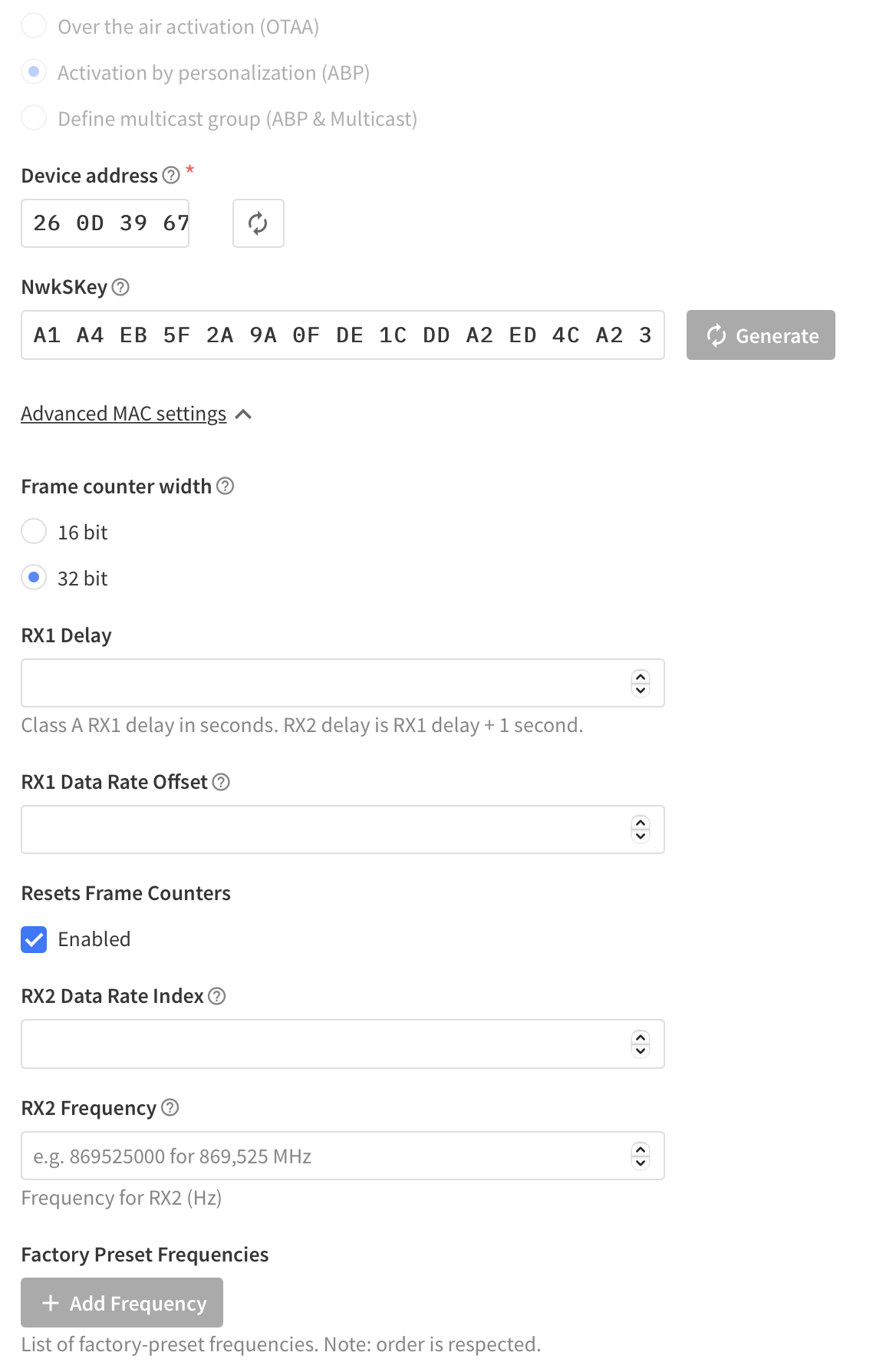

  • tick reset frame counter
  • add RX1 Delay 1s with 0 offset
  • RX2 data rate 8 with freq 923300000

But still, I couldn’t received the output in TTN.

The serial monitor seems fine.

Starting
09:54:15.994 -> 8615: EV_TXSTART
09:54:15.994 -> Packet queued for frequency (Hz): 917600000
09:54:18.091 -> 139843: EV_TXCOMPLETE (includes waiting for RX windows)
09:55:18.096 -> 3890317: EV_TXSTART
09:55:18.096 -> Packet queued for frequency (Hz): 917400000
09:55:22.040 -> 4021552: EV_TXCOMPLETE (includes waiting for RX windows)
09:56:20.219 -> 7772029: EV_TXSTART
09:56:20.256 -> Packet queued for frequency (Hz): 917800000
09:56:22.349 -> 7903267: EV_TXCOMPLETE (includes waiting for RX windows)

Also, I don’t have access to gateway log, so I cannot check anything gateway side.

I’m using MCCI LowaWAN LMIC 4.0.0 library (GitHub - mcci-catena/arduino-lmic: LoraWAN-MAC-in-C library, adapted to run under the Arduino envi), with setting as follow:

lmic_project_config.h

// project-specific definitions
//#define CFG_eu868 1
//#define CFG_us915 1
#define CFG_au915 1
//#define CFG_as923 1
// #define LMIC_COUNTRY_CODE LMIC_COUNTRY_CODE_JP	/* for as923-JP */
//#define CFG_kr920 1
//#define CFG_in866 1
#define CFG_sx1276_radio 1
//#define LMIC_USE_INTERRUPTS

#define LMIC_LORAWAN_SPEC_VERSION LMIC_LORAWAN_SPEC_VERSION_1_0_2
#define DISABLE_PING
#define DISABLE_BEACONS
#define LMIC_ENABLE_DeviceTimeReq 0

My Arduino sketch

/*******************************************************************************
 * Copyright (c) 2015 Thomas Telkamp and Matthijs Kooijman
 * Copyright (c) 2018 Terry Moore, MCCI
 *
 * Permission is hereby granted, free of charge, to anyone
 * obtaining a copy of this document and accompanying files,
 * to do whatever they want with them without any restriction,
 * including, but not limited to, copying, modification and redistribution.
 * NO WARRANTY OF ANY KIND IS PROVIDED.
 *
 * This example sends a valid LoRaWAN packet with payload "Hello,
 * world!", using frequency and encryption settings matching those of
 * the The Things Network.
 *
 * This uses ABP (Activation-by-personalisation), where a DevAddr and
 * Session keys are preconfigured (unlike OTAA, where a DevEUI and
 * application key is configured, while the DevAddr and session keys are
 * assigned/generated in the over-the-air-activation procedure).
 *
 * Note: LoRaWAN per sub-band duty-cycle limitation is enforced (1% in
 * g1, 0.1% in g2), but not the TTN fair usage policy (which is probably
 * violated by this sketch when left running for longer)!
 *
 * To use this sketch, first register your application and device with
 * the things network, to set or generate a DevAddr, NwkSKey and
 * AppSKey. Each device should have their own unique values for these
 * fields.
 *
 * Do not forget to define the radio type correctly in
 * arduino-lmic/project_config/lmic_project_config.h or from your BOARDS.txt.
 *
 *******************************************************************************/

 // References:
 // [feather] adafruit-feather-m0-radio-with-lora-module.pdf

#include <lmic.h>
#include <hal/hal.h>
#include <SPI.h>

//
// For normal use, we require that you edit the sketch to replace FILLMEIN
// with values assigned by the TTN console. However, for regression tests,
// we want to be able to compile these scripts. The regression tests define
// COMPILE_REGRESSION_TEST, and in that case we define FILLMEIN to a non-
// working but innocuous value.
//
#ifdef COMPILE_REGRESSION_TEST
# define FILLMEIN 0
#else
# warning "You must replace the values marked FILLMEIN with real values from the TTN control panel!"
# define FILLMEIN (#dont edit this, edit the lines that use FILLMEIN)
#endif

// LoRaWAN NwkSKey, network session key
// This should be in big-endian (aka msb).
static const PROGMEM u1_t NWKSKEY[16] = { 0xA1, 0xA4, 0xEB, 0x5F, 0x2A, 0x9A, 0x0F, 0xDE, 0x1C, 0xDD, 0xA2, 0xED, 0x4C, 0xA2, 0x30, 0x7B };

// LoRaWAN AppSKey, application session key
// This should also be in big-endian (aka msb).
static const u1_t PROGMEM APPSKEY[16] = { 0x9E, 0x9F, 0x0C, 0x9B, 0x22, 0xD0, 0x25, 0x48, 0x8F, 0x16, 0x6A, 0x5E, 0x8A, 0x88, 0xFA, 0x8D };

// LoRaWAN end-device address (DevAddr)
// See http://thethingsnetwork.org/wiki/AddressSpace
// The library converts the address to network byte order as needed, so this should be in big-endian (aka msb) too.
static const u4_t DEVADDR = 0x260D3967; // <-- Change this address for every node!

// These callbacks are only used in over-the-air activation, so they are
// left empty here (we cannot leave them out completely unless
// DISABLE_JOIN is set in arduino-lmic/project_config/lmic_project_config.h,
// otherwise the linker will complain).
void os_getArtEui (u1_t* buf) { }
void os_getDevEui (u1_t* buf) { }
void os_getDevKey (u1_t* buf) { }

static uint8_t mydata[] = "Hello, world!";
static osjob_t sendjob;

// Schedule TX every this many seconds (might become longer due to duty
// cycle limitations).
const unsigned TX_INTERVAL = 60;

// Pin mapping
const lmic_pinmap lmic_pins = {
    .nss = 10,
    .rxtx = LMIC_UNUSED_PIN,
    .rst = 9,
    .dio = {2, 6, 7},
};

void onEvent (ev_t ev) {
    Serial.print(os_getTime());
    Serial.print(": ");
    switch(ev) {
        case EV_SCAN_TIMEOUT:
            Serial.println(F("EV_SCAN_TIMEOUT"));
            break;
        case EV_BEACON_FOUND:
            Serial.println(F("EV_BEACON_FOUND"));
            break;
        case EV_BEACON_MISSED:
            Serial.println(F("EV_BEACON_MISSED"));
            break;
        case EV_BEACON_TRACKED:
            Serial.println(F("EV_BEACON_TRACKED"));
            break;
        case EV_JOINING:
            Serial.println(F("EV_JOINING"));
            break;
        case EV_JOINED:
            Serial.println(F("EV_JOINED"));
            break;
        /*
        || This event is defined but not used in the code. No
        || point in wasting codespace on it.
        ||
        || case EV_RFU1:
        ||     Serial.println(F("EV_RFU1"));
        ||     break;
        */
        case EV_JOIN_FAILED:
            Serial.println(F("EV_JOIN_FAILED"));
            break;
        case EV_REJOIN_FAILED:
            Serial.println(F("EV_REJOIN_FAILED"));
            break;
        case EV_TXCOMPLETE:
            Serial.println(F("EV_TXCOMPLETE (includes waiting for RX windows)"));
            if (LMIC.txrxFlags & TXRX_ACK)
              Serial.println(F("Received ack"));
            if (LMIC.dataLen) {
              Serial.println(F("Received "));
              Serial.println(LMIC.dataLen);
              Serial.println(F(" bytes of payload"));
            }
            // Schedule next transmission
            os_setTimedCallback(&sendjob, os_getTime()+sec2osticks(TX_INTERVAL), do_send);
            break;
        case EV_LOST_TSYNC:
            Serial.println(F("EV_LOST_TSYNC"));
            break;
        case EV_RESET:
            Serial.println(F("EV_RESET"));
            break;
        case EV_RXCOMPLETE:
            // data received in ping slot
            Serial.println(F("EV_RXCOMPLETE"));
            break;
        case EV_LINK_DEAD:
            Serial.println(F("EV_LINK_DEAD"));
            break;
        case EV_LINK_ALIVE:
            Serial.println(F("EV_LINK_ALIVE"));
            break;
        /*
        || This event is defined but not used in the code. No
        || point in wasting codespace on it.
        ||
        || case EV_SCAN_FOUND:
        ||    Serial.println(F("EV_SCAN_FOUND"));
        ||    break;
        */
        case EV_TXSTART:
            Serial.println(F("EV_TXSTART"));
            break;
        case EV_TXCANCELED:
            Serial.println(F("EV_TXCANCELED"));
            break;
        case EV_RXSTART:
            /* do not print anything -- it wrecks timing */
            break;
        case EV_JOIN_TXCOMPLETE:
            Serial.println(F("EV_JOIN_TXCOMPLETE: no JoinAccept"));
            break;
        default:
            Serial.print(F("Unknown event: "));
            Serial.println((unsigned) ev);
            break;
    }
}

void do_send(osjob_t* j){
    // Check if there is not a current TX/RX job running
    if (LMIC.opmode & OP_TXRXPEND) {
        Serial.println(F("OP_TXRXPEND, not sending"));
    } else {
        // Prepare upstream data transmission at the next possible time.
        LMIC_setTxData2(1, mydata, sizeof(mydata)-1, 0);
        Serial.print(F("Packet queued for frequency (Hz): "));
        Serial.println(LMIC.freq);
    }
    // Next TX is scheduled after TX_COMPLETE event.
}

void setup() {
//    pinMode(13, OUTPUT);
    while (!Serial); // wait for Serial to be initialized
    Serial.begin(115200);
    delay(100);     // per sample code on RF_95 test
    Serial.println(F("Starting"));

    #ifdef VCC_ENABLE
    // For Pinoccio Scout boards
    pinMode(VCC_ENABLE, OUTPUT);
    digitalWrite(VCC_ENABLE, HIGH);
    delay(1000);
    #endif

    // LMIC init
    os_init();
    // Reset the MAC state. Session and pending data transfers will be discarded.
    LMIC_reset();

    // Set static session parameters. Instead of dynamically establishing a session
    // by joining the network, precomputed session parameters are be provided.
    #ifdef PROGMEM
    // On AVR, these values are stored in flash and only copied to RAM
    // once. Copy them to a temporary buffer here, LMIC_setSession will
    // copy them into a buffer of its own again.
    uint8_t appskey[sizeof(APPSKEY)];
    uint8_t nwkskey[sizeof(NWKSKEY)];
    memcpy_P(appskey, APPSKEY, sizeof(APPSKEY));
    memcpy_P(nwkskey, NWKSKEY, sizeof(NWKSKEY));
    LMIC_setSession (0x13, DEVADDR, nwkskey, appskey);
    #else
    // If not running an AVR with PROGMEM, just use the arrays directly
    LMIC_setSession (0x13, DEVADDR, NWKSKEY, APPSKEY);
    #endif

    #if defined(CFG_eu868)
    // Set up the channels used by the Things Network, which corresponds
    // to the defaults of most gateways. Without this, only three base
    // channels from the LoRaWAN specification are used, which certainly
    // works, so it is good for debugging, but can overload those
    // frequencies, so be sure to configure the full frequency range of
    // your network here (unless your network autoconfigures them).
    // Setting up channels should happen after LMIC_setSession, as that
    // configures the minimal channel set. The LMIC doesn't let you change
    // the three basic settings, but we show them here.
    LMIC_setupChannel(0, 868100000, DR_RANGE_MAP(DR_SF12, DR_SF7),  BAND_CENTI);      // g-band
    LMIC_setupChannel(1, 868300000, DR_RANGE_MAP(DR_SF12, DR_SF7B), BAND_CENTI);      // g-band
    LMIC_setupChannel(2, 868500000, DR_RANGE_MAP(DR_SF12, DR_SF7),  BAND_CENTI);      // g-band
    LMIC_setupChannel(3, 867100000, DR_RANGE_MAP(DR_SF12, DR_SF7),  BAND_CENTI);      // g-band
    LMIC_setupChannel(4, 867300000, DR_RANGE_MAP(DR_SF12, DR_SF7),  BAND_CENTI);      // g-band
    LMIC_setupChannel(5, 867500000, DR_RANGE_MAP(DR_SF12, DR_SF7),  BAND_CENTI);      // g-band
    LMIC_setupChannel(6, 867700000, DR_RANGE_MAP(DR_SF12, DR_SF7),  BAND_CENTI);      // g-band
    LMIC_setupChannel(7, 867900000, DR_RANGE_MAP(DR_SF12, DR_SF7),  BAND_CENTI);      // g-band
    LMIC_setupChannel(8, 868800000, DR_RANGE_MAP(DR_FSK,  DR_FSK),  BAND_MILLI);      // g2-band
    // TTN defines an additional channel at 869.525Mhz using SF9 for class B
    // devices' ping slots. LMIC does not have an easy way to define set this
    // frequency and support for class B is spotty and untested, so this
    // frequency is not configured here.
    #elif defined(CFG_us915) || defined(CFG_au915)
    // NA-US and AU channels 0-71 are configured automatically
    // but only one group of 8 should (a subband) should be active
    // TTN recommends the second sub band, 1 in a zero based count.
    // https://github.com/TheThingsNetwork/gateway-conf/blob/master/US-global_conf.json
    LMIC_selectSubBand(1);
    #elif defined(CFG_as923)
    // Set up the channels used in your country. Only two are defined by default,
    // and they cannot be changed.  Use BAND_CENTI to indicate 1% duty cycle.
    // LMIC_setupChannel(0, 923200000, DR_RANGE_MAP(DR_SF12, DR_SF7),  BAND_CENTI);
    // LMIC_setupChannel(1, 923400000, DR_RANGE_MAP(DR_SF12, DR_SF7),  BAND_CENTI);

    // ... extra definitions for channels 2..n here
    #elif defined(CFG_kr920)
    // Set up the channels used in your country. Three are defined by default,
    // and they cannot be changed. Duty cycle doesn't matter, but is conventionally
    // BAND_MILLI.
    // LMIC_setupChannel(0, 922100000, DR_RANGE_MAP(DR_SF12, DR_SF7),  BAND_MILLI);
    // LMIC_setupChannel(1, 922300000, DR_RANGE_MAP(DR_SF12, DR_SF7),  BAND_MILLI);
    // LMIC_setupChannel(2, 922500000, DR_RANGE_MAP(DR_SF12, DR_SF7),  BAND_MILLI);

    // ... extra definitions for channels 3..n here.
    #elif defined(CFG_in866)
    // Set up the channels used in your country. Three are defined by default,
    // and they cannot be changed. Duty cycle doesn't matter, but is conventionally
    // BAND_MILLI.
    // LMIC_setupChannel(0, 865062500, DR_RANGE_MAP(DR_SF12, DR_SF7),  BAND_MILLI);
    // LMIC_setupChannel(1, 865402500, DR_RANGE_MAP(DR_SF12, DR_SF7),  BAND_MILLI);
    // LMIC_setupChannel(2, 865985000, DR_RANGE_MAP(DR_SF12, DR_SF7),  BAND_MILLI);

    // ... extra definitions for channels 3..n here.
    #else
    # error Region not supported
    #endif

    // Disable link check validation
    LMIC_setLinkCheckMode(0);

    // TTN uses SF9 for its RX2 window.
    LMIC.dn2Dr = DR_SF9;

    LMIC_setClockError(MAX_CLOCK_ERROR * 5 / 100);

    // Set data rate and transmit power for uplink
    LMIC_setDrTxpow(DR_SF7,14);

    // Start job
    do_send(&sendjob);
}

void loop() {
    unsigned long now;
    now = millis();
    if ((now & 512) != 0) {
      digitalWrite(13, HIGH);
    }
    else {
      digitalWrite(13, LOW);
    }

    os_runloop_once();

}

TTN v3 setting
Screen Shot 2021-08-23 at 8.57.50 am
Screen Shot 2021-08-23 at 8.58.24 am
Screen Shot 2021-08-23 at 8.58.46 am

hi, did you found any solution?

I’ve tested around different gateway and it works with the same configuration. Probably something wrong with first gateway I’ve tested with.
