Heltec CubeCell AB01 on TTN V3

End Devices (Nodes) Heltec CubeCell
1

My Heltec Cubecell AB01 boards work fine on TTN V2 ABP.

Now I want to test one on V3 but the information on the Heltec site is outdated, the instructions describe TTN V2. I also wonder if the example sketch ‘LoRaWan’ is still usable, ABP data is (also) defined and I want to use OTAA as recommended for TTN.

Does anyone have a sample sketch - or link - for the AB01 with TTN V3 and OTAA?

Heltec LoRaWan sketch: https://github.com/HelTecAutomation/CubeCell-Arduino/tree/master/libraries/LoRa/examples/LoRaWAN/LoRaWan

2

Your device code is the same - other than using credentials from V3 console.

3

For OTAA, yes.

ABP implementations have to have their downlink windows explicitly adjusted.

4

If I’m not mistaken, the demo sketch I mentioned always uses ABP and a first step would be to change that to OTAA.

In the sketch I find this:

// OTAA or ABP //
bool overTheAirActivation = LORAWAN_NETMODE;

That will have to do with that, but I found no further information about that.

5

Your right, plus you change the TTN credentials that you get from your device in V3 console.

For OTAA you will need to set appEui, devEui, and appKey - there is lots of info on the forum re this, plus lots of help on the Heltec one too.

LORAWAN_NETMODE is defined normally in platformio.ini (for vscode) or it pulled via the Arduino IDE settings.

6

Thanks JD.

  1. I don’t use Platformio.io so I wonder how to force OTAA
  2. No problem to set appEUI and so, I know how to do that
7

Just change to >> bool overTheAirActivation = OTAA;

That should override everything anyway,

If you are using the Arduino coding app then the drop down config menu they use will have an ABP/OTAA option somewhere.

1 Like
8

If only everything were so easy :wink: Thanks!

9

I am having a great deal of difficulty getting devices, Heltec CubeCell HTCC AB01 for example, connected to TTN.

My Gateway (LPS8) is registered and shows activity:


and the CubeCell device I have registered under an Application is attempting to Join as far as I can tell. However, the device is reporting that the Join is failing and the led on the device goes through the sequence Blue, Green, then Red. At no time to I get the device joined.

I am using the repo https://github.com/HelTecAutomation/Heltec_ESP32 and followed the instructions for both the Boards Manager and manual install of the libraries in a Windows environment here - https://github.com/HelTecAutomation/CubeCell-Arduino/blob/master/InstallGuide/windows.md

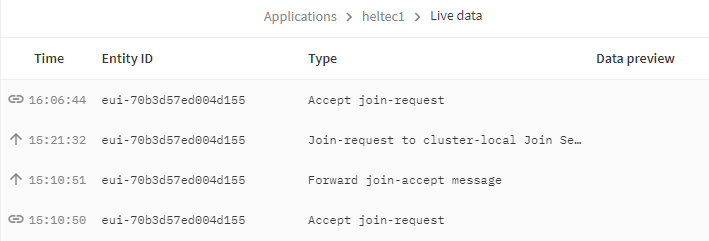

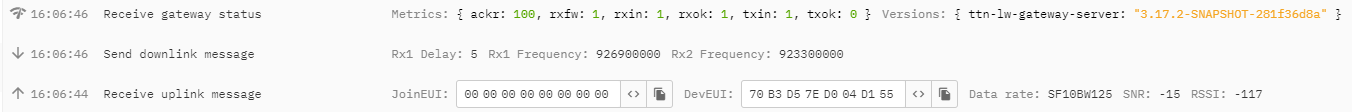

Device Live Data is:

Not sure why this is being so difficult.

10

It’s not, LoRaWAN isn’t easy. Most of LoRaWAN is non-trivial so best reset you expectations of what is easy and what isn’t - dealing with teenagers isn’t easy - LoRaWAN is by comparison - but negotiating with gravity is very easy - you don’t.

  1. You clearly aren’t on ABP as you and the logs talk about joining - so you are on actually using OTAA - a critical difference. Best you learn LoRaWAN basics before you lose days of your life: https://www.thethingsnetwork.org/docs/lorawan/
  2. Most LoRaWAN implementations aren’t able to cope with the recommended all zeros’ JoinEUI for OTAA for reasons we can’t solve right now - generate a App/JoinEUI here: https://descartes.co.uk/CreateEUIKey.html
1 Like
