Node based on Raspberry?


#61

link isnt broken, it was correct at the time or writing a year ago. TTN urls have changed and that has made it invalid. The page is still there on a new url https://www.thethingsnetwork.org/community/thatcham/post/pi-zero-node


(Remko) #63

Hi, I am currently in the same position where my program is giving: EV_JOINING. Is there anyon who got any progress?
Cu, Remko.


#64

@pe1mew Just double check your appKey, appEui, and devEui and make sure that your appEUI is reverse ordered :slight_smile:


(Remko) #65

Hi @cambierr, that is in the right order.


#66

Can you double check that devEUI, appEUI, and appKEy shown just before EV_JOINING are the same as the one shown in your TTN console ? I just tested with a clean PI2 + RFM95W and I got no problems


(Marcell Marjee) #67

HI @ernestopace

I hope you can help me out with the pinouts.
My radio is a InAir9B and I have connected it up like this:

9B -> pi (Pin#)
-----------------
SI -> MOSI (#19)
SO -> MISO (#21)
CK -> SCLK (#23)
CS -> GPIO6 (#22)
RT -> GPIO0(#11)
DO ->
D1 ->
D2 ->
D3 ->

How does the above relate to:

// Pin mapping
lmic_pinmap pins = {
  .nss = 6,
  .rxtx = UNUSED_PIN, // Not connected on RFM92/RFM95
  .rst = 0,  // Needed on RFM92/RFM95
  .dio = {7,4,5}
};

When I run TTN sample: ( Comments?)

[1b5e] (1489220428) Sat Mar 11 08:20:28 2017
[63607] (1489220448) Sat Mar 11 08:20:48 2017
OP_TXRXPEND, not sending[c5086] (1489220468) Sat Mar 11 08:21:08 2017
OP_TXRXPEND, not sending[126b04] (1489220488) Sat Mar 11 08:21:28 2017
OP_TXRXPEND, not sending[188582] (1489220508) Sat Mar 11 08:21:48 2017
OP_TXRXPEND, not sending[1ea000] (1489220528) Sat Mar 11 08:22:08 2017

Thanks in advance.

Marcell


(Marcell Marjee) #68

I took a chance and connected the pinouts like this:

9B -> pi (Pin#)
-----------------
SI -> MOSI (#19)
SO -> MISO (#21)
CK -> SCLK (#23)
CS -> GPIO6 (#22)
RT -> GPIO0(#11)
DO -> GPIO7(#7) - amended
D1 -> GPIO4 (#16) - amended
D2 -> GPIO5 (318) - amended
D3 ->

This gave me this:

Event EV_TXCOMPLETE, time: 6
[62c72] (1489221370) Sat Mar 11 08:36:10 2017

Event EV_TXCOMPLETE, time: 25
[c470e] (1489221390) Sat Mar 11 08:36:30 2017

Event EV_TXCOMPLETE, time: 45
[1261ab] (1489221410) Sat Mar 11 08:36:50 2017

Guess I'm on the right track with the node.


#70

Hi

I get this error with Dragino LoRa/GPS Hat 1.1 and Raspberry 3:

OP_TXRXPEND, not sending4f984c Sun Mar 19 21:34:54 2017

or:

386a Sun Mar 19 21:36:55 2017

OhOh. Unknown interrupt flags for FSK
FAILURE
radio.c:630

Sometimes it sends one packet. What could be the solution?

Thank you


#71

Hi,

Is there a Dragino Lora/GPS Hat node code for raspberry with bcm2835 library and not with OTAA but ABP?

Thank you


(Tim427) #72

I'm facing the same issues as you describe.

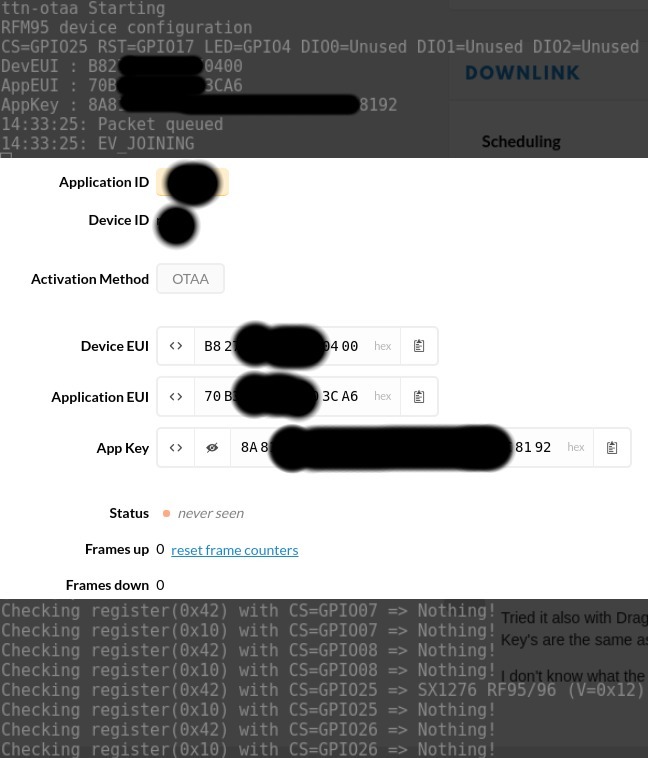

As you can see, all values corresponds with the TheThingsNetwork Console, but ttn-otaa hang on EV_JOINING.

Also the spi-scan reports correctly the Dragino GPS/Lora HAT

Anyone with some suggestions to try? Could this mean there isn't any Lora-gateway reporting to the TTN? According to the TTN-Map there should be multiple TTN-Gateways in range on our university campus.

Using a Raspberry Pi 3 Model B with the latest Raspbian.


(Philip V.) #73

It depends on how this gateways you see on the map are configured. As someone mentioned above, e.g. single channel gateways wouldn't might not work with OTAA.

Maybe just for testing you could try ABP as activation, just to ensure, that not your node is the problem.


(Tim427) #74

I also ordered a Arduino module from Dragino. Lets try if this will give better results. Otherwise I'll setup the Rpi + Dragino HAT as Single Channel gateway.

Keep you posted.

BTW, does somebody found a nice library/framework for the Dragino Rpi HAT?


(Wolfgang Klenk) #75

I implemented Hardware Abstraction Layer (HAL) code for LMIC 1.6 targeted to Raspberry Pi for Dragino GPS/Lora HAT.
Having that done, I now can use LMIC 1.6 and this HAL to write node applications on the RPi.

  • Joining the TTN using OTAA works using a fully-functional Kerlink IoT Gateway(LMIC examples/join)
  • Sending periodic sensor values to TTN works (LMIC examples/periodic)

I plan to provide the code for the HAL on github soon.


(Tim427) #76

Ok it turns out that the nearest gateway (400 meters away) has a really poor RSSI and SNR values...

I just ordered bigger antenna's (5dBi), because I'm unsure if the low link budget is due to my setup (Dragino Rpi HAT and Dragino Arduino Shiel with the same antenna) or it's due to the poor gateway setup at my university.


#77

Guys

As suggested @matthijs here increasing clock error for receive windows solved all my OTAA join with LMIC (on Arduino Zero) but may apply on RPI, worth trying this fix (here 1% error more) you can con even on 2% or 3%

LMIC_setClockError(MAX_CLOCK_ERROR * 1 / 100);

Works perfectly with Loraspi board with RFM95


(Wolfgang Klenk) #78

For users of a Dragino LoRa/GPS HAT (for Raspberry Pi) I have implemented a Hardware Abstraction Layer for the IBM LMIC 1.6 communication stack. This is similar to the solution of Ernst de Vreede, but as a difference it is based on IBM LMIC 1.6, which seems to be the most recent version of this communication stack. I tried not to touch the LMIC stack itself but only provide a HAL for RPi + LoRa HAT. I also tried not to put too much CPU load on the RPi when waiting for incoming messages.

Find the code in github at https://github.com/wklenk/lmic-rpi-lora-gps-hat

The following LMIC examples are working yet with this HAL and TTN:
* examples/hello - Not using radio at all
* examples/join - Join the TTN using OTAA (over the air activation)
* examples/periodic - Join and periodically send a sensor value to TTN.

I would appreciate to get feedback if this stack also works for you, and if it was easy to use this piece of software.

Note: I tested it with a Kerlink IoT Gateway. Single Channel Gateways won't work.


(Tim427) #79

I'll test this next week more extensively!

Quick look: https://github.com/wklenk/lmic-rpi-lora-gps-hat/blob/master/examples/ping/main.c still contains your keys/ids!


(Xenek) #80

You my friend are a legend for making it clear that it will only work with a proper gateway. I struggled for days to get nodes working with single channel gateways :slight_smile:


#81

I use the LMIC stack for some nodes, and it works great with my single channel gateway!


(Hendrik Linka) #82

Your SGC works great. Is there any chance that you port it to Pi 1/2/Zero?
