OTAA accept not received when in reach of multiple gateways

We will see … hopefully :slightly_smiling_face:

Trying to figure out, why things don’t work as expected, is a great way to learn and get more insights in my eyes. Learning by debugging :wink:

Perhaps I can employ this hint, but I’ll first try to go step by step. Thanks :slightly_smiling_face:

1 Like

Today, I did some more testing.

The t-beam now displays RSSI and SNR for all downlink messages. Unfortunately, I don’t know how accurate the readings from the HPD13A registers on this board are. I used the conversion from the SX1276 data-sheet, since it’s a clone and I did not find a separate data-sheet. This does not take board specifica into account. The LMIC lib itself seems to contain some hardcoded conversions for RSSI, which do match for this chip.

I also added some shielding to the board. With this, I was able to get some successful joins at locations, where it did never work before.

The MQTT messages on my mobile phone were of great help!

Tests:

  1. My TTIG off, so only the other GW was within reach. Joins were possible, but the success rate was 50% at best. It almost always received the join requests (visible in MQTT app log), but the device did not always receive the response. Even when I was only some hundred meters away, only about every second attempt succeeded.
    The RSSI/SNR values at the GW were always better than those displayed on my device. Some samples:
    location A: GW -108/8 vs. dev -112/4
    location B: GW -72/12 vs. dev -82/7.5
  2. My TTIG on, the device in the same house. I saw the join accepts coming from my GW. Joins were almost always successful, only sometimes the responses were not visible on my GW traffic log. RSSI/SNR about GW -68/10 vs. dev -80/9.
  3. I tested with a second T-Beam, same revision, also with shielding. The behavior and RSSI/SNR readings were not much different.

Looks like a mixture of multiple issues for me:

  1. My t-beam still has some problems with the other GW, even if RSSI and SNR are very high. Reason unknown, SW/HW/timing on device or other GW or …
  2. My t-beam has only rarely join problems with the TTIG, if it is close to it.
  3. The t-beam seems to have some issues on the receiving side, which can slightly be improved by additional shielding.
  4. The other GW seems to be more sensitive than my TTIG with the internal antenna, so the problems start not too far away from my TTIG.
  5. For tracking/mapping, I could simply switch to ABP and all problems will be gone because there will be no downlinks any more, then.
  6. When I find the time for it, I’d like to do some tests with an interrupt based lib variant. Timing looks like a likely cause for me.

I’ll keep you informed when I get more findings. :slight_smile:

1 Like

Were you able to determine if a join accept was generated? LMiC for example likes to randomly guess for a join nonce, and if it hits one that’s been used before, no accept will be generated until it increments to a not previously used value. Especially if your RNG is not very random, the more tests you run, the more likely it is that it will take some time to get to fresh values.

I’d like to do some tests with an interrupt based lib variant

It’s not entirely clear how that would help, unless you mean that you’d use a slightly less than one second hardware timer to enter receive mode the correct duration of time after transmitting.

Even if you are polling for the transmit complete, you should be able to poll rapidly enough to to notice it with low latency (just don’t do something like print the polled status - that would likely cost time)

2 Likes

Another thought/line of enquiry… what do you know about the remote GW? As has been suggested earlier timing can be an issue and if the remote GW is e.g. on a cellular backhaul it is poss that associated latency esp wrt 3G can be enough to push the system out on timing missing the window. That might explain why even relatively close to it & with reasonable Rossi/sir values you still hit & miss response. Can you contact the owner & enquire? Knowing the gw - type/model/packet forwarder may help also as there is some variability in speed of operation between systems…

2 Likes

In case it helps, @Grillbaer: if you see TTN giving you a DevAddr, then you know it has accepted the Join Request, but if you don’t see a DevAddr, then that might not indicate much. (Like in TTN Console, a Join Request in an application’s Data page indicates such, while the same yellow icon in a gateway’s Traffic page does not give you any clue.) I don’t know what MQTT gives you, but the DevAddr will certainly change in TTN Console, if accepted.

On the other hand: I guess there’s no reason to think it’s not accepted, while being accepted does not guarantee a Join Accept was generated. (Like I assume that if a gateway is exceeding its duty cycle, the Join Request might be accepted, and a new DevAddr might be assigned, but no Join Accept might be generated.)

And again just in case it helps: the popovers on https://www.thethingsnetwork.org/map might reveal just enough information:

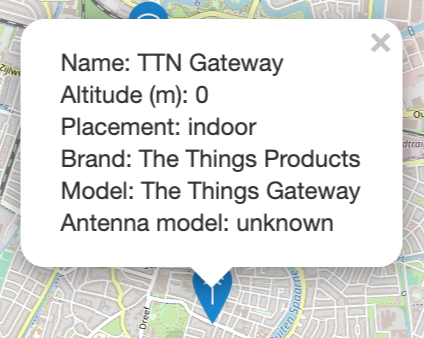

Popover on global map

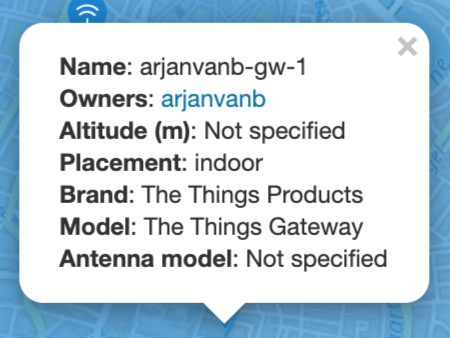

The popover on a community’s page shows different details (like the gateway ID instead of its name), possibly including a link to its owner:

Popover on community map

See also How to contact a gateway owner?

1 Like

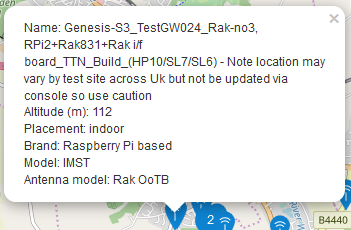

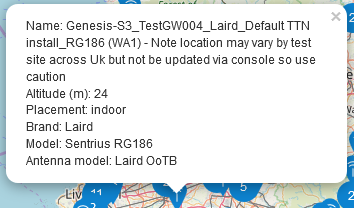

I’ve seen 2 problems arise - the 1st is if people deploying GW’s dont allow the data to be shown (the tick boxes on GW settings -> privacy page), and after last major overhaul of the map presentation about a year ago the main map shows less data (e.g. no owner shown) with a move to the community page to access the extra info - unfortunately not every GW is in an area that is part of a community…if not in a community the only way to get that info is to reach out to the TTN Core team and request it or if privacy settings dont allow disclosure ask them to reach out to the owner and ask the owner to contact you - not very satisfactory for a ‘community’ effort :frowning:

I would ask all owners to atleast check all the privacy tick boxes to allow basic data presentation… I do that for all mine, and try to include some basic info about config/location :slight_smile:


1 Like

I saw this exactly one time in the app log, but don’t know from which GW. There was a "error": "Activation DevNonce not valid: already used" in the response JSON. I did not see this in any of the other failed attempts. Is this error generated by the GW or the network, i.e. will it always be visible in the app log, independently of the GW?

I didn’t dive deep enough into that yet, but some hints on timing in the doc made me at least think, that it might improve some timing issues:

… ensure that you call os_runloop_once() “often enough” …

… LMIC_setClockError(MAX_CLOCK_ERROR * 20 / 100); …

Controlling use of interrupts

#define LMIC_USE_INTERRUPTS

If defined, configures the library to use interrupts for detecting events from the transceiver. If left undefined, the library will poll for events from the transceiver. See Timing for more info.

The current event callbacks or other actions (GPS location received, next message queued) might also take too long. I have to check whether the OLED might be updated when a receive window is due. From other projects I know that this can take up to nearly 100 ms for the SSD1306-I2C-128x64 display. And there is quite a lot of printing in the current code.

Also, I’ve set the clock error to 5/100. Perhaps setting it higher might already solve some problems. Another point for my todo list :wink:

I have to re-check that detail, but the join-JSONs on MQTT looked quite complete except for the one case, where there was a nonce error message.

The GW states “Raspberry Pi based” model “IMST”. It’s very likely not 3G connected, since we have quite good internet access here, even in my village (thanks to M-Net), and this GW is located only a few 100 meters from the next Telekom switch station, which (indirectly) provides also my telephone and internet access.

First, I want to check out the possible timing issues on my device side more deeply, but I’m also considering to contact him. His GW log would probably help very much, much less guessing then! Might also be some fun to talk to somebody with this rare hobby so nearby :slight_smile:

Thanks again for your almost tutorial-like hints @arjanvanb!

Thank you for that hint, @Jeff-UK, I just checked my GW settings. The other GW’s data is also public, so not problem to contact the owner.

Then I’d assume that you’ll get all errors, including Activation not valid - no gateways available when applicable.

Yet another aside: if your tests are getting you a lot of “Activation DevNonce not valid: already used” then this might help:

1 Like

This afternoon, I tried more joins near the other GW, this time with 4x increased setClockError to 20/100 and most display output removed for reduced timing impact. However, I got similar results as before:

The device received 7 out of 12 join accepts, still near 50%.
Each join shows a "dev_addr":"26012xxx" in the MQTT JSON independently of the reception on the device, so should have been accepted.
Sequence: success=1, fail=0: 0-1-1-1-1-1-1-0-0-0-0-1

Part of the sequence in the MQTT log t-beam-ttn-tracker/devices/t-beam-v1-0/events/activations:

1 - fail

{
“app_eui”: “70B3D57ED00253ED”,
“dev_eui”: “003BA610906EFAF9”,
“dev_addr”: “2601262F”,
“metadata”: {
“time”: “2019-12-01T14:03:51.549136308Z”,
“frequency”: 868.1,
“modulation”: “LORA”,
“data_rate”: “SF9BW125”,
“airtime”: 103424000,
“coding_rate”: “4/5”,
“gateways”: [
{
“gtw_id”: “eui-b827ebfffec2e7ee”,
“timestamp”: 1089661148,
“time”: “2019-12-01T14:03:51.517724Z”,
“channel”: 0,
“rssi”: -81,
“snr”: 12.2,
“rf_chain”: 1
}
]
}
}

2 - success

{
“app_eui”: “70B3D57ED00253ED”,
“dev_eui”: “003BA610906EFAF9”,
“dev_addr”: “260126BE”,
“metadata”: {
“time”: “2019-12-01T14:04:35.557524087Z”,
“frequency”: 868.1,
“modulation”: “LORA”,
“data_rate”: “SF9BW125”,
“airtime”: 103424000,
“coding_rate”: “4/5”,
“gateways”: [
{
“gtw_id”: “eui-b827ebfffec2e7ee”,
“timestamp”: 1133663988,
“time”: “2019-12-01T14:04:35.525371Z”,
“channel”: 0,
“rssi”: -82,
“snr”: 12,
“rf_chain”: 1
}
]
}
}

3 - success

{
“app_eui”: “70B3D57ED00253ED”,
“dev_eui”: “003BA610906EFAF9”,
“dev_addr”: “260127AD”,
“metadata”: {
“time”: “2019-12-01T14:05:36.551851603Z”,
“frequency”: 868.5,
“modulation”: “LORA”,
“data_rate”: “SF9BW125”,
“airtime”: 103424000,
“coding_rate”: “4/5”,
“gateways”: [
{
“gtw_id”: “eui-b827ebfffec2e7ee”,
“timestamp”: 1194665388,
“time”: “2019-12-01T14:05:36.520015Z”,
“channel”: 2,
“rssi”: -77,
“snr”: 8.5,
“rf_chain”: 1
}
]
}
}

7 - success

{
“app_eui”: “70B3D57ED00253ED”,
“dev_eui”: “003BA610906EFAF9”,
“dev_addr”: “26012E72”,
“metadata”: {
“time”: “2019-12-01T14:07:41.563902507Z”,
“frequency”: 868.1,
“modulation”: “LORA”,
“data_rate”: “SF9BW125”,
“airtime”: 103424000,
“coding_rate”: “4/5”,
“gateways”: [
{
“gtw_id”: “eui-b827ebfffec2e7ee”,
“timestamp”: 1319672868,
“time”: “2019-12-01T14:07:41.53138Z”,
“channel”: 0,
“rssi”: -78,
“snr”: 11.8,
“rf_chain”: 1
}
]
}
}

8 - fail

{
“app_eui”: “70B3D57ED00253ED”,
“dev_eui”: “003BA610906EFAF9”,
“dev_addr”: “26012F80”,
“metadata”: {
“time”: “2019-12-01T14:08:12.551790784Z”,
“frequency”: 868.1,
“modulation”: “LORA”,
“data_rate”: “SF9BW125”,
“airtime”: 103424000,
“coding_rate”: “4/5”,
“gateways”: [
{
“gtw_id”: “eui-b827ebfffec2e7ee”,
“timestamp”: 1350669204,
“time”: “2019-12-01T14:08:12.523497Z”,
“channel”: 0,
“rssi”: -79,
“snr”: 12,
“rf_chain”: 1
}
]
}
}

9 - fail

{
“app_eui”: “70B3D57ED00253ED”,
“dev_eui”: “003BA610906EFAF9”,
“dev_addr”: “26012E8E”,
“metadata”: {
“time”: “2019-12-01T14:08:48.560601507Z”,
“frequency”: 868.1,
“modulation”: “LORA”,
“data_rate”: “SF9BW125”,
“airtime”: 103424000,
“coding_rate”: “4/5”,
“gateways”: [
{
“gtw_id”: “eui-b827ebfffec2e7ee”,
“timestamp”: 1386671228,
“time”: “2019-12-01T14:08:48.53013Z”,
“channel”: 0,
“rssi”: -79,
“snr”: 11.2,
“rf_chain”: 1
}
]
}
}

At this point, probably only the GW’s logs can really make things more clear.

Thanks again for all contributors’ awesome support in this thread :smiley:

1 Like

A post was merged into an existing topic: Downlink issue (observed at OTAA)

The LMIC.rssi and LMIC.snr values in the LMIC libraries (both LMIC-Arduino and MCCI LoRaWAN LMIC library) are incorrect as they do not implement the conversion algorithms specified in the datasheet. For the MCCI version a fix is planned to correct this.
So actually NONE of these LMIC libraries currently ‘do match the chip’ (neither SX1276 nor SX1272).

2 Likes
