Otaa join_accept message not received by seeeduino node


(Thilko) #1

Hi,
I am running a Raspberry Pi with IMST iC880A gateway with the poly_pkt_fwd package forwarder running. I try to get OTAA working but struggle with the join_accept messages. I can see that TTN is sending join_accept messages and some matching messages in the package forwarded (where I am not 100% sure if they belong to the join_accept, but it´s really likely) but the node does not seem to get it:

+RESET: OK
+ID: DevAddr, 00:0E:34:03
+ID: DevEui, 00:D8:C0:83:E7:A0:3F:70
+ID: AppEui, 70:B3:D5:7E:D0:00:ED:A2
+ID: DevEui, 00:D8:C0:83:E7:A0:3F:70
+ID: AppEui, 70:B3:D5:7E:+KEY: APPKEY 6A1CF732D2AE94C759F1B9F77530E861
+MODE: LWOTAA
+DR: EU868
+DR: DR0
+DR: EU868 DR0  SF12 BW125K
+CH: 0,868100000,DR0:DR5
+CH: 1,868300000,DR0:DR5
+CH: 2,868500000,DR0:DR5
+CH: 3,867100000,DR0:DR5
+CH: 4,867300000,DR0:DR5
+CH: 5,867500000,DR0:DR5
+CH: 6,867700000,DR0:DR5
+CH: 7,867900000,DR0:DR5
+RXWIN1: ERROR(-1)
+RXWIN2: 868300000,DR3
+ADR: OFF
+LW: DC, OFF, 0
+LW: JDC, OFF
+POWER: 2
+JOIN: Start
+JOIN: NORMAL
+JOIN: LoRaWAN modem is busy
+JOIN: Join failed
+JOIN: Done

Logs from the gateway:

##### 2018-05-15 21:36:50 GMT #####
### [UPSTREAM] ###
# RF packets received by concentrator: 0
# CRC_OK: 0.00%, CRC_FAIL: 0.00%, NO_CRC: 0.00%
# RF packets forwarded: 0 (0 bytes)
# PUSH_DATA datagrams sent: 1 (215 bytes)
# PUSH_DATA acknowledged: 0.00%
### [DOWNSTREAM] ###
# PULL_DATA sent: 3 (100.00% acknowledged)
# PULL_RESP(onse) datagrams received: 0 (0 bytes)
# RF packets sent to concentrator: 0 (0 bytes)
# TX errors: 0
### [GPS] ###
# Invalid gps time reference (age: 1526420210 sec)
# Manual GPS coordinates: latitude 53.85579, longitude 10.73494, altitude 0 m
##### END #####
INFO: [down] for server router.eu.thethings.network PULL_ACK received in 62 ms

The code I use on the node:

//#include "LoRaWan.h"
#include<LoRaWan.h>
#include "keys.h"

//#define FREQ_RX_WNDW_SCND_US  923.3
#define FREQ_RX_WNDW_SCND_EU  869.525
/*#define FREQ_RX_WNDW_SCND_AU  923.3
#define FREQ_RX_WNDW_SCND_CN  505.3
#define FREQ_RX_WNDW_SCND_KR  923.3
#define FREQ_RX_WNDW_SCND_IN  866.55
#define FREQ_RX_WNDW_SCND_AS1 923.3
#define FREQ_RX_WNDW_SCND_AS2 923.3*/

//const float US_hybrid_channels[8] = {903.9, 904.1, 904.3, 904.5, 904.7, 904.9, 905.1, 905.3}; //rx 923.3
const float EU_hybrid_channels[8] = {868.1, 868.3, 868.5, 867.1, 867.3, 867.5, 867.7, 867.9}; //rx 869.525
/*const float AU_hybrid_channels[8] = {916.8, 917.0, 917.2, 917.4, 917.6, 917.8, 918.0, 918.2}; //rx 923.3
const float CN_hybrid_channels[8] = {487.1, 487.3, 487.5, 487.7, 486.3, 486.5, 486.7, 486.9}; //rx 505.3
const float KR_hybrid_channels[8] = {922.1, 922.3, 922.5, 922.7, 922.9, 923.1, 923.3, 0};     //rx 921.9
const float IN_hybrid_channels[8] = {865.0625, 865.4025, 865.9850, 0, 0, 0, 0, 0};            //rx 866.55
const float AS1_hybrid_channels[8] = {923.2, 923.4, 922.2, 922.4, 922.6, 922.8, 923.0, 922.1}; //rx 923.2
const float AS2_hybrid_channels[8] = {923.2, 923.4, 923.6, 923.8, 924.0, 924.2, 924.4, 924.6}; //rx 923.2*/

//United States Receive Window Data Rate = DR8
//#define DOWNLINK_DATA_RATE_US DR8
#define DOWNLINK_DATA_RATE_EU DR8
/*#define DOWNLINK_DATA_RATE_AU DR8
#define DOWNLINK_DATA_RATE_CN DR0
#define DOWNLINK_DATA_RATE_KR DR0
#define DOWNLINK_DATA_RATE_IN DR2
#define DOWNLINK_DATA_RATE_AS1 DR2
#define DOWNLINK_DATA_RATE_AS2 DR2*/

//#define US_RX_DR DR8
#define EU_RX_DR DR8
/*#define AU_RX_DR DR8
#define CN_RX_DR DR0
#define KR_RX_DR DR0
#define IN_RX_DR DR2
#define AS1_RX_DR DR2
#define AS2_RX_DR DR2*/

//United States max data rate for uplink channels = DR3
//#define UPLINK_DATA_RATE_MAX_US  DR3
#define UPLINK_DATA_RATE_MAX_EU  DR5
/*#define UPLINK_DATA_RATE_MAX_AU  DR3
#define UPLINK_DATA_RATE_MAX_CN  DR5
#define UPLINK_DATA_RATE_MAX_KR  DR5
#define UPLINK_DATA_RATE_MAX_IN  DR5
#define UPLINK_DATA_RATE_MAX_AS1 DR5
#define UPLINK_DATA_RATE_MAX_AS2 DR5*/

//#define MAX_EIRP_NDX_US 13
#define MAX_EIRP_NDX_EU  2
/*#define MAX_EIRP_NDX_AU 13
#define MAX_EIRP_NDX_CN  7
#define MAX_EIRP_NDX_KR  4
#define MAX_EIRP_NDX_IN 13
#define MAX_EIRP_NDX AS1 5
#define MAX_EIRP_NDX_AS2 5*/

//The min uplink data rate for all countries / plans is DR0
#define UPLINK_DATA_RATE_MIN DR0

#define DEFAULT_RESPONSE_TIMEOUT 5
unsigned char frame_counter = 1;
int loopcount = 0;

char buffer[256];


void setup(void)
{
    SerialUSB.begin(115200);
    while(!SerialUSB);

    lora.init();
    lora.setDeviceReset();

    memset(buffer, 0, 256);
    lora.getVersion(buffer, 256, 1);
    SerialUSB.print(buffer);

    memset(buffer, 0, 256);
    lora.getId(buffer, 256, 1);
    SerialUSB.print(buffer);

    lora.setId(NULL, DEV_EUI, APP_EUI);
    lora.setKey(NULL, NULL, APP_KEY);

    lora.setDeciveMode(LWOTAA);
    lora.setDataRate(DR0, EU868);
    setHybridForTTN(EU_hybrid_channels);

    lora.setReceiceWindowFirst(868.3,  EU_hybrid_channels[0]);
    lora.setReceiceWindowSecond(FREQ_RX_WNDW_SCND_EU, DOWNLINK_DATA_RATE_EU);

    lora.setAdaptiveDataRate(false);

    lora.setDutyCycle(false);
    lora.setJoinDutyCycle(false);
    lora.setPower(MAX_EIRP_NDX_EU);

//        SerialUSB.print("Starting OTTA Join.\n");
//    loopcount = 0;
//    while(true) {
//        loopcount++;
//        if (lora.setOTAAJoin(JOIN))
//            break;
//    }
//    SerialUSB.print("Took ");
//    SerialUSB.print(loopcount);
//    SerialUSB.println(" tries to join.");
    while(!lora.setOTAAJoin(JOIN));
    //lora.loraDebug();
}

void setHybridForTTN(const float* channels){
    for(int i = 0; i < 8; i++){
        if(channels[i] != 0){
            lora.setChannel(i, channels[i], UPLINK_DATA_RATE_MIN, UPLINK_DATA_RATE_MAX_EU);

        }
    }
}

void loop(void)
{
    while(!lora.setOTAAJoin(JOIN));
    bool result = lora.transferPacket(&frame_counter, 1, DEFAULT_RESPONSE_TIMEOUT);

    if(result)
    {
        delay(50);
        frame_counter++;
        short length;
        short rssi;

        memset(buffer, 0, 256);
        length = lora.receivePacket(buffer, 256, &rssi);

        if(length)
        {
            SerialUSB.print("Length is: ");
            SerialUSB.println(length);
            SerialUSB.print("RSSI is: ");
            SerialUSB.println(rssi);
            SerialUSB.print("Data is: ");
            for(unsigned char i = 0; i < length; i ++)
            {
                SerialUSB.print("0x");
                SerialUSB.print(buffer[i], HEX);
                SerialUSB.print(" ");
            }
            SerialUSB.println();
        }
    }

    lora.loraDebug();
    delay(1000);
}

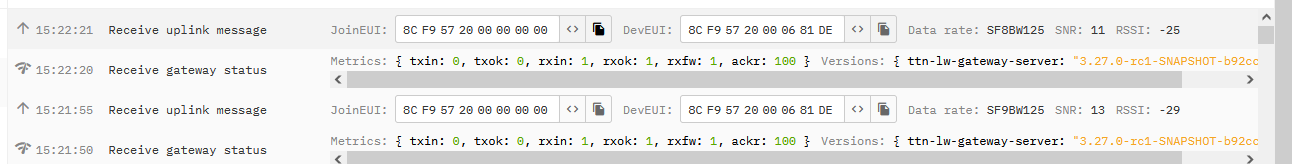

I am running out of ideas, I think the problem is not on ttn side since there I can see the join accept messages:
19

Do you have any ideas?


(Jac Kersing) #2
  1. Why does the node log show the RX2 window is set to both the wrong frequency and datarate (entry just above ADR) You need to use 869.525 MHz and DR0. The code uses DR8? for EU downlink datarate?
  2. Your gateway log extract shows no data received by the gateway and transmitted to the node. (PULL_RESP is 0) However the gateway log time stamp does not match the console log so you probably looked at the wrong time window.
  3. TTN console shows join response packets are to be transmitted at 868.3 MHz which means RX1 window. Make sure your node setup for RXWIN1 is correct. The node log shows an error on RXWIN1 setup(errors are always a sign you need to investigate/fix unles you are very sure nothing is wrong… in this case it might well be the cause of your issues)

(Brady Aiello) #3

Any luck?


(Thilko) #4

No, unfortunately not. I changed the code according to the comments from @kersing and I was at least able to the join ack responses in TTN and on the gateway - but they are not received by the node.

I changed the firmware to the actual version(2.1.16) and now the join requests didn´t even reach the gateway. @brady_aiello Since I think something is wrong on the node - do you know any more debugging possibilities there?

I am also wondering if my setup of gateway and node is caused some of the problems, because they are located in the same room?


(Brady Aiello) #5

Sorry, try commenting out the join in the loop() portion:
while(!lora.setOTAAJoin(JOIN));
Sorry I left that in the code. Let me know if that helps.


(Thilko) #6

Sorry for the long delay, I´ll check it. I still think I have some problems with my setup of gateway and node because I got 100% CRC errors now and no proper packages arrives the gateway.


(Brady Aiello) #7

Okay, cool. I have not been able to get the poly_pkt_fwd program to work, so I can’t speak from experience. I’m using the TTN packet forwarder at it has been a gazillion times easier to use. https://github.com/TheThingsNetwork/packet_forwarder/blob/master/docs/INSTALL_INSTRUCTIONS/IMST_RPI.md#build
