OTAA ok, 12h later I get denied, reboot gateway --> OK again ...!?


(Arjan) #27

And also, I still wonder if "regular" downlinks work at the time where (you expect) OTAA does not work.

By the way, if the following are indeed the Join Request and Accept, I find 5.5 seconds quite a long time to respond. Especially as I assume the backend servers are not really busy yet, and even more so as it's just half a second before JOIN_ACCEPT_DELAY2:

(For a regular downlink, for EU863 the default RECEIVE_DELAY1 is 1 second, and RECEIVE_DELAY2 2 seconds. Maybe TTN configures different values?)


#28

The response for RX2 will be sent to the gateway between 5 and 6 seconds after the join request. However in my experience the response arrives just after the 5 second mark, not half a second into the window. Any additional delay is probably due to network lag. This is assuming the response is for RX2 and not a delayed RX1 packet...
(All downlink packets, join response and data, will be offered to the gateway within 1 second of it being due to be transmitted)


(Salvatore Forte) #29

Hi @kersing,

maybe I was not that clear in the last post, the two pictures above are referred to an unsuccessful join attempt! Since I found out that I can't get any downlink packet from web server, even when I use the ABP activation, I start to believe that the problem is the timestamp at which the RF packet delivery is scheduled. Who is defining it? Could be that there is a mismatch and that's the reason why packets get lost?


(Arjan) #30

...or that it arrives quite late at your gateway? (I have not checked all your logs to see at what time the downlinks arrive; see kersing's last post.)


(Salvatore Forte) #31

Hi @arjanvanb,

only thing I know I am starting to get really confused! :slight_smile: I can't understand straight how things are going on!
I want to cool off a bit and review stuff since the beginning in order to get more understanding of the problem, even because seems like @matthijs was able to have "ttn-abp.ino" and "ttn-otaa.ino" both working on TTN, and I haven't made any change of those sketch files.


#32

Ok, looked at the screenshots again, the issue you are having is timing related. The packet at 11:49:26.3.. should have been sent by the gateway exactly 5 seconds after the packet of 11:49:20.8 arrived. The time between the sending the first and receiving the second packet exceeds 5 seconds so the gateway receives the data after it should have been transmitted. As a result the node will never receive the data at the time it expects it and the join fails.

Looking at the 'PULL_ACK' lines in the second screen shot I notice the turn around times vary wildly and are rather large. For my gateways the results are 20-40ms, your results are 240-882ms. The lower value might work, the high value is too large.


Gateway Latency
(Salvatore Forte) #33

Hi @kersing,

sorry if it took me some time to answer. I agree with you, looks like the server is taking too long to send packets after receiving an uplink message. In fact, if you look at the picture, you can see that the gateway receive and forward downlink packets back to the end node on Lora side, but probably both its receive windows are already closed and the packet gets lost.

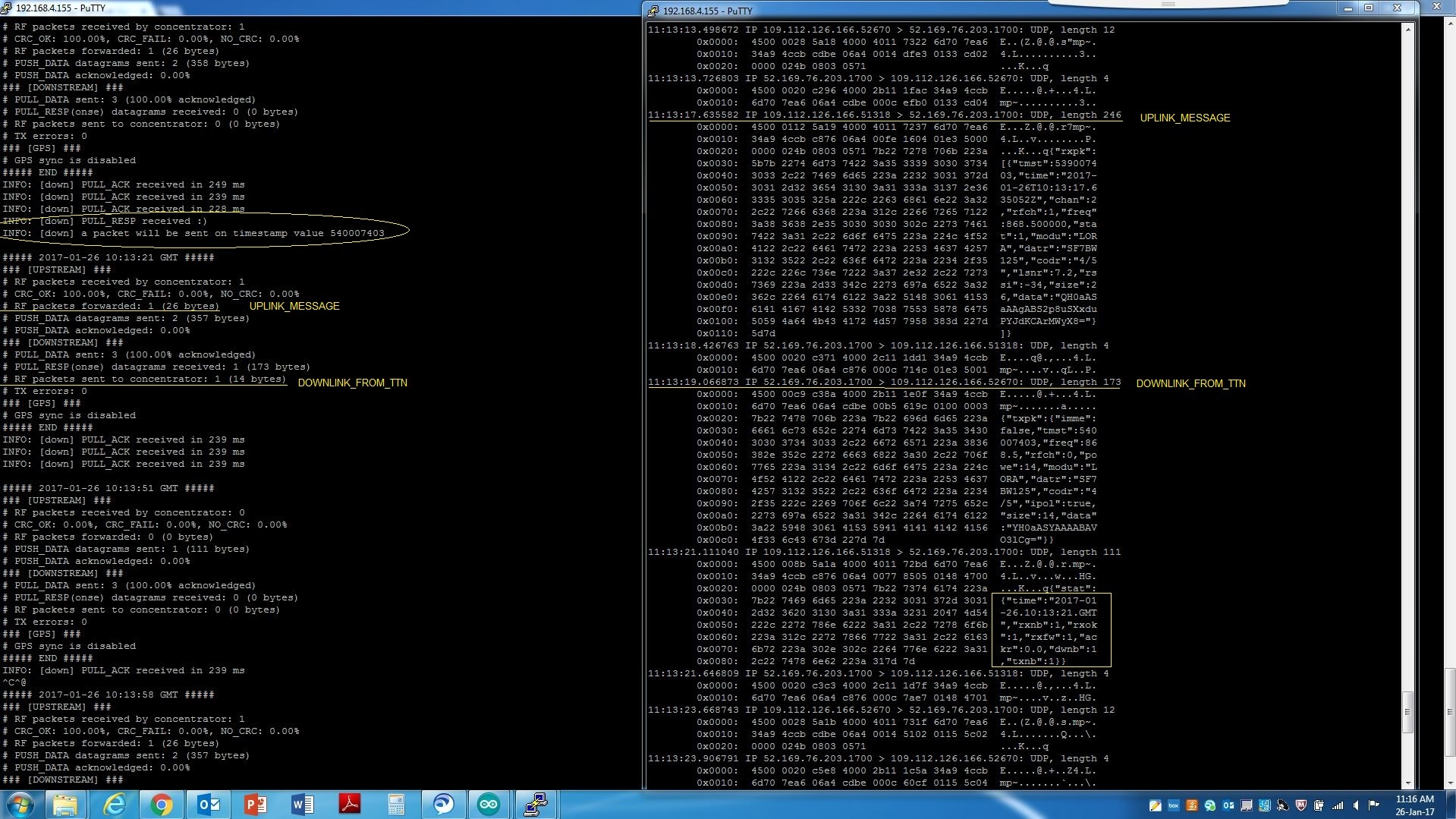

"tcpdump -i ppp0 port 1700 -X" and "./poly_pkt_fwd"

I have a few questions I would like to ask:

  • I am connecting to web server over GSM, and the gateway is placed indoor, could it be the reason why it's taking so long to get ack/packets from server?

  • Could you give me an indication about end node timing? How long it takes to open both receive windows? How many seconds each window remain opened?

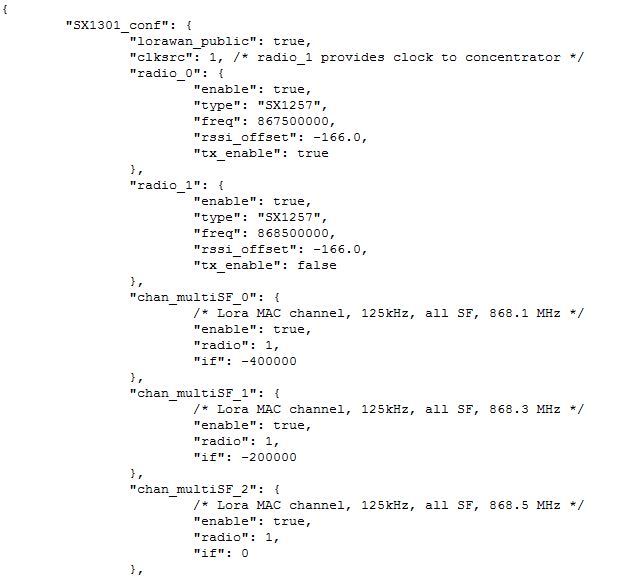

  • I am sending packets using the 3 standard Lora channels (868.1 MHz / 868.3 MHz / 868.5 MHz) that are configured into radio 1 gateway's transceiver. I had a look into the “global_conf.json” file and looks like “tx_enable” is set to FALSE. Considering that the downlink packets are sent over the same 3 prior mentioned channels, is that configuration still ok or should I put it to TRUE? Could you have a look of it to see if I have set everything right?

Just to run a test, I would like to make the receive windows on Arduino side larger and see if the downlink problem still remain. @matthijs, could you advise me how to do that in the LMIC's configuration files?

Many thanks for your kind support!

Best regards,

Salvatore


(Arjan) #34

...but you already tried that? Of course, you could make the windows even larger; @matthijs already explained earlier, as quoted above.


(Salvatore Forte) #35

Hi @arjanvanb,

since the problem was the missing downlink packet reception, I got back to ABP sketch and I didn't make that fix, also because it was not working anyway during OTAA. Any advise to give about that?


(Arjan) #36

I'd assume you could increase it by 10%, 20%, whatever you want. For 20%, I'd try:

LMIC_setClockError(MAX_CLOCK_ERROR * 20 / 100);

(Arjan) #37

...but taking a step back:

If the downlink packets are received (or: pulled?) too late for the downlink window (which seems to be the problem), then why would restarting the gateway solve this for some time? Maybe it somehow decreases the 3G network lag, due to some more network activity when the gateway is started?


(Salvatore Forte) #38

...not hundred percent sure that the problem is due to late pull from server, but considering the results of the test I have made, I don't see any other explanation by now.

[/quote]

Anyway, this fix in the code doesn't solve the problem. With regard to LMIC library I have seen that receiving downlink packets in RX1 window has been not tested yet. Only RX2 should work. Have you ever tried to get packets back using LMIC library?


(Arjan) #39

True for TTN, for reasons described in Why is RX_SLOT 1 not used?

Not for data, but LMiC OTAA works fine for me.

How far did you stretch the receive window? Maybe even 100% of the maximum error is allowed:

LMIC_setClockError(MAX_CLOCK_ERROR);

(Salvatore Forte) #40

Hi @arjanvanb,

Have you tried to just remove power from your arduino (or even push the reset button) and then try to activate it once again? In my case, as soon as I restart my Arduino, I can't activate the device any longer (I didn't make any change at all!).

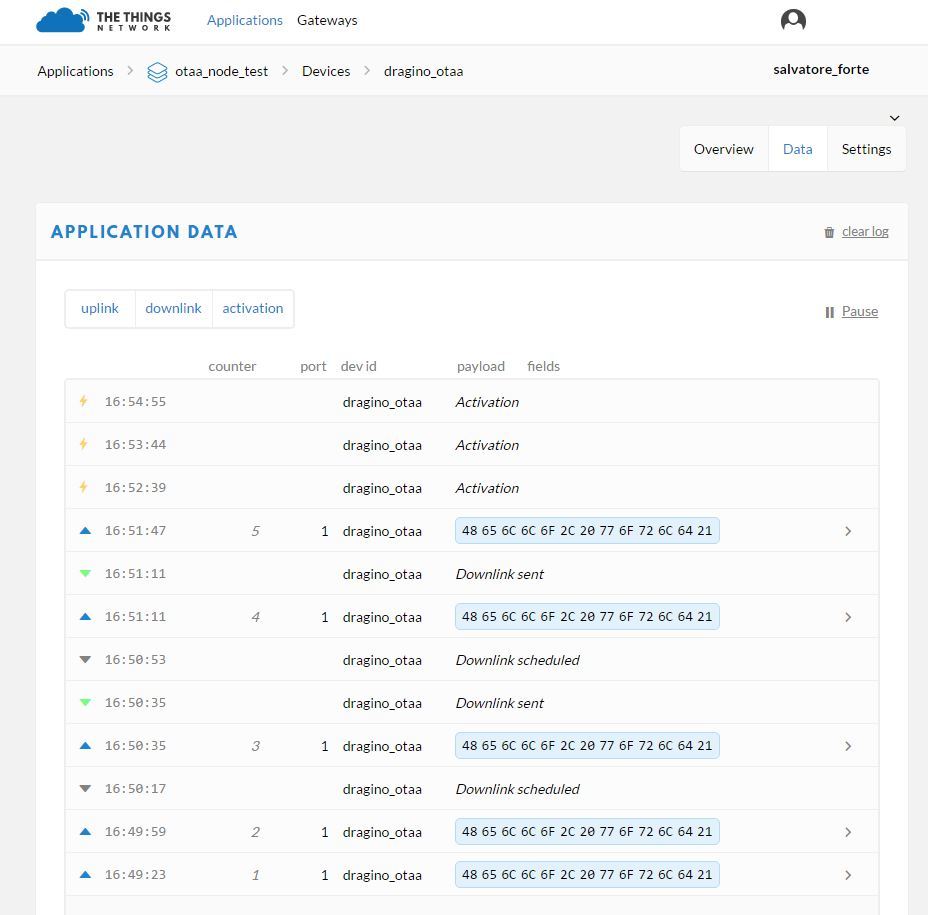

I post the console view: in the event of a restart, you can see a new JOIN_REQUEST, the device can't get JOIN_ACCEPT so it will keep sending request at scheduled TX interval.

Please, let me know if you run that test.


(Arjan) #41

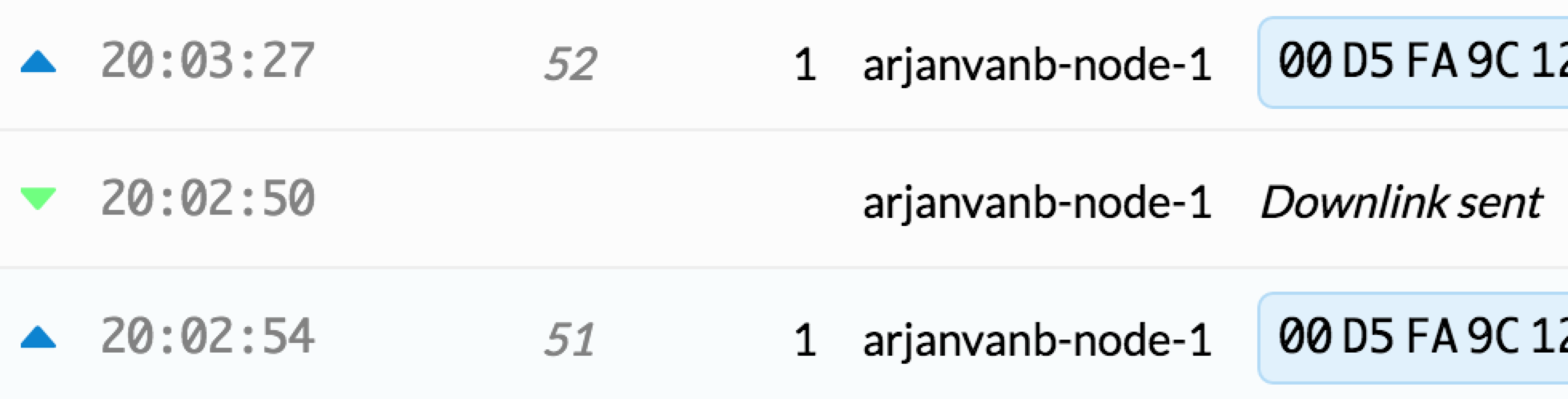

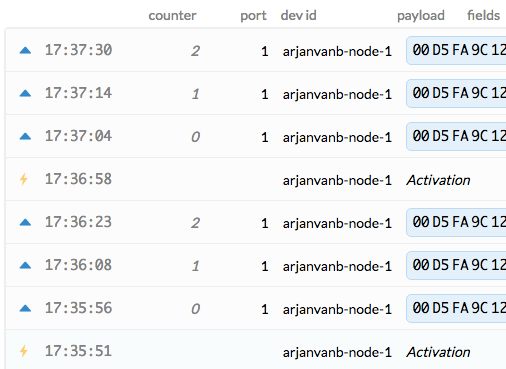

I have no specific problems with resetting and all. I don't always get a successful OTAA right away, but I'm using Jaap's single channel gateway, and that uses some smart timing to scan for all spreading factors, that might miss out on packets. I never need to reset anything to eventually get activated.

But that's not new information, right? That's why you came to this topic in the first place, or has something changed now?


(Arjan) #42

A bit of logging from my single channel gateway, for a successful OTAA:

A 18:23:18.659167	pull	01946a025ccf7ff42f1970ec
B 18:23:22.555010	rxpk	01bf72005ccf7ff42f1970ec	message	{"rxpk":[{"rssi":-46,"stat":1,"modu":"LORA","rfch":0,"tmst":349218460,"datr":"SF7BW125","lsnr":9,"time":"2017-01-26T18:23:22.510034Z","codr":"4/5","data":"ANwAANB+1bNwHm/t9XzurwDIhgMK8sk=","freq":868.100,"chan":0,"size":23}]}	length	237
C 18:23:23.658268	pull	01af68025ccf7ff42f1970ec
D 18:23:27.372908	txpk	{"txpk":{"imme":false,"tmst":354218460,"freq":868.1,"rfch":0,"powe":14,"modu":"LORA","datr":"SF7BW125","codr":"4/5","ipol":true,"size":33,"data":"IIE/R/UI/6JnC24j4B+EueJdnEEV8C7qCz3T4gs+ypLa"}}
E 18:23:27.389906	txpk_ack	{"txpk_ack":{"error":"NONE"}}
F 18:23:27.508022	transmitPkt	9886	6300	-1	868100000	112	112	2	64	14	33

Above, line B is the Join Request (with the gateway's timestamp being 349218460). TTN Console shows that at 19:23:22; it seems to know my local time zone.

Line D is the Join Accept which seems to arrive at the gateway after 4.818 seconds. The timestamp in the Accept, indicating when to forward it to the node, is set to be 354218460, hence 5,000,000 microseconds or 5 seconds after the timestamp from the Join Request. (All relative to the gateway's timestamp, like Kersing explained above.) So, TTN wants the gateway to send it in RX1, following JOIN_ACCEPT_DELAY1. Indeed, in line F it's transmitted.

Before truly transmitting it in line F, in line E an acknowledgement is already sent back to TTN. Jaap's single channel gateway will report TOO_LATE if the downlink came too late (following Semtech's Gateway to Server Interface Definition):

local msg='{"txpk_ack":{"error":"NONE"}}'
if trig <= 0 then
  msg='{"txpk_ack":{"error":"TOO_LATE"}}'
end

So, the size of the acknowledgement might give you an indication if the gateway thinks all is fine? When sent without whitespace, the NONE is 29 bytes, the TOO_LATE is 33 bytes.

As LMiC starts OTAA whenever the first packet is to be sent, a successful Join is followed by the first data:

G 18:23:27.684300	rxpk	01ee4d005ccf7ff42f1970ec	message	{"rxpk":[{"rssi":-48,"stat":1,"modu":"LORA","rfch":0,"tmst":354347381,"datr":"SF7BW125","lsnr":9,"time":"2017-01-26T18:23:27.639420Z","codr":"4/5","data":"QCkuASaAAAAByFaF53Iu+vzmwQ==","freq":868.100,"chan":0,"size":19}]}	length	233

(As an aside: this way, the first data received after a Join, will always be a bit late, unless one explicitly first forces a Join when starting the device.)

After the OTAA, the gateway goes into pulling commands from TTN, and sending statistics:

H 18:23:28.657846	pull	017601025ccf7ff42f1970ec
I 18:23:33.657938	pull	015754025ccf7ff42f1970ec
J 18:23:38.631359	stat	01e961005ccf7ff42f1970ec	message	{"stat":{"rxfw":2,"alti":3,"lati":52.123456,"rxok":2,"long":4.987654,"time":"2017-01-26 18:23:38 GMT","txnb":1,"dwnb":2,"rxnb":2,"ackr":100.0}}	length	155
K 18:23:38.659612	pull	01b3d0025ccf7ff42f1970ec

Every now and then my node will ask for a link check in an uplink. (Even though TTN does not support ADR yet, my test node has link check enabled.)

L 19:02:53.661983	pull	015e66025ccf7ff42f1970ec
M 19:02:54.474860	rxpk	01450f005ccf7ff42f1970ec	message	{"rxpk":[{"rssi":-54,"stat":1,"modu":"LORA","rfch":0,"tmst":573653463,"datr":"SF10BW125","lsnr":12,"time":"2017-01-26T19:02:54.429481Z","codr":"4/5","data":"QCkuASbAMwABMngK0sWEN3AgBQ==","freq":868.100,"chan":0,"size":19}]}	length	235
N 19:02:56.191305	txpk	{"txpk":{"imme":false,"tmst":575653463,"freq":869.525,"rfch":0,"powe":27,"modu":"LORA","datr":"SF9BW125","codr":"4/5","ipol":true,"size":12,"data":"YCkuASYgAwDQNni9"}}
O 19:02:56.206041	txpk_ack	{"txpk_ack":{"error":"NONE"}}
P 19:02:56.426678	transmitPkt	10332	7063	0	869525000	144	112	2	64	27	12
Q 19:02:58.661714	pull	013877025ccf7ff42f1970ec

In line M the timestamp in the uplink is 573653463. In the downlink in line N, which is received after 1.716 seconds, it's 575653463, hence 2 seconds difference. Again, the downlink is received just in time to forward it to the node. For this, TTN Console seems to have the seconds wrong in 20:02:50, and they are not in line with the uplink that preceded the downlink:

If your gateway does not print timestamps, then the following (or alternatives) might help to add a timestamp when monitoring a file called logfile:

tail -f logfile 2>&1 | while read l; do d=`date +%H:%M:%S.%N`; echo $d $l; done

OTAA Join Accept not received by Arduino/STM32 LMiC node through iC880A RPi 3 gateway
Most OTAA join request fail to downlink confirmation to node
SQL Datatypes for TTN data
Wrong timestamp in JSON data
(Matthijs Kooijman) #43

I'm not entirely sure that will work - at some point the RX windows will end up overlapping (which each other and possibly even the TX time), and I'm not sure what will happen then (I remember leaving that for later, but I never got around to handling that gracefully).
