Problem sending from device to the gateway via TTN

lorawan2000 · August 7, 2023, 11:50pm

I have a system consisting of a LoRa GPS shield with arduino UNO and a LoRa gateway (LG01-N), knowing that both operate at a frequency of 915/920 MHZ
The main problem is that there is no data ( there is no conection betwen gateway and end node ) that can be seen in the live data of the application, even though the gateway is connected to TTN and ready to receive.

so this is my hardware …

jhhl

End device

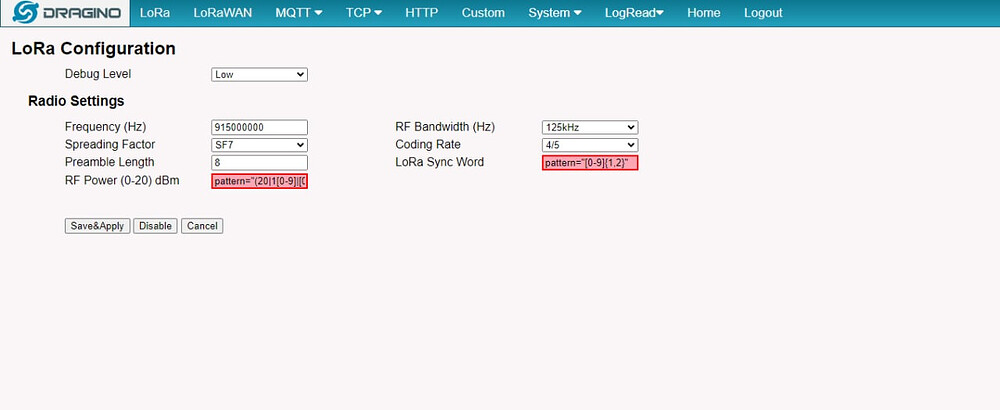

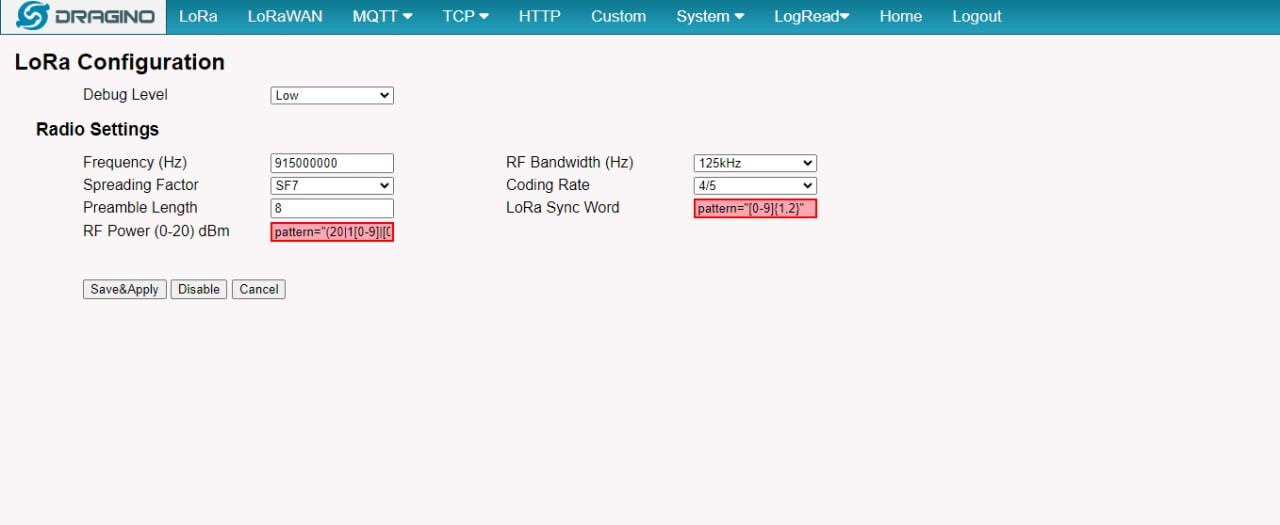

Here is an explanation for everything related to the system and some configuration:

and this is the arduino sketch using

github.com

goodcheney/Arduino-Profile-Examples/blob/patch-4/libraries/Dragino/examples/LoRa/LoRaWAN/LoRa_GPS_Shield_TTN

#include <lmic.h>
#include <hal/hal.h>
#include <SPI.h>
#include <SoftwareSerial.h>
#include <TinyGPS.h>
TinyGPS gps;
SoftwareSerial ss(3, 4); // Arduino RX, TX to conenct to GPS module.

static void smartdelay(unsigned long ms);

unsigned int count = 1;        //For times count


String datastring1="";
String datastring2="";
String datastring3="";
char datasend[20];     //Used to store GPS data for uploading

char gps_lon[20]={"\0"};  //Storage GPS info
char gps_lat[20]={"\0"}; //Storage latitude

This file has been truncated. show original

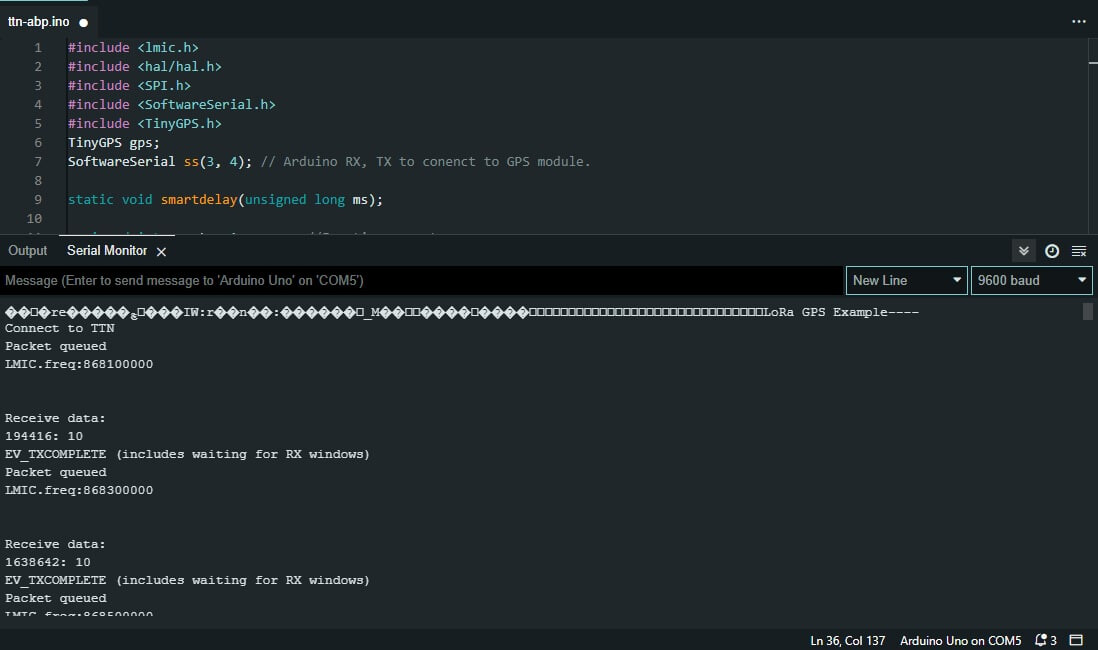

After entering the code

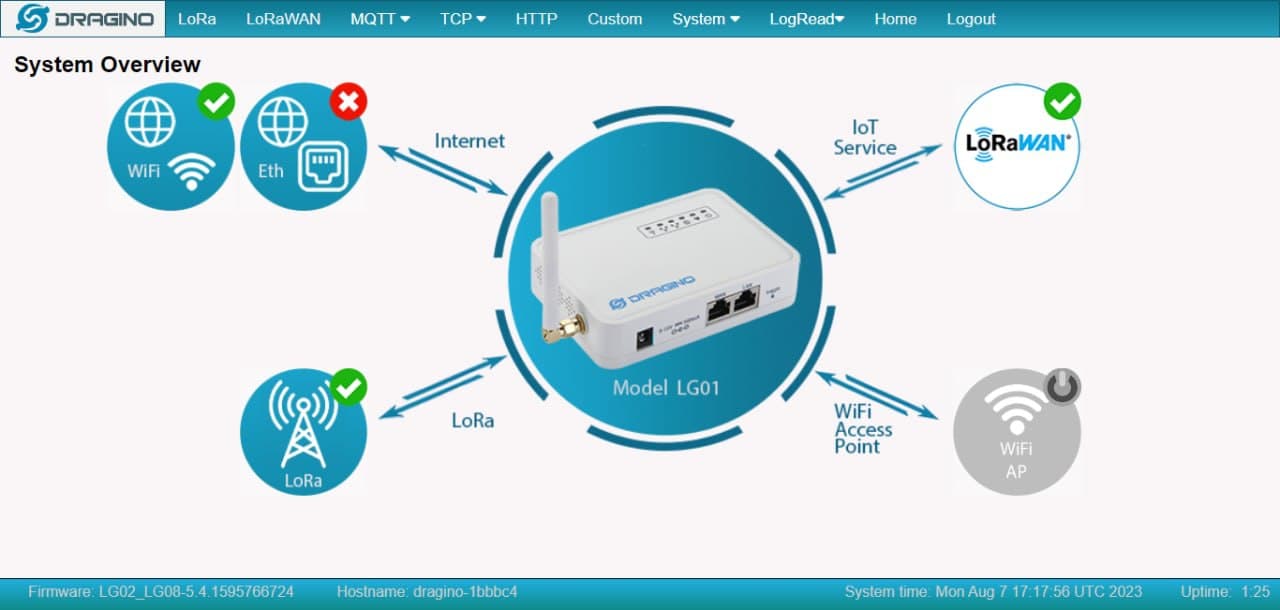

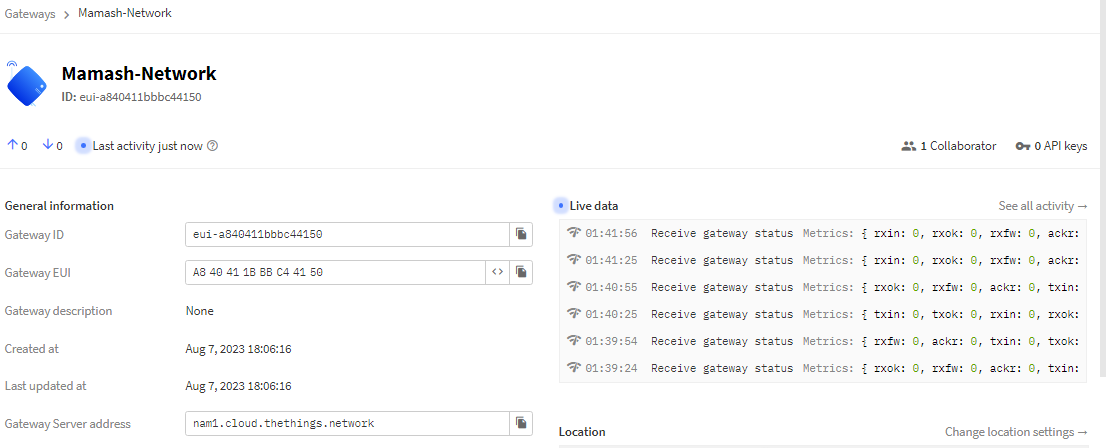

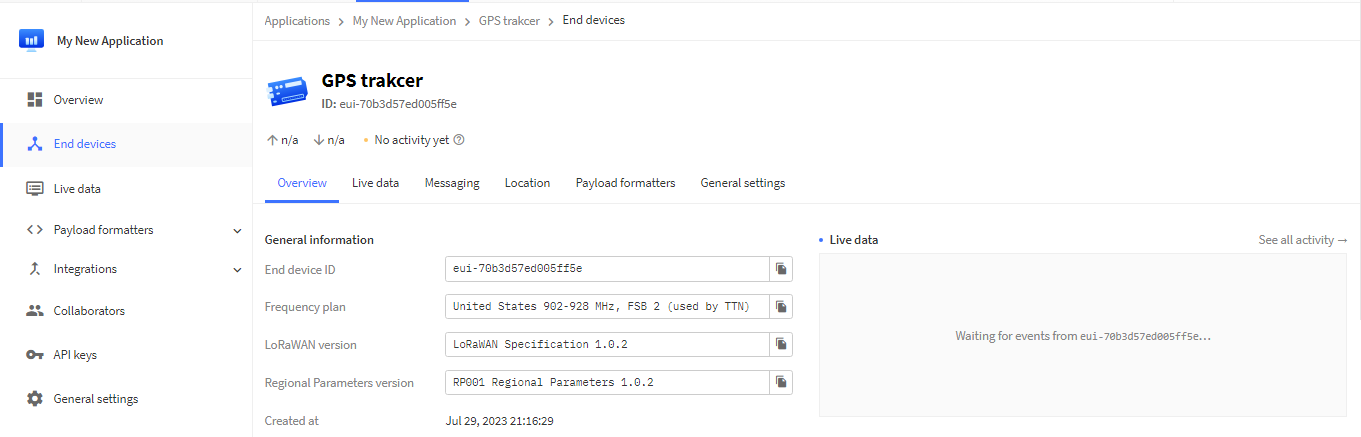

Gateway and end device status at TTN

any thoughts ??

kersing · August 8, 2023, 6:59am

You are using a Lora gateway on a LoRaWAN network. Those gateways are disruptive for other users and do not work for LoRaWAN. Please disconnect it and get a proper LoRaWAN specification compliant gateway.

Wrong hardware so there won’t be any data. It simply does not work on TTN.

descartes · August 8, 2023, 8:10am

As above, Single Channel Packet Forwarders are not gateways, closing.

PS, good effort on the detail though!

PSS, you don’t send to the gateway, the device transmits, one or more gateways hear, there is no logical connection created between device & gateway.
