TTGO T-Deer

Just noticed my meter will do current down to uA so gave it a try.

Powering the device (with led) on LiPo via the LDO, running standard code with sleep etc I am getting 0.84mA in sleep period

UPDATE

As per schallb I took the red led off (I got brave) and we are down to a very usable 78uA is sleep - no red led

tl/dr;
it’s IO1 (as labelled on the board) which should be connected to D5 for the above mentioned pin mapping, right?

long version:
oh well… expected this to be easier… :roll_eyes:

hooked one up to an 3.3V FTDI, seeing the demo sketch’s data coming in fine, looking good…

so let’s flash the OTTA demo, you guys suggested the MCCI lib (platformio #5774)

AVRdude can’t seem to connect - oh well, like in the old days, push the reset button on the board at the right moment - or connect DTR (aka RTS) from the FTDI-cable… ok. flash succeeded.

but it’s only rubbish coming back in the serial monitor, though it’s definitly set to 9600 baud like set up in the sketch. maybe 115200? no. 19200? yes! … why? no idea. platformio.ini as well as the sketch itself has it defined as 9600…

checking the gateway… nothing coming in. doh! the lib is set to 915mhz (need to edit /project_config/lmic_project_config.h for 868 or others)

clean/upload - hurray - JOIN ACCEPTs in the gateway’s console… but board obviously not recognizing it… yes - IO1 connected to D5 using and @jezd’s pin mapping
so why? :roll_eyes:

well, the devil’s in the detail.

i did have
board = pro8MHzatmega328
defined, this doesn’t work.

using
board = pro16MHzatmega328
does.

:woman_shrugging:

that’s running it as pro16MHzatmega328 and using rocketscream’s low-power for sleep as in your platformio.ini above?

My first set of five devices is up and running.
Next steps will be to imlement downlink functionality and better support for wakeup from deep-sleep via external interrupt.
One thing i found out: the W25Q32 SPI flash offers a unique 64bit wide ID! It can perfectly be used as DEVEUI

2 Likes

Any code you feel like sharing - I’m having issues with the 16mhz aspect and running at 8mhz, have you done a new bootloader?

No new bootloader -> I boot with 16MHz and switch asap to 8Mhz (clock divider)

platformio.ini:
[env:ttgotdeer]
platform = atmelavr
framework = arduino
board = pro16MHzatmega328
upload_speed = 115200
monitor_speed = 9600
board_build.mcu = atmega328p
board_build.f_cpu = 8000000L

in my code:
void setup()
{
//set to 8MHz
setClockPrescaler(CLOCK_PRESCALER_2);
}

using prescaler.h from https://github.com/fschaefer/Prescaler

1 Like

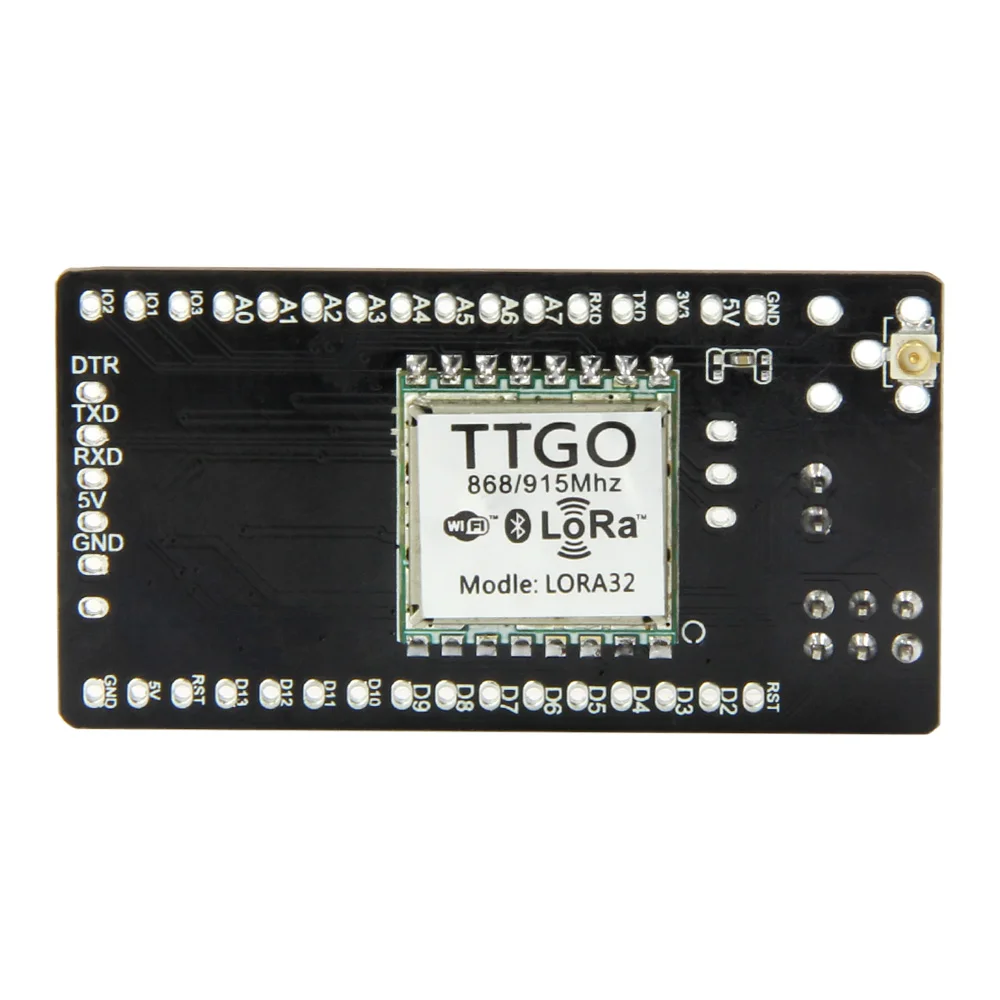

New Deer Promini_LORA_V02 board has appeared :smile:

Charging led has changed to red I think, need circuit layout to see what has changed - there has been a big shuffle around on the board (is it really still 16mhz ?). No jumper option for 5v/3v operation anymore, so if its 3v then is it 8mhz now?

Aliexpress shows board images plus old board too, I suspect the spec listing needs an update - interesting if the have listened to feedback.

I bought two of these modules (TTGO T Deer Pro Mini Lora V02) but when trying to connect them to the Arduino IDE I am getting the error:

“avrdude: stk500_recv(): programmer is not responding
avrdude: stk500_getsync() attempt 10 of 10: not in sync: resp=0xc1”

I tried to use the arduino mini and arduino pro or pro mini as devices but I still get these kind of errors. Can someone please guide me on how to program these modules with Arduino IDE?

Thanks

Tried to choose bot mini and Pro/ Promini but without success. It keeps giving me an error
“avrdude: stk500_recv(): programmer is not responding
avrdude: stk500_getsync() attempt 10 of 10: not in sync: resp=0xc1”

USB to serial converter (using only 4 wires, VCC, GND, TX and RX) is working fine since when opening serial terminal, the pre-programmed code will display the packet number sent correctly.

Any more hints on how I can solve the problem? Thanks

1 Like

I’m confused, is this specific to t-deer device or all your devices?

Specific to the t-deer device only. I tested on Wroom32, nano, esp8266 and I managed to program them all. The only difference is that the t-deer needs the usb to serial converter while the others have the converter inbuilt. I am sure that the converter is working fine since I manage to get data back from the t-deer to the Arduino IDE serial monitor. Thanks.

I have exactly the same problem, flashing avrdude: stk500_recv(): programmer is not responding. I use platformio.

My v2 one has just arrived, will play with it this weekend

Hello, short update from my side: I odered another bunch of those and figured out that the layout and shematic has changed from the previous version ‘Pro mini_LORA 20180926’ to ‘Promini_LORA_V02 20190506’
I received the new shematics and will check if there is any need to adopt the software.

2 Likes

Can you share the new schematic?

Ah! Yeah - sure… I forgot to attach it: promini_lora_v02.pdf (70.5 KB)

Hello, I was wondering how you all got on with this product? Did this thread continue elsewhere?
Thanks in advance

What is your concrete question?

2 Likes

My TTGO T-Deer V02’s showed up this week. Most of this thread relates to the V01 board and it looks like some of the fix’s are no longer required (e.g. changing 5v, 3v3 jumpers)

I’ve summarised a list of things to get the T-Deer to work. Can anyone working with V02 (or both versions) tell me if I’ve missed something or if its still required with V02?

  • Connect DI01 to D5 on the board
  • Connect antenna (I read you can damage some boards if powered up without antenna?)
  • Apply appropriate pin mapping in lmic-based sketch, as per jezd (post #30)
  • Define D6 as INPUT and connect D6 to A0 to monitor voltage (probably no point if I’m using a buck converter, as I’ll never see a change, see below)
  • Make sure Arduino IDE is set to Arduino mini (not pro, pro mini)
  • Connect board to USB serial converter (I have CP2102) using 5V. Upload MCCI LMiC-based sketch.

I plan to run in 5V, 16Mhz powered by an external TP4056 charger and 6v solar panel because I need 5V logic for one of my sensors. Are you guys slowing clock speed to 8mhz just to save power?

The datasheet shows a TP4054 charger on board and I was hoping to plug the solar panel straight to the serial 5V and LiPo battery to Vbat, but it’s a constant current charger, not MPPT, so probably not good. Any thoughts? It’s obviously not ideal to go from 3.7vLiPo-6Vsolar-TP4056, through a buck converter to 5V, only to be regulated back down to 3v3 on the board, but this is just for testing.

Has anyone been using the onboard flash to use as a local data backup? It would be good to save data in case of network outage, but not sure if there’s room for additional code in the sketch.

What kind of external interrupt are you using? A DS3231 RTC on D3?
