TTN GATEWAY central 2

Hi, my TTN gateway is functioning perfectly but seems to have suddenly gone quite deaf… Tested side by side with an IC880A - based gateway (using the same pigtail & antenna) and the difference is very noticeable. Messages from the same node are received by the IC880A with RSSI -65, but the TTN gateway reports -118 (!).
Does this sound familiar to anyone? It seems that the receiver is broken. Is there any way to get a replacement if this turns out to be the case? A reboot did not fix this issue btw.
Thanks!
Marc.

I still have to reboot my device every day., despite using beta firmware.

Hello? Is someone listening? Knock knock? Will this be addressed and how? What can I contribute to solve it?

Nothing?

Only the vast void of space?

That would be sad.

Andreas

1 Like

Hi there,

Unboxed and installed a new gateway yesterday and I seem to be hit by this problem as well. Not happy with the stability of the system as it stands - out of the box it should be stable at least. Also I think the node setup is pretty poor - this stands out as a development system still and not quite ready for primetime. Please work on your quality controls and testing guys.

Best regards,
Richard

1 Like

I don’t want to sound like a ‘stalker’ but you may gain some comfort in knowing that you are not alone.

After receiving the TTN Gateway, I could not get it activated using the standard process: after sending the config, the gateway gets into a reboot loop.

Today, I flashed the firmware to the beta using an sd-card. Now, I am getting further. First, I manage to configure the gateway with my wireless network settings. It then reboots to log on. This results in two leds with a slow flash of the third. At some points, there seem to be three leds permanently on, but it reverts back to two plus the third flashing slowly.

On the wireless network, I see the device. When pointing a browser to the ip-address, I am getting the “gateway settings” screen, showing the Gateway ID pre-filled, a dropdown box with the WiFi Access Point, showing wireless networks in range, and a WiFi Password field.

On the settings screen, I choose my wireless network, and fill the password. When pressing “save”, I am getting an error “The length of your gateway ID needs to be over 6 characters.”. The ID of my gateway is 4 characters. No problem registering a 4-character gateway id. But, apparently, this is not allowed. And it seems that I can not change the gateway ID anymore.

The activation process seems to be getting one step further after the firmware upgrade. The gateway is visible on the wireless network after configuring it with a (wireless) point-to-point (infrastructure) link. Looking at the error message, the short gateway ID might be blocking the activation process.

Any suggestions? Thanks!

Gateway00

Reset the gateway for 5 seconds. TTN Gateway - FAQ. Maybe this help.

Ah, thanks. The procedure that also resets the ID. Will try!

My gateway was updated to 1.0.3 and runs OK as long as power is not cycled or it is not physically moved. If either of these things happen it loses its configuration and I have to go through the whole 'power up while holding pink button" routine, attach to its AP, configure etc.

So I have to be physically next to the device.

I noted from my PIC that when it fails it is always on the line about the ‘UART connection to LoRa’. I then open it up, jiggle the LoRa board around a few times (to get it reseated?) and start again. After doing this I always get ‘UART to LoRa Success.’ and it runs till the next time someone touches it or the power cycles.

Seems I have identified the problem with mine, how do I fix it permanently?

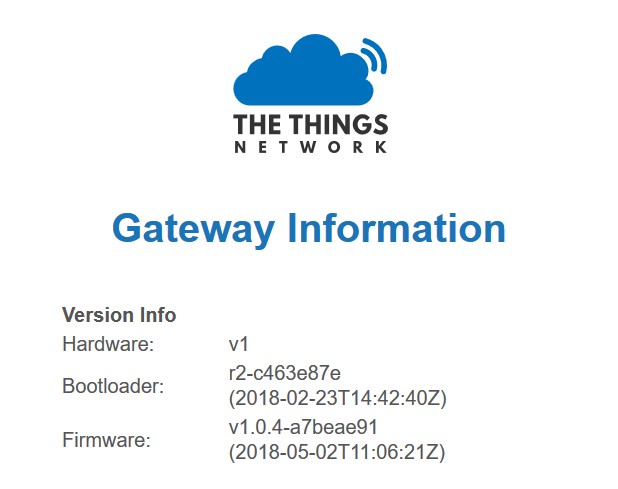

Where did you get the gateway information screenshot from? I cannot find it on TTN nor by accessing my device directly (192.168.1.xx)

Also my gateway is now back on 1.0.2, why? I didn’t change anything?

http://things-gateway.local/info

or

http://noc.thethingsnetwork.org:8085/api/v2/gateways/xxxx

xxx= your gateway name

Awesome, why did I not know this? Documentation seems a bit sparse :slightly_smiling_face:

after running (with the usual reboots) for a couple weeks I have now new issues

2018-05-01 17:47:07.922591 LORA: Kick LoRa module with ACK after not acked it for 60s
2018-05-01 17:51:15.827663 LORA: Kick LoRa module with ACK after not acked it for 60s
2018-05-01 17:52:17.808688 LORA: Kick LoRa module with ACK after not acked it for 60s
2018-05-01 17:53:19.764363 LORA: Kick LoRa module with ACK after not acked it for 60s

This goes on and on - I switch off the gateway for a while but the issues returns after a while

2018-05-01 17:54:55.209257 Firmware name: AmazingAckermann, type: 0, version: 1.0.2, commit: 475aef56, timestamp: 1521106500

This appears to be same as I experienced with 1.0.3, but for some reason it surfaces on 1.0.2 as well :frowning:

This appears to happen when there are no LORA packets received …

Hello Everyone

We just pushed a new firmware to the beta channel. This patch addresses two major issues faced by many people in this thread:

  • Revert problematic LoRa updates (1.0.3)
  • Includes a WiFi patch for more stability

You can find the link to the firmware from the Github page. It would be really helpful to have some beta testers check this release and let us know how it works at their end.


The Things Products Team

2 Likes

4-a7

“ready to rumble” :sunglasses:

2018-05-02 17:54:42.599677 Firmware name: AmazingAckermann, type: 0, version: 1.0.4, commit: a7beae91, timestamp: 1525259181

Ok let’s see what happens …

No cigar for me. Getting into the reboot loop again with 1.0.4. Too bad it’s still not logging a lot:

LORA: Configuration failed, retry
LORA: RESET MODULE
LORA: ChaSNTP: State change from 0 to 0
SNTP: State change from 0 to 0
Full reboot loop log in 1.0.4

Timestamps added by https://github.com/avbentem/raspi-uart-monitor

[2018-05-02T17:28:18.788Z] **************************
[2018-05-02T17:28:18.789Z] *   The Things Network   *
[2018-05-02T17:28:18.792Z] *      G A T E W A Y     *
[2018-05-02T17:28:18.794Z] **************************
[2018-05-02T17:28:18.802Z] Firmware name: AmazingAckermann, type: 0, version: 1.0.4, commit: a7beae91, timestamp: 1525259181
[2018-05-02T17:28:18.819Z] Bootloader revision: 1, commit: 7167873a, timestamp: 1496411298
[2018-05-02T17:28:18.831Z] Build time: May  2 2018 11:07:39
[2018-05-02T17:28:18.833Z] Reboot reason: 0x10
[2018-05-02T17:28:18.839Z] BOOT: (persisted info) 6F 72 72 65 01 03 8B 2C E7 16 0D 49 B2 32 50 B4
[2018-05-02T17:28:18.840Z]
[2018-05-02T17:28:18.840Z]
[2018-05-02T17:28:18.841Z]
[2018-05-02T17:28:18.841Z]
[2018-05-02T17:28:18.853Z] WIFI: Entering state 0
[2018-05-02T17:28:18.855Z] WIFI: Entering SCAN state 0
[2018-05-02T17:28:18.856Z]
[2018-05-02T17:28:18.857Z] MAIN: Initialisation complete
[2018-05-02T17:28:18.858Z] LORA: Changing state from 0 to 0
[2018-05-02T17:28:19.026Z]
[2018-05-02T17:28:19.028Z] MAIN: Leaving state 0
[2018-05-02T17:28:19.030Z] MAIN: Entering state 1
[2018-05-02T17:28:19.039Z] FLASH: Magic bytes found: wifi config present
[2018-05-02T17:28:19.043Z] FLASH: Magic bytes found: activation data present
[2018-05-02T17:28:19.047Z] FLASH: Magic bytes found: FOTA data present
[2018-05-02T17:28:19.050Z] FLASH: Loading Firmware Data
[2018-05-02T17:28:19.062Z] CNFG: (Firmware HASH (sha256)) 65 0D 50 41 6F 3C 7A 21 B0 6A 61 4A FF BE C3 DD 3F 8A 2C 8F D1 98 70 9F 71 EF C5 53 6A 7D 31 AF
[2018-05-02T17:28:19.065Z] FLASH: Loading WiFi Data
[2018-05-02T17:28:19.067Z] CNFG: WiFi SSID:      <redacted>
[2018-05-02T17:28:19.070Z] CNFG: WiFi key:       ***
[2018-05-02T17:28:19.072Z] CNFG: WiFi conn_type: 1
[2018-05-02T17:28:19.074Z] CNFG: WiFi sec_type:  4
[2018-05-02T17:28:19.076Z] FLASH: Loading Activation Data
[2018-05-02T17:28:19.080Z] CNFG: Gateway ID:         arjanvanb-gw-1
[2018-05-02T17:28:19.083Z] CNFG: Gateway Key:        ***
[2018-05-02T17:28:19.089Z] CNFG: Account Server URL: https://account.thethingsnetwork.org
[2018-05-02T17:28:19.091Z] CNFG: Locked:             true
[2018-05-02T17:28:19.094Z] CNFG: Locked first time:  false
[2018-05-02T17:28:19.095Z]
[2018-05-02T17:28:19.097Z] MAIN: Leaving state 1
[2018-05-02T17:28:19.099Z] MAIN: Entering state 2
[2018-05-02T17:28:19.105Z] INET: State change to 0
[2018-05-02T17:28:19.402Z] LORA: Initialisation complete
[2018-05-02T17:28:19.405Z] LORA: Changing state from 0 to 1
[2018-05-02T17:28:19.652Z] WIFI: Entering state 1
[2018-05-02T17:28:19.654Z] ETH: IP Address: 0.0.0.0
[2018-05-02T17:28:19.656Z] WIFI: Entering state 4
[2018-05-02T17:28:19.659Z] WIFI: Entering SCAN state 1
[2018-05-02T17:28:20.080Z] Scan is completed successfully
[2018-05-02T17:28:20.082Z] WIFI: Entering SCAN state 2
[2018-05-02T17:28:20.090Z] WIFI: Entering SCAN state 5
[2018-05-02T17:28:20.093Z] WIFI: Entering SCAN state 0
[2018-05-02T17:28:20.095Z] WIFI: Entering state 2
[2018-05-02T17:28:20.097Z] WIFI: Disabling modules
[2018-05-02T17:28:20.103Z] Head magic match void: trying to free an already freed block, ignore
[2018-05-02T17:28:20.105Z] WIFI: Entering state 3
[2018-05-02T17:28:20.744Z] SNTP: State change from 0 to 1
[2018-05-02T17:28:20.870Z] INET: Gateway has Ethernet
[2018-05-02T17:28:20.872Z] INET: State change to 2
[2018-05-02T17:28:20.878Z] INET: Connected to a network, waiting for DHCP lease, checking validity with ping
[2018-05-02T17:28:20.969Z] WIFI: Enabling modules for client
[2018-05-02T17:28:20.972Z] WIFI: Entering state 6
[2018-05-02T17:28:20.974Z]
[2018-05-02T17:28:20.975Z]
[2018-05-02T17:28:20.976Z] >WIFI: IP Address: 0.0.0.0
[2018-05-02T17:28:22.939Z] CB: SNTP: State change from 1 to 2
[2018-05-02T17:28:23.838Z] ETH: IP Address: 192.168.0.12
[2018-05-02T17:28:25.834Z] WIFI: IP Address: 192.168.178.53
[2018-05-02T17:28:25.863Z] INET: State change to 3
[2018-05-02T17:28:25.865Z] INET: Ping probe
[2018-05-02T17:28:25.876Z] INET: Ping response from PIC32INT, set as default
[2018-05-02T17:28:25.878Z] INET: State change to 4
[2018-05-02T17:28:26.396Z] LORA: Wait init complete, waiting for application.
[2018-05-02T17:28:26.398Z] LORA: Changing state from 1 to 2
[2018-05-02T17:28:28.427Z] SNTP: State change from 2 to 3
[2018-05-02T17:28:28.766Z] MON: SYS Stack size: 3965
[2018-05-02T17:28:28.768Z] MON: TCPIP Stack size: 3815
[2018-05-02T17:28:28.771Z] MON: APP Stack size: 7951
[2018-05-02T17:28:28.773Z] MON: LoRa Stack size: 3915
[2018-05-02T17:28:28.777Z] MON: heap usage: 164KB (172KB), free: 176KB
[2018-05-02T17:28:29.525Z] SNTP: State change from 3 to 4
[2018-05-02T17:28:30.623Z] SNTP: State change from 4 to 5
[2018-05-02T17:28:37.207Z] SNTP: State change from 5 to 6
[2018-05-02T17:28:37.210Z] SNTP: State change from 6 to 1
[2018-05-02T17:28:37.213Z] INET: Initiated NTP request.
[2018-05-02T17:28:38.304Z] SNTP: State change from 1 to 2
[2018-05-02T17:28:38.753Z] MON: SYS Stack size: 3965
[2018-05-02T17:28:38.755Z] MON: TCPIP Stack size: 3806
[2018-05-02T17:28:38.758Z] MON: APP Stack size: 7951
[2018-05-02T17:28:38.760Z] MON: LoRa Stack size: 3915
[2018-05-02T17:28:38.764Z] MON: heap usage: 167KB (172KB), free: 172KB
[2018-05-02T17:28:39.403Z] SNTP: State change from 2 to 3
[2018-05-02T17:28:40.500Z] SNTP: State change from 3 to 4
[2018-05-02T17:28:41.598Z] SNTP: State change from 4 to 5
[2018-05-02T17:28:41.607Z] SNTP: State change from 5 to 6
[2018-05-02T17:28:41.612Z] SNTP: State change from 6 to 7
[2018-05-02T17:28:41.615Z] INET: State change to 5
[2018-05-02T17:28:41.616Z]
[2018-05-02T17:28:41.617Z] MAIN: Leaving state 2
[2018-05-02T17:28:41.619Z] MAIN: Entering state 3
[2018-05-02T17:28:41.620Z]
[2018-05-02T17:28:41.622Z] CNFG: Load online user config state change to 4
[2018-05-02T17:28:41.624Z] HTTP: Close active socket 0
[2018-05-02T17:28:41.626Z] HTTP: Starting connection
[2018-05-02T17:28:41.635Z] HTTPS: Connection Opened: Starting TLS Negotiation
[2018-05-02T17:28:41.638Z] HTTP: Wait for TLS Connect
[2018-05-02T17:28:42.088Z] HTTP: TLS Connection Opened: Starting Clear Text Communication
[2018-05-02T17:28:42.118Z] HTTP: Got 1477 bytes
[2018-05-02T17:28:44.118Z] HTTP: Connection Closed
[2018-05-02T17:28:44.120Z] HTTP: Close active socket 1
[2018-05-02T17:28:44.124Z] CONF: Parsing response token: HTTP/1.1 200 OK
[2018-05-02T17:28:44.130Z] CONF: ROUTER URL: mqtts://bridge.eu.thethings.network:8883
[2018-05-02T17:28:44.131Z]
[2018-05-02T17:28:44.134Z] CNFG: Load online user config state change to 6
[2018-05-02T17:28:46.126Z] FREQ: APP_URL_Buffer: https://account.thethingsnetwork.org/api/v2/frequency-plans/EU_863_870
[2018-05-02T17:28:46.128Z] HTTP: Starting connection
[2018-05-02T17:28:46.140Z] HTTPS: Connection Opened: Starting TLS Negotiation
[2018-05-02T17:28:46.142Z] HTTP: Wait for TLS Connect
[2018-05-02T17:28:46.637Z] HTTP: TLS Connection Opened: Starting Clear Text Communication
[2018-05-02T17:28:46.650Z] HTTP: Got 1232 bytes
[2018-05-02T17:28:48.649Z] HTTP: Connection Closed
[2018-05-02T17:28:48.652Z] HTTP: Close active socket 1
[2018-05-02T17:28:48.653Z]
[2018-05-02T17:28:48.656Z] CNFG: Load online user config state change to 7
[2018-05-02T17:28:48.657Z]
[2018-05-02T17:28:48.659Z] CNFG: Configuring LoRa module
[2018-05-02T17:28:48.662Z] LORA: Changing state from 2 to 4
[2018-05-02T17:28:48.665Z] LORA: Starting reconfiguration
[2018-05-02T17:28:48.670Z] LORA: version: 01
[2018-05-02T17:28:48.676Z] LORA: Configuration failed, retry
[2018-05-02T17:28:48.703Z] LORA: Starting reconfiguration
[2018-05-02T17:28:48.754Z] MON: SYS Stack size: 2837
[2018-05-02T17:28:48.755Z] MON: TCPIP Stack size: 3806
[2018-05-02T17:28:48.756Z] MON: APP Stack size: 3283
[2018-05-02T17:28:48.757Z] MON: LoRa Stack size: 3857
[2018-05-02T17:28:48.757Z] MON: heap usage: 168KB (253KB), free: 171KB
[2018-05-02T17:28:54.663Z] LORA: version: 01
[2018-05-02T17:28:54.680Z] LORA: Configuration failed, retry
[2018-05-02T17:28:54.696Z] LORA: Starting reconfiguration
[2018-05-02T17:28:58.731Z] MON: SYS Stack size: 2837
[2018-05-02T17:28:58.733Z] MON: TCPIP Stack size: 3806
[2018-05-02T17:28:58.735Z] MON: APP Stack size: 3283
[2018-05-02T17:28:58.738Z] MON: LoRa Stack size: 3857
[2018-05-02T17:28:58.742Z] MON: heap usage: 168KB (253KB), free: 171KB
[2018-05-02T17:29:00.670Z] LORA: version: 01
[2018-05-02T17:29:00.687Z] LORA: Configuration failed, retry
[2018-05-02T17:29:00.703Z] LORA: RESET MODULE
[2018-05-02T17:29:03.556Z] LORA: ChaSNTP: State change from 0 to 0
[2018-05-02T17:29:03.559Z] SNTP: State change from 0 to 0
[2018-05-02T17:29:03.561Z]
[2018-05-02T17:29:03.563Z]
[2018-05-02T17:29:03.564Z]
[2018-05-02T17:29:03.566Z] **************************
[2018-05-02T17:29:03.568Z] *   The Things Network   *
[2018-05-02T17:29:03.571Z] *      G A T E W A Y     *
[2018-05-02T17:29:03.572Z] **************************
[2018-05-02T17:29:03.577Z] Firmware name: AmazingAckermann, type: 0, version: 1.0.4, commit: a7beae91, timestamp: 1525259181
[2018-05-02T17:29:03.598Z] Bootloader revision: 1, commit: 7167873a, timestamp: 1496411298
[2018-05-02T17:29:03.600Z] Build time: May  2 2018 11:07:39
[2018-05-02T17:29:03.613Z] Reboot reason: 0x10
[2018-05-02T17:29:03.620Z] BOOT: (persisted info) 6F 72 72 65 01 03 8B 2C E7 16 0D 49 B2 32 50 B4

So, I’ve put back the SD card to get 1.0.3, commit: 2c56ce09 again, which was running fine so far. After a few reboots that is running again now. But this 1.0.3 still gives me https://github.com/TheThingsProducts/gateway/issues/8 a few times a week.

A week ago i have flashed (pickit3) the gateway with a stable version.
Bootloader:r2-c463e87e (2018-02-23T14:42:40Z)
Firmware:v1.0.2-475aef56 (2018-03-15T09:35:00Z)

Reset the gateway fot 5 seconds. Delete the gateway in the backend. Activate the gateway and give it an other name in the backend. Now the gateway works for a week.

Just got it copied on the SD and is running now: 1.0.4
This gateway is running on WiFi.

No luck here… After inserting a SD card with the beta firmware, the gateway updated successfully

Firmware name: AmazingAckermann, type: 0, version: 1.0.4, commit: a7beae91, timestamp: 1525259181
Bootloader revision: 1, commit: 7167873a, timestamp: 1496411298
Build time: May  2 2018 11:07:39
Reboot reason: 0x40
BOOT: (persisted info) 6F 72 72 65 01 03 BD DD FF FE F9 BA 67 7B 2D E7

The gateway went online and started to receive couples of package but after few minutes it restarted

MQTT: Sending status packet
MQTT: Sending status succeeded: 8
MON: SYS Stack size: 2845
MON: TCPIP Stack size: 3823
MON: APP Stack size: 3251
MON: LoRa Stack size: 3857
MON: heap usage: 278KB (279KB), free: 61KB
SNTP: State change from 0 to 0
SNTP: State change from 0 to 0


**************************
*   The Things Network   *
*      G A T E W A Y     *
**************************
Firmware name: AmazingAckermann, type: 0, version: 1.0.4, commit: a7beae91, timestamp: 1525259181
Bootloader revision: 1, commit: 7167873a, timestamp: 1496411298
Build time: May  2 2018 11:07:39
Reboot reason: 0x10
BOOT: (persisted info) 6F 72 72 65 01 10 BD DD FF FE F9 BA 67 7B 2D E7

But then got stuck in a reboot loop. This is the full log of such a reboot loop

**************************
*   The Things Network   *
*      G A T E W A Y     *
**************************
Firmware name: AmazingAckermann, type: 0, version: 1.0.4, commit: a7beae91, timestamp: 1525259181
Bootloader revision: 1, commit: 7167873a, timestamp: 1496411298
Build time: May  2 2018 11:07:39
Reboot reason: 0x10
BOOT: (persisted info) 6F 72 72 65 01 10 BD DD FF FE F9 BA 67 7B 2D E7




WIFI: Entering state 0
WIFI: Entering SCAN state 0

MAIN: Initialisation complete
LORA: Changing state from 0 to 0

MAIN: Leaving state 0
MAIN: Entering state 1
FLASH: Magic bytes found: wifi config present
FLASH: Magic bytes found: activation data present
FLASH: Magic bytes found: FOTA data present
FLASH: Loading Firmware Data
CNFG: (Firmware HASH (sha256)) 65 0D 50 41 6F 3C 7A 21 B0 6A 61 4A FF BE C3 DD 3F 8A 2C 8F D1 98 70 9F 71 EF C5 53 6A 7D 31 AF
FLASH: Loading WiFi Data
CNFG: WiFi SSID:      <REMOVED>
CNFG: WiFi key:       ***
CNFG: WiFi conn_type: 1
CNFG: WiFi sec_type:  4
FLASH: Loading Activation Data
CNFG: Gateway ID:         <REMOVED>
CNFG: Gateway Key:        ***
CNFG: Account Server URL: https://account.thethingsnetwork.org
CNFG: Locked:             true
CNFG: Locked first time:  false

MAIN: Leaving state 1
MAIN: Entering state 2
INET: State change to 0
LORA: Initialisation complete
LORA: Changing state from 0 to 1
WIFI: Entering state 1
ETH: IP Address: 0.0.0.0
WIFI: Entering state 4
WIFI: Entering SCAN state 1
SNTP: State change from 0 to 1
Scan is completed successfully
WIFI: Entering SCAN state 2
WIFI: Entering SCAN state 5
WIFI: Entering SCAN state 0
WIFI: Entering state 2
WIFI: Disabling modules
Head magic match void: trying to free an already freed block, ignore
SNTP: State change from 1 to 1
WIFI: Entering state 3
WIFI: Enabling modules for client
WIFI: Entering state 6


>WIFI: IP Address: 0.0.0.0
CB: INET: Gateway has WiFi
INET: State change to 2
INET: Connected to a network, waiting for DHCP lease, checking validity with ping
SNTP: State change from 1 to 2
LORA: Wait init complete, waiting for application.
LORA: Changing state from 1 to 2
WIFI: IP Address: <REMOVED>
MON: SYS Stack size: 3965
MON: TCPIP Stack size: 3828
MON: APP Stack size: 7980
MON: LoRa Stack size: 3883
MON: heap usage: 163KB (172KB), free: 177KB
INET: State change to 3
INET: Ping probe
INET: Error sending probe on Eth
INET: Ping response from MRF24WN, set as default
INET: State change to 4
SNTP: State change from 2 to 3
SNTP: State change from 3 to 4
SNTP: State change from 4 to 5
SNTP: State change from 5 to 6
SNTP: State change from 6 to 7
INET: State change to 5

MAIN: Leaving state 2
MAIN: Entering state 3

CNFG: Load online user config state change to 4
HTTP: Close active socket 0
HTTP: Starting connection
HTTPS: Connection Opened: Starting TLS Negotiation
HTTP: Wait for TLS Connect
HTTP: TLS Connection Opened: Starting Clear Text Communication
HTTP: Got 1293 bytes
HTTP: Connection Closed
HTTP: Close active socket 1
CONF: Parsing response token: HTTP/1.1 200 OK
CONF: ROUTER URL: mqtts://bridge.eu.thethings.network:8883

CNFG: Load online user config state change to 6
FREQ: APP_URL_Buffer: https://account.thethingsnetwork.org/api/v2/frequency-plans/EU_863_870
HTTP: Starting connection
MON: SYS Stack size: 2870
MON: TCPIP Stack size: 3828
MON: APP Stack size: 3269
MON: LoRa Stack size: 3883
MON: heap usage: 171KB (249KB), free: 168KB
HTTPS: Connection Opened: Starting TLS Negotiation
HTTP: Wait for TLS Connect
HTTP: TLS Connection Opened: Starting Clear Text Communication
HTTP: Got 1232 bytes
HTTP: Connection Closed
HTTP: Close active socket 1

CNFG: Load online user config state change to 7

CNFG: Configuring LoRa module
LORA: Changing state from 2 to 4
LORA: Starting reconfiguration
LORA: version: 01
MON: SYS Stack size: 2870
MON: TCPIP Stack size: 3828
MON: APP Stack size: 3269
MON: LoRa Stack size: 3853
MON: heap usage: 167KB (249KB), free: 172KB
SNTP: State change from 0 to 0
SNTP: State change from 0 to 0


**************************
*   The Things Network   *
*      G A T E W A Y     *
**************************
Firmware name: AmazingAckermann, type: 0, version: 1.0.4, commit: a7beae91, timestamp: 1525259181
Bootloader revision: 1, commit: 7167873a, timestamp: 1496411298
Build time: May  2 2018 11:07:39
Reboot reason: 0x10
BOOT: (persisted info) 6F 72 72 65 01 10 BD DD FF FE F9 BA 67 7B 2D E7
