It’s also great that TTGO removed the slider-powerswitch. I already broke 2 of them but they are so nice at LilyGo and promised me the new version of the board with the combined power/reset pushbutton!


#472

That is good customer service.


(Verkehrsrot) #473

They promise a lot, but do they deliver?


#474

What do they promise?


(Bsiege) #475

Another one spotted today. GPS and battery mount included.


(Arnas) #476

payload size(bytes) / estimated air time= estimated data transfer rate? am I wrong?


#477

Nice! This one without display (but can be connected when needed). Link?


(Bsiege) #478

LilyGo (Where else? :wink: )


#479

US $36.95 … prices are getting crazy :astonished:


#480

Important TTGO LoRa32 V2 Errata

  • Different from what was mentioned before: LoRa Reset is NOT connected to GPIO14.
    LoRa Reset is NOT connected to ANY GPIO port but is hard-wired to the ESP32 Chip Enable (EN).
    This means that for LMIC, GPIO14 must no longer be specified as the LoRa Reset pin.
    (Diagram on Lilygo’s LoRa32 V2 github repository shows this incorrectly and also contains other errors.)

  • The microSD card slot can be used as a regular microSD card reader/writer.
    Which is great for storing measurements, location tracking data etc.
    The SD card interface uses GPIO14 for SD_CLK but it is now clear that this does not conflict with the LoRa module. (It also does not conflict with pins for the embedded flash memory in the ESP32-Pico-D4.)

The LoRa Reset information is based on my own testing (after having received feedback from Lilygo that has shown to be only partially correct). I have not yet tested the SD card functionality.

I have updated the pinout diagram to v3.0, included here: TTGO LoRa32 V2.0 Pinout v3.0.pdf (2.3 MB)

0%20690x450

(The opening topic has been updated with above information.)


(LoRaTracker) #481

And if you are using the Arduino ESP32 setup, you will find that the file.flush() function does not work on the SD. So you need to use file.close() instead.


#482

Looking for answer, please have a look at: What is the function of the SX127x / RFM9x reset pin in LMIC?


#483

Did anyone use the microSD card reader/writer on the TTGO LoRa32 V2 already?
Please share your experiences.


(Verkehrsrot) #484

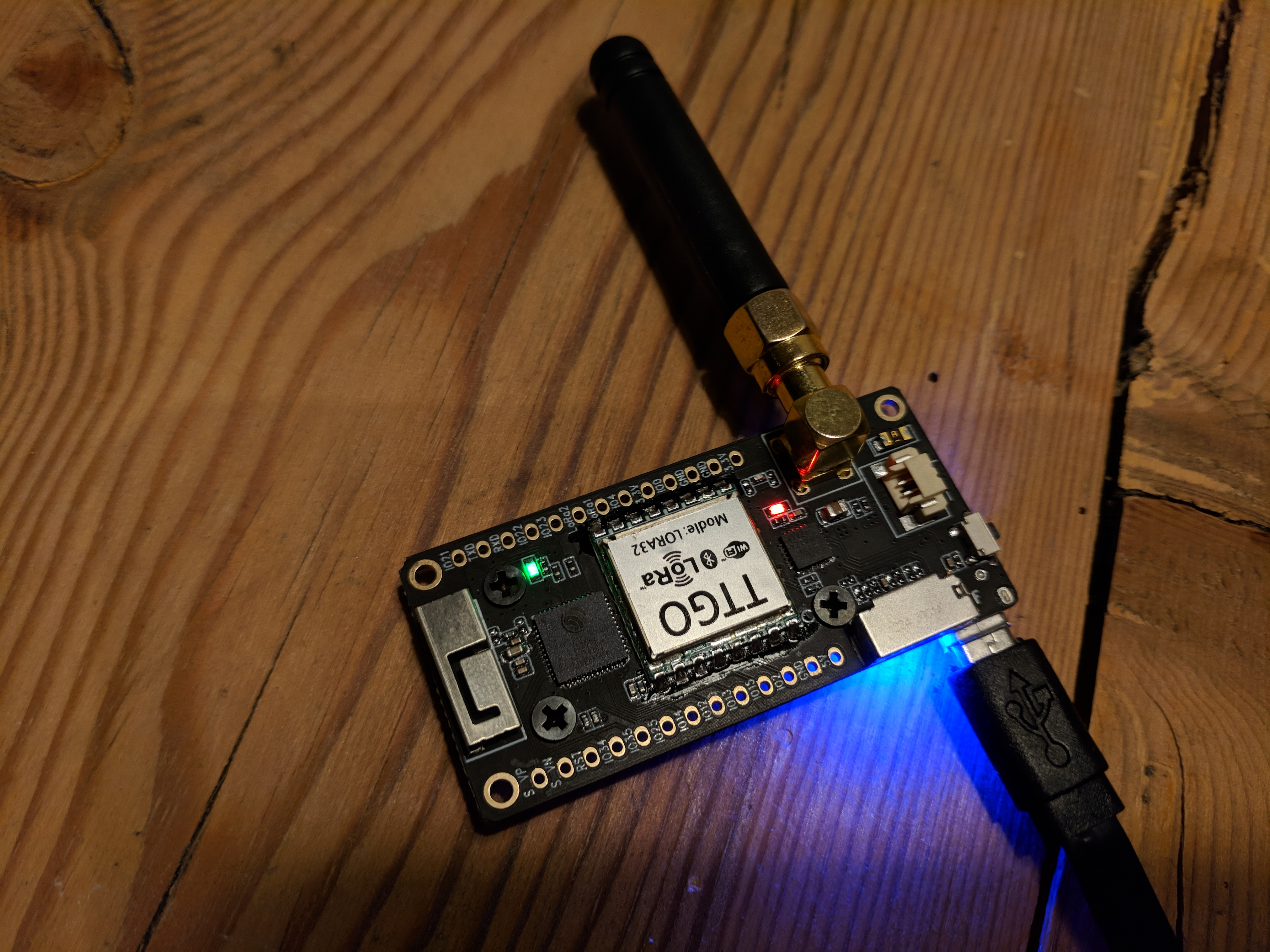

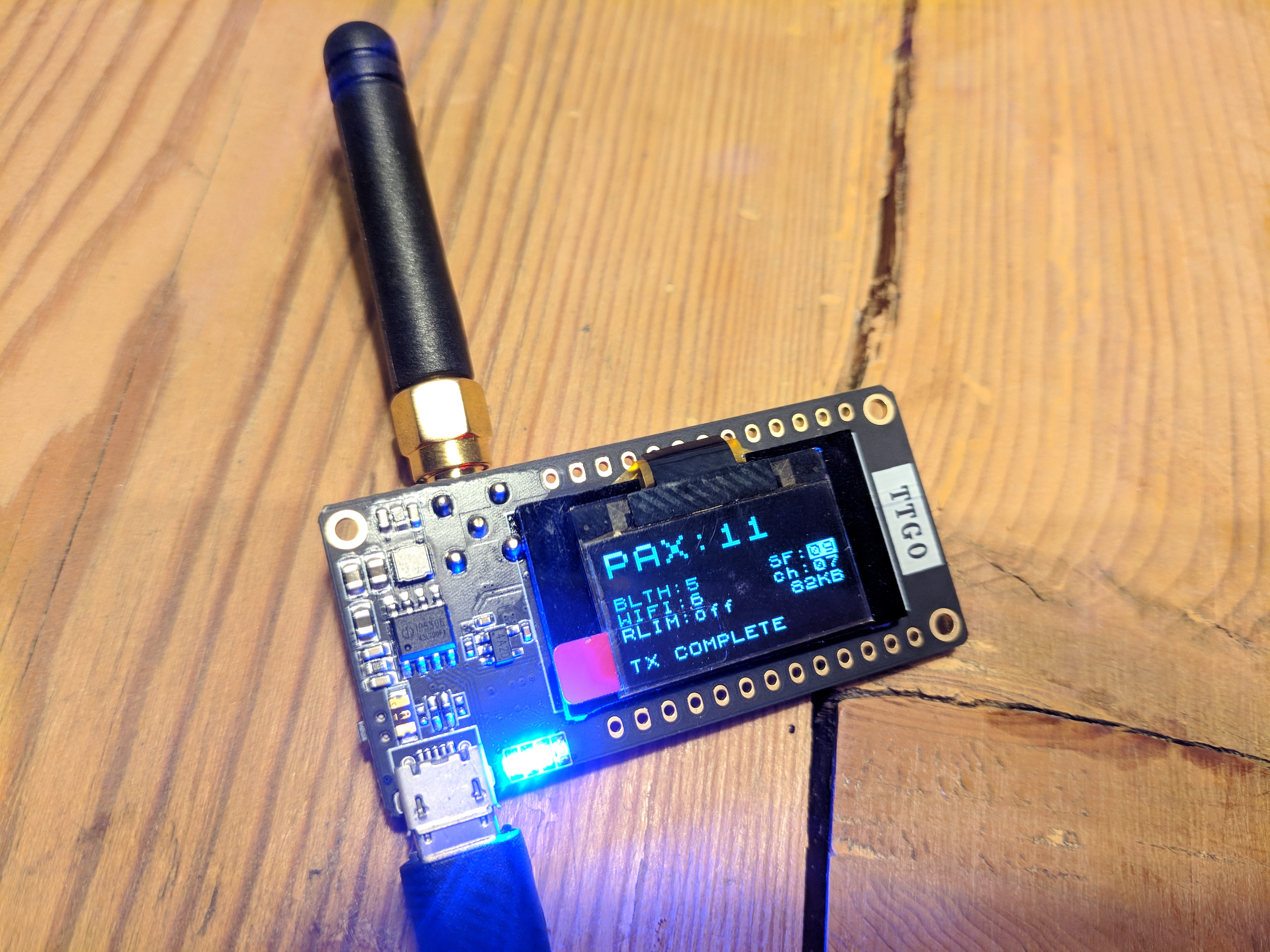

New arrival from Aliexpress and LiliGo: TTGO v2.1, running paxcounter code v1.3.51. Works out of the box, no more wiring necessary.
IMG_20180523_225925
IMG_20180523_225934


(Erik the VKing) #485

Received today as promised by GREAT customer service 1 brand new version 2.1 board of the TTGO Lora32, shipped with kind regards of www.ttgobbs.com It came in a nice plastic transparent case with battery cable and headers included, but also a small whip antenna which gave me VSWR 1.01 on my vector analyzer. Thanks LilyGo & TTGO !!
It’s great that there’s no more sliderswitch, the antenna connector is SMA and on battery power the reset acts also as on/off pushbutton…
Have to test that out and I’ll let you know all about the cardwriter !


(Jose Marcelino) #486

Got the new TTGO LoRa32 but with “Fees to pay” Royal Mail of £12.14 (£4.14 VAT + handling fees)


(Grafisoft) #487

Why anybody try to use a lorawan module (microchip, Rak or other with uC added) as a ESp8266? Modules have a PIC o STM uC integrated and they have most accessible pins to use it.


#488

is that a question ? :sunglasses:


(Grafisoft) #489

Yes :sweat:


#490

OK :sunglasses:
