Big LoRa32u4 boards topic

End Devices (Nodes) LMIC
147

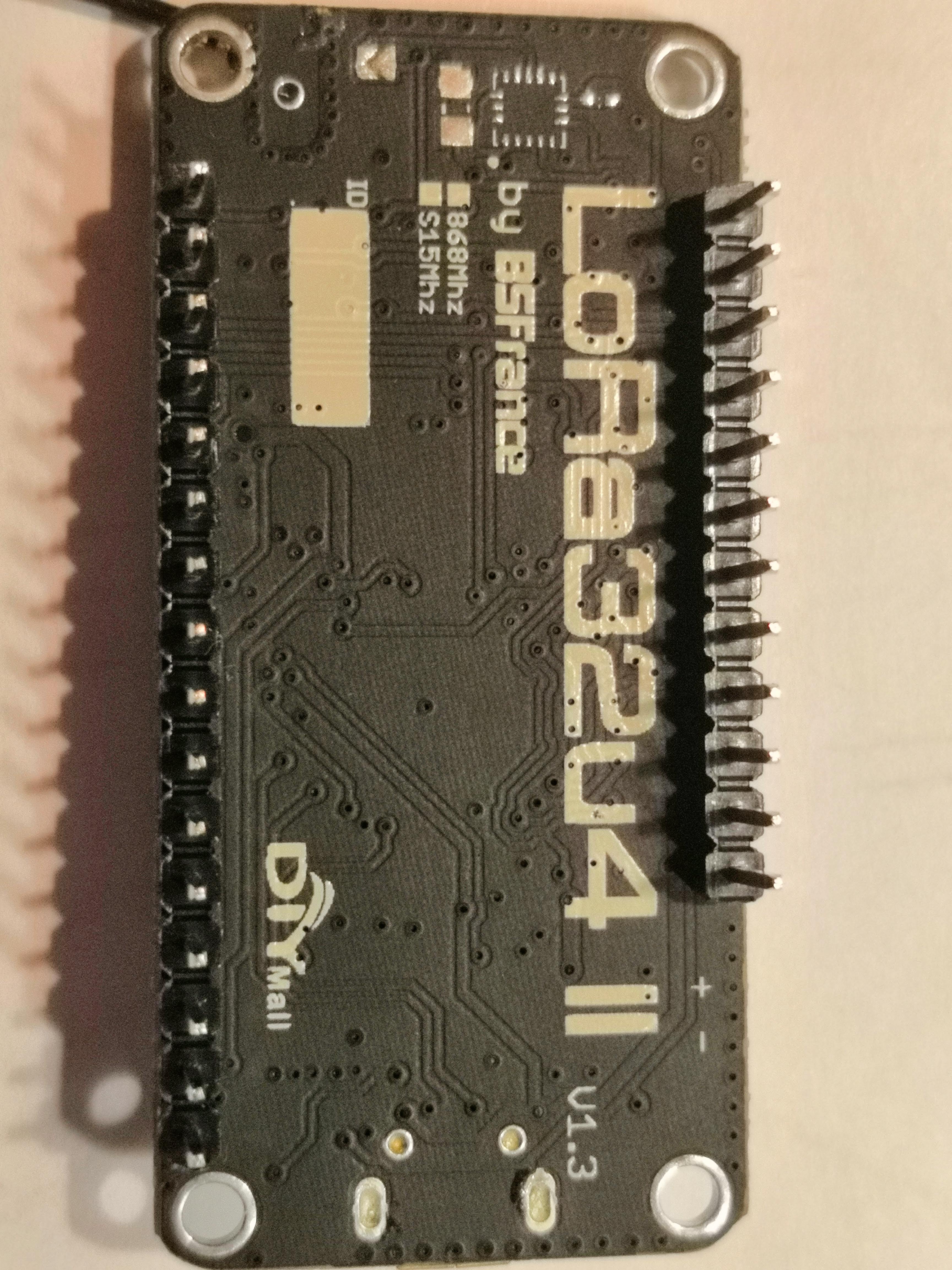

IMG_20190626_230352

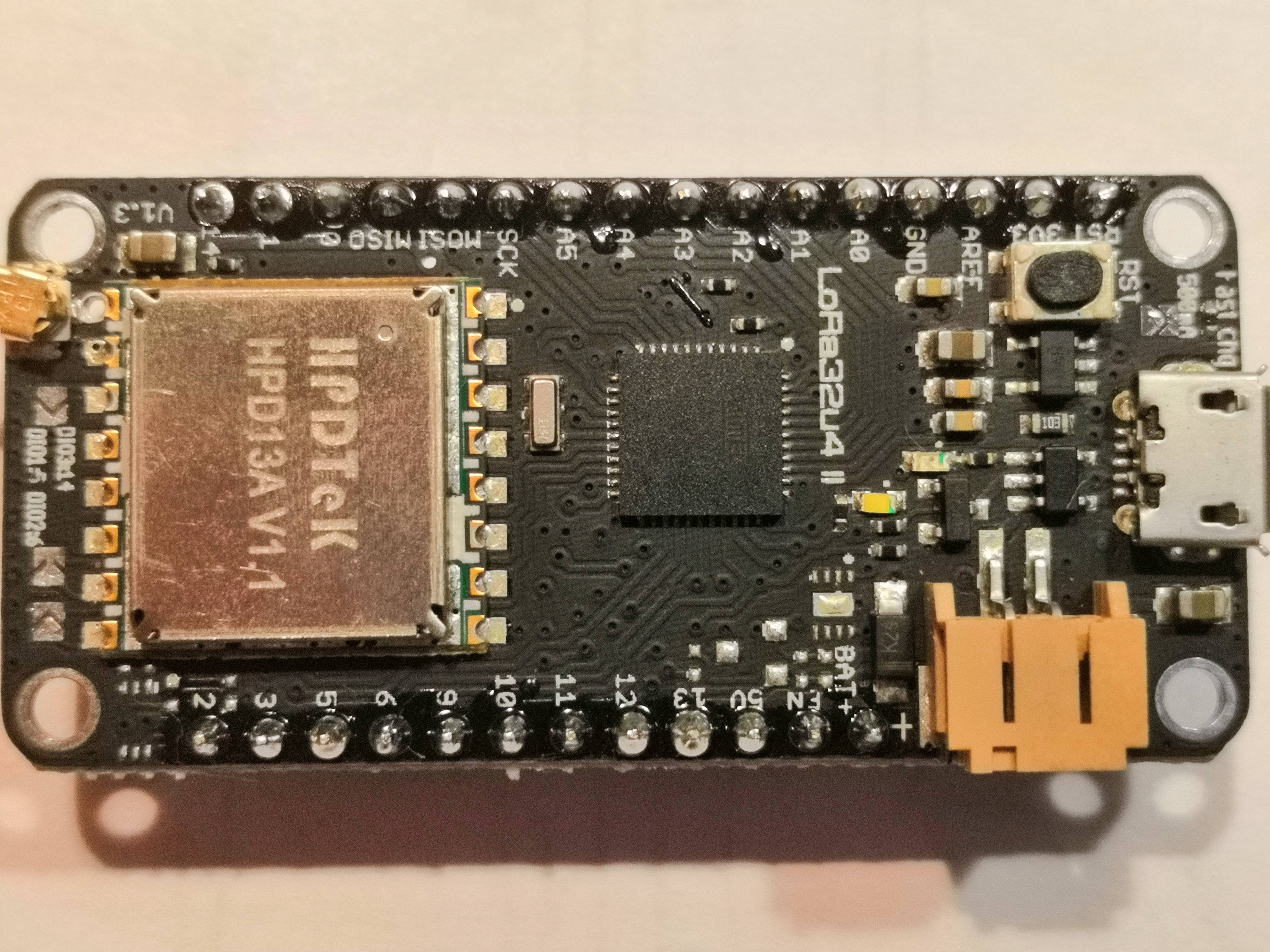

IMG_20190626_230406

2 Likes
148

how do I send messages using this board only on one SF and one Frequency?

149

Hi,

I guess you use a single channel gateway :wink:
This answer is not specific to LoRa32u4 board.

To force Spread Factor, look around LMIC_setDrTxpow() examples.
To force channel selection, define and disable channel using LMIC_setupChannel() and LMIC_disableChannel().

Good luck.

150

Hey omuron, did you make any progress on this? Iā€™m seeing values >5 but floating with the same standard code - maybe the v1.3 boards have the voltage divider disconnected (or mosfet driven, as surmised above, but I didnā€™t spot a new mosfet?).

There is still that bridge pad on the underneath thatā€™s unexplained.

Thanks,
Bruce

151

Still no official datasheet :confused:
I guess you have to find how to activate this battery mosfet by yourself (or ask BSFrance support).

Good luck!

152

As far as the mosfet goes, I did try bringing PB0 high (and lowā€¦just for fun) and this didnā€™t change the readings. PB0 on the 32u4 is SS/D17 right? I saw no change at least while it was on USB when I defined it as an output and took it low or high, then read A9. Even with a delay.

If there is a mostfet then it appears to be on in any case, Iā€™m using v1.3 of the BSFrance Lora32u4 board, and the following code seems to work. Iā€™m concluding itā€™s basically pre-scaled to between 0-1023 for the full battery voltage alreadyā€¦which is a bit special. I saw the voltage go up all day and top out at ~1023, measured the BAT pin at 4.2v

#define VBATPIN A9
    float measuredvbat = analogRead(VBATPIN);
    measuredvbat *= 4.2;  // Multiply by 4.2V, our max batt voltage
    measuredvbat /= 1024; // convert to voltage
    Serial.print("VBat: " ); Serial.println(measuredvbat);

The battery charger led turns off at 4.2v too ā€“ Iā€™m unclear how to turn it off otherwise, although Iā€™d like to.

153

Finally spec for v 1.3
3
(Click right mouse button and select ā€˜Open image in new tabā€™ to view full image size.)

4 Likes
154

Right side is missing, can you share source file?

1 Like
155

Tip, If pic is too big to show on forum you can right click and ā€˜view imageā€™ in e.g. firefox - or copy/paste to image programme (Paint works!) - then shows full picture/higher res image :wink:

1 Like
156

So itā€™s definitively PB0 from the new docs - thanks! I will have another go this time using the registers instead of the Arduino mapped pins.

157

right click - View image

158

That was so obvious that I missed that one :wink: Thanks

159

Does anyone know about ATSHA204 and I2C option?

160

No direct knowledge, but Iā€™m assuming the I2C pins are connected to that pad on the back and you can fill that space with one of those chips? Also D14 optionally connected, which explains the chevron pad on the back.

In other news, hereā€™s some charger (and voltage measuring) code - tested working! The orange LED turns on and off on command.

void charger(bool on) {
  DDRB |= (1<<PB0); // set PBO as output

  if(on) {
    PORTB |= (1<<PB0);
  } else {
    PORTB &= ~(1<<PB0);
  }
}
1 Like
161

Anyone solved problem with small flash memory size ? I am trying to add QLED display driven by GitHub - olikraus/u8g2: U8glib library for monochrome displays, version 2, anyway complete code (Lora + display) is too big. IDE returns

Sketch uses 32044 bytes (111%) of program storage space. Maximum is 28672 bytes.

Spec shows 32K of flash, 2K of RAM (BSFrance LoRa32u4 II Lora Development Board v 1.3)

162

You can disable part of LMIC to save memory: Big LoRa32u4 boards topic . And then reduce prints as much as possible, and avoid to use the String object.

163

Youā€™ve turned off DEBUG for the Lora code, and PING and BEACON?

e.g.

#define DISABLE_PING
#define DISABLE_BEACONS

in your lmic_project_config.h and maybe #undef DEBUG

1 Like
164

Assumes that the MCCI LoRaWAN LMIC library is used.

165

Thatā€™s the worst drawback of this board.
If shrinking LMIC library is not enough, I see no easy answer. I guess you can find an alternative (and lighter) library for your LCD.

166

Tip for PlatformIO:

When using PlatformIO, project scoped settings can be specified in platformio.ini (preferred) instead of in lmic_project_config.h. The Arduino IDE unfortunately does not provide such option.

lmic_project_config.h defines project scoped settings at library sourcecode level instead of project level. Changing settings in lmic_project_config.h requires modification of library sourcecode which is maintenance intensive, error prone and difficult to automate and will be overwritten by library updates. Using platformio.ini for these settings instead is therefore preferred.

Functional equivalents for #define DISABLE_PING and #define DISABLE_BEACONS are shown in below platformio.ini example.

Note: Undefining DEBUG is possible with ā€˜-U DEBUGā€™ but this will only have effect if DEBUG was defined on the command line. It will not overrule any ā€˜#define DEBUGā€™ in sourcecode.

; File: platformio.ini

[env:lora32u4II]
platform = atmelavr
board = lora32u4II
framework = arduino

monitor_speed = 115200

lib_deps =
    MCCI LoRaWAN LMIC library

build_flags =
	; LMIC build options:
	-D DISABLE_PING
	-D DISABLE_BEACONS
    ; -D LMIC_DEBUG_LEVEL=2
    ; -D LMIC_PRINTF_TO=Serial
	; MCCI LoRaWAN LMIC library specific build options:
    ; Set suppress flag to suppress lmic_project_config.h
	; to allow project related settings to be defined here instead.
    -D ARDUINO_LMIC_PROJECT_CONFIG_H_SUPPRESS
    ; -D CFG_in866=1
    -D CFG_eu868=1
    ; -D CFG_us915=1
    ; -D CFG_au921=1
    ; -D CFG_as923=1
    ; -D CFG_as923jp=1
    -D CFG_sx1276_radio=1
    ; -D LMIC_USE_INTERRUPTS
2 Likes
