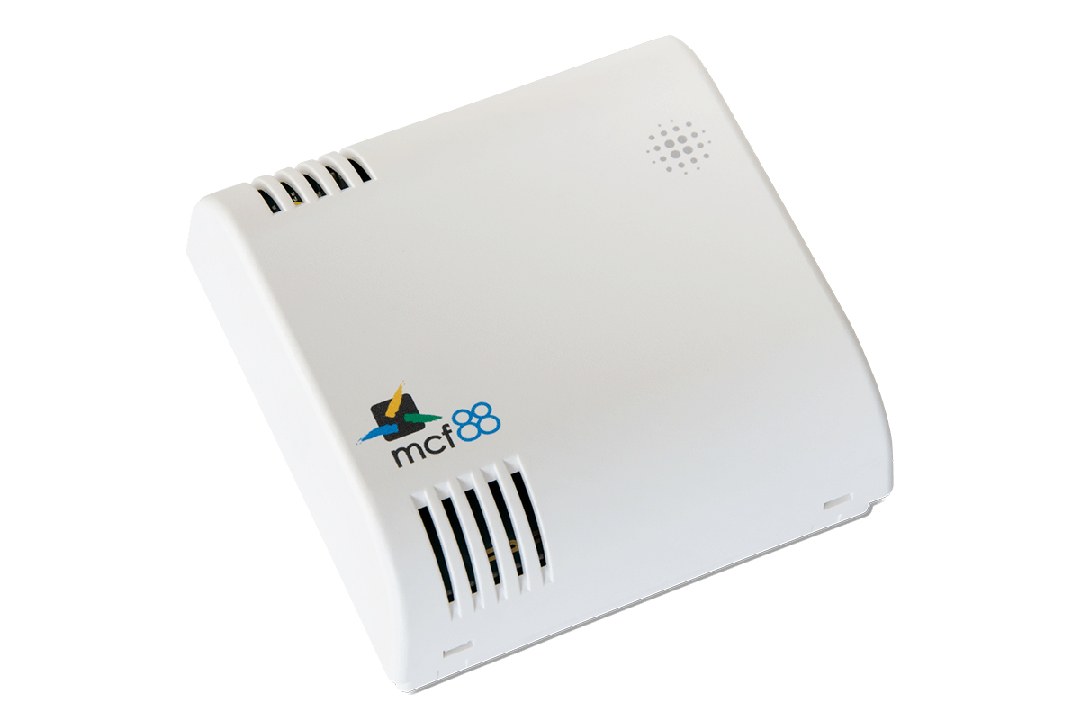

Mcf88 MCF-LW12TER

AymB · August 21, 2018, 10:00pm

Any support questions you might have can be asked here:
https://www.thethingsnetwork.org/marketplace/product/mcf-lw12ter

DCH_Project · May 2, 2019, 7:09am

What dos decoder look like for this sensor?

donsez · February 10, 2021, 8:32am

Hi,
I have written the decoder

github.com

CampusIoT/payload-codec/blob/master/src/main/ttn_loraappserver/mcf88/mcf88_lw12terpm_codec.js


/*
 * Decoder function for The Things Network to unpack the payload
 * of MCF88's LW12TERPM (LoRaWAN® outdoor PM and environmental sensor)
 * https://www.mcf88.it/prodotto/mcf-lw12terpm/
 * Author: Didier DONSEZ, Université Grenoble Alpes, LIG + Polytech Grenoble
 */

// Constantes d'approximation
// Voir http://en.wikipedia.org/wiki/Dew_point pour plus de constantes
var a = 17.27;
var b = 237.7;

/** Fonction de calcul rapide du point de rosée (dew point) en fonction de la température et de l'humidité ambiante */
function dewPoint(celsius, humidity) {
  // Calcul (approximation)
  var temp = (a * celsius) / (b + celsius) + Math.log(humidity * 0.01);
  return (b * temp) / (a - temp);
}

This file has been truncated. show original

I can provide the Grafana dashboard for it.

francozampicinini · February 7, 2022, 12:02pm

http://www.enginko.com/support/doku.php
