SX1302 Using Semtech packet forwarder can not register the gateway

1 2

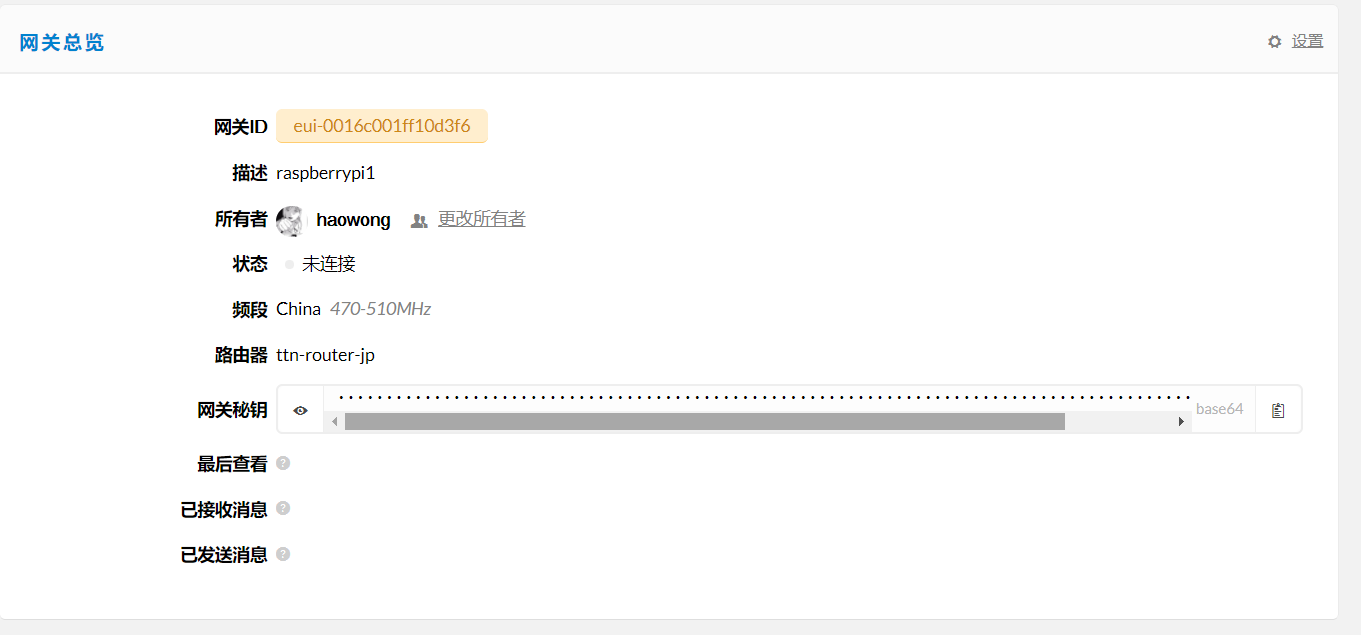

I don’t know what’s wrong with it?

Your configuration seems to point to an IP address, not asia-se.thethings.network. Can you change that and restart the packet forwarder?

Next time please post the log as quoted text, not an image. Makes it easier to read.

Sorry sir, here are the new logs.

pi@raspberrypi:~/gw1302s/bin $ ./lora_pkt_fwd
*** Packet Forwarder ***
Version: 1.0.5
*** SX1302 HAL library version info ***
Version: 1.0.5;
***
INFO: Little endian host
INFO: found configuration file global_conf.json, parsing it
INFO: global_conf.json does contain a JSON object named SX130x_conf, parsing SX1302 parameters
INFO: spidev_path /dev/spidev0.0, lorawan_public 1, clksrc 0, full_duplex 0
INFO: antenna_gain 0 dBi
INFO: Configuring legacy timestamp
INFO: Configuring Tx Gain LUT for rf_chain 0 with 16 indexes for sx1250
INFO: radio 0 enabled (type SX1250), center frequency 474600000, RSSI offset -207.000000, tx enabled 1, single input mode 1
INFO: radio 1 enabled (type SX1250), center frequency 475400000, RSSI offset -207.000000, tx enabled 0, single input mode 1
INFO: Lora multi-SF channel 0>  radio 0, IF -300000 Hz, 125 kHz bw, SF 5 to 12
INFO: Lora multi-SF channel 1>  radio 0, IF -100000 Hz, 125 kHz bw, SF 5 to 12
INFO: Lora multi-SF channel 2>  radio 0, IF 100000 Hz, 125 kHz bw, SF 5 to 12
INFO: Lora multi-SF channel 3>  radio 0, IF 300000 Hz, 125 kHz bw, SF 5 to 12
INFO: Lora multi-SF channel 4>  radio 1, IF -300000 Hz, 125 kHz bw, SF 5 to 12
INFO: Lora multi-SF channel 5>  radio 1, IF -100000 Hz, 125 kHz bw, SF 5 to 12
INFO: Lora multi-SF channel 6>  radio 1, IF 100000 Hz, 125 kHz bw, SF 5 to 12
INFO: Lora multi-SF channel 7>  radio 1, IF 300000 Hz, 125 kHz bw, SF 5 to 12
INFO: Lora std channel> radio 1, IF -200000 Hz, 250000 Hz bw, SF 7, Explicit header
INFO: FSK channel> radio 1, IF 300000 Hz, 125000 Hz bw, 50000 bps datarate
INFO: global_conf.json does contain a JSON object named gateway_conf, parsing gateway parameters
INFO: gateway MAC address is configured to 0016C001FF10D3F6
INFO: server hostname or IP address is configured to "asia-se.thethings.network"
INFO: upstream port is configured to "1700"
INFO: downstream port is configured to "1700"
INFO: downstream keep-alive interval is configured to 10 seconds
INFO: statistics display interval is configured to 30 seconds
INFO: upstream PUSH_DATA time-out is configured to 100 ms
INFO: packets received with a valid CRC will be forwarded
INFO: packets received with a CRC error will NOT be forwarded
INFO: packets received with no CRC will NOT be forwarded
INFO: Beaconing period is configured to 0 seconds
INFO: Beaconing signal will be emitted at 869525000 Hz
INFO: Beaconing datarate is set to SF9
INFO: Beaconing modulation bandwidth is set to 125000Hz
INFO: Beaconing TX power is set to 14dBm
INFO: Beaconing information descriptor is set to 0
INFO: global_conf.json does contain a JSON object named debug_conf, parsing debug parameters
INFO: got 2 debug reference payload
INFO: reference payload ID 0 is 0xCAFE1234
INFO: reference payload ID 1 is 0xCAFE2345
INFO: setting debug log file name to loragw_hal.log
CoreCell reset through GPIO7...
INFO: Configuring SX1250_0 in single input mode
INFO: Configuring SX1250_1 in single input mode
INFO: [main] concentrator started, packet can now be received
INFO: concentrator EUI: 0x0016c001ff10d3f6

##### 2020-11-09 15:30:38 GMT #####
### [UPSTREAM] ###
# RF packets received by concentrator: 0
# CRC_OK: 0.00%, CRC_FAIL: 0.00%, NO_CRC: 0.00%
# RF packets forwarded: 0 (0 bytes)
# PUSH_DATA datagrams sent: 0 (0 bytes)
# PUSH_DATA acknowledged: 0.00%
### [DOWNSTREAM] ###
# PULL_DATA sent: 3 (0.00% acknowledged)
# PULL_RESP(onse) datagrams received: 0 (0 bytes)
# RF packets sent to concentrator: 0 (0 bytes)
# TX errors: 0
### SX1302 Status ###
# SX1302 counter (INST): 30894782
# SX1302 counter (PPS):  0
# BEACON queued: 0
# BEACON sent so far: 0
# BEACON rejected: 0
### [JIT] ###
src/jitqueue.c:442:jit_print_queue(): INFO: [jit] queue is empty
#--------
src/jitqueue.c:442:jit_print_queue(): INFO: [jit] queue is empty
### [GPS] ###
# GPS sync is disabled
### Concentrator temperature: 0 C ###
##### END #####

JSON up: {"stat":{"time":"2020-11-09 15:30:38 GMT","rxnb":0,"rxok":0,"rxfw":0,"ackr":0.0,"dwnb":0,"txnb":0,"temp":0.0}}

##### 2020-11-09 15:31:08 GMT #####
### [UPSTREAM] ###
# RF packets received by concentrator: 0
# CRC_OK: 0.00%, CRC_FAIL: 0.00%, NO_CRC: 0.00%
# RF packets forwarded: 0 (0 bytes)
# PUSH_DATA datagrams sent: 1 (122 bytes)
# PUSH_DATA acknowledged: 0.00%
### [DOWNSTREAM] ###
# PULL_DATA sent: 3 (0.00% acknowledged)
# PULL_RESP(onse) datagrams received: 0 (0 bytes)
# RF packets sent to concentrator: 0 (0 bytes)
# TX errors: 0
### SX1302 Status ###
# SX1302 counter (INST): 60895173
# SX1302 counter (PPS):  0
# BEACON queued: 0
# BEACON sent so far: 0
# BEACON rejected: 0
### [JIT] ###
src/jitqueue.c:442:jit_print_queue(): INFO: [jit] queue is empty
#--------
src/jitqueue.c:442:jit_print_queue(): INFO: [jit] queue is empty
### [GPS] ###
# GPS sync is disabled
### Concentrator temperature: 0 C ###
##### END #####

JSON up: {"stat":{"time":"2020-11-09 15:31:08 GMT","rxnb":0,"rxok":0,"rxfw":0,"ackr":0.0,"dwnb":0,"txnb":0,"temp":0.0}}

From the logs it looks there is no communication with the back-end. Is the gateway connected to a firewalled network? If so, is UDP port 1700 outgoing and related traffic incoming allowed?

When I use the chirpstack, I don’t have any problem.So I don’t think it’s due to anything wrong with my gateway.

I can show the logs:

pi@raspberrypi:~/gw1302s/bin $ ./lora_pkt_fwd
*** Packet Forwarder ***
Version: 1.0.5
*** SX1302 HAL library version info ***
Version: 1.0.5;
***
INFO: Little endian host
INFO: found configuration file global_conf.json, parsing it
INFO: global_conf.json does contain a JSON object named SX130x_conf, parsing SX1302 parameters
INFO: spidev_path /dev/spidev0.0, lorawan_public 1, clksrc 0, full_duplex 0
INFO: antenna_gain 0 dBi
INFO: Configuring legacy timestamp
INFO: Configuring Tx Gain LUT for rf_chain 0 with 16 indexes for sx1250
INFO: radio 0 enabled (type SX1250), center frequency 474600000, RSSI offset -207.000000, tx enabled 1, single input mode 1
INFO: radio 1 enabled (type SX1250), center frequency 475400000, RSSI offset -207.000000, tx enabled 0, single input mode 1
INFO: Lora multi-SF channel 0>  radio 0, IF -300000 Hz, 125 kHz bw, SF 5 to 12
INFO: Lora multi-SF channel 1>  radio 0, IF -100000 Hz, 125 kHz bw, SF 5 to 12
INFO: Lora multi-SF channel 2>  radio 0, IF 100000 Hz, 125 kHz bw, SF 5 to 12
INFO: Lora multi-SF channel 3>  radio 0, IF 300000 Hz, 125 kHz bw, SF 5 to 12
INFO: Lora multi-SF channel 4>  radio 1, IF -300000 Hz, 125 kHz bw, SF 5 to 12
INFO: Lora multi-SF channel 5>  radio 1, IF -100000 Hz, 125 kHz bw, SF 5 to 12
INFO: Lora multi-SF channel 6>  radio 1, IF 100000 Hz, 125 kHz bw, SF 5 to 12
INFO: Lora multi-SF channel 7>  radio 1, IF 300000 Hz, 125 kHz bw, SF 5 to 12
INFO: Lora std channel> radio 1, IF -200000 Hz, 250000 Hz bw, SF 7, Explicit header
INFO: FSK channel> radio 1, IF 300000 Hz, 125000 Hz bw, 50000 bps datarate
INFO: global_conf.json does contain a JSON object named gateway_conf, parsing gateway parameters
INFO: gateway MAC address is configured to 0016C001FF10D3F6
INFO: server hostname or IP address is configured to "47.110.36.225"
INFO: upstream port is configured to "1700"
INFO: downstream port is configured to "1700"
INFO: downstream keep-alive interval is configured to 10 seconds
INFO: statistics display interval is configured to 30 seconds
INFO: upstream PUSH_DATA time-out is configured to 100 ms
INFO: packets received with a valid CRC will be forwarded
INFO: packets received with a CRC error will NOT be forwarded
INFO: packets received with no CRC will NOT be forwarded
INFO: Beaconing period is configured to 0 seconds
INFO: Beaconing signal will be emitted at 869525000 Hz
INFO: Beaconing datarate is set to SF9
INFO: Beaconing modulation bandwidth is set to 125000Hz
INFO: Beaconing TX power is set to 14dBm
INFO: Beaconing information descriptor is set to 0
INFO: global_conf.json does contain a JSON object named debug_conf, parsing debug parameters
INFO: got 2 debug reference payload
INFO: reference payload ID 0 is 0xCAFE1234
INFO: reference payload ID 1 is 0xCAFE2345
INFO: setting debug log file name to loragw_hal.log
CoreCell reset through GPIO7...
INFO: Configuring SX1250_0 in single input mode
INFO: Configuring SX1250_1 in single input mode
INFO: [main] concentrator started, packet can now be received
INFO: concentrator EUI: 0x0016c001ff10d3f6
INFO: [down] PULL_ACK received in 21 ms
INFO: [down] PULL_ACK received in 28 ms
INFO: [down] PULL_ACK received in 50 ms

##### 2020-11-09 15:40:51 GMT #####
### [UPSTREAM] ###
# RF packets received by concentrator: 0
# CRC_OK: 0.00%, CRC_FAIL: 0.00%, NO_CRC: 0.00%
# RF packets forwarded: 0 (0 bytes)
# PUSH_DATA datagrams sent: 0 (0 bytes)
# PUSH_DATA acknowledged: 0.00%
### [DOWNSTREAM] ###
# PULL_DATA sent: 3 (100.00% acknowledged)
# PULL_RESP(onse) datagrams received: 0 (0 bytes)
# RF packets sent to concentrator: 0 (0 bytes)
# TX errors: 0
### SX1302 Status ###
# SX1302 counter (INST): 30893693
# SX1302 counter (PPS):  0
# BEACON queued: 0
# BEACON sent so far: 0
# BEACON rejected: 0
### [JIT] ###
src/jitqueue.c:442:jit_print_queue(): INFO: [jit] queue is empty
#--------
src/jitqueue.c:442:jit_print_queue(): INFO: [jit] queue is empty
### [GPS] ###
# GPS sync is disabled
### Concentrator temperature: 0 C ###
##### END #####

JSON up: {"stat":{"time":"2020-11-09 15:40:51 GMT","rxnb":0,"rxok":0,"rxfw":0,"ackr":0.0,"dwnb":0,"txnb":0,"temp":0.0}}
INFO: [up] PUSH_ACK received in 20 ms
INFO: [down] PULL_ACK received in 23 ms

What is, in detail, the Pi & Concentrator you are using and where did you get the SD Card image?

This means you are not receiving any responses from the back-end. That usually is caused by firewall issues.

I had a similar problem and tracked to the extra data element “temp” sent in the Stat Interval datagram.
The SX1302 packet forwarder measures temperature to calculate RF parameters and also forwards this temperature.

From your log
JSON up: {“stat”:{“time”:“2020-11-09 15:40:51 GMT”,“rxnb”:0,“rxok”:0,“rxfw”:0,“ackr”:0.0,“dwnb”:0,“txnb”:0,“temp”:0.0}}

Another point. Since the temperature is Zero, i am assuming you don’t have a temperature sensor on the board. When you recompile the program I would set the temperature to say 20C.

I would also recommend you download the SX1302 UDP packet forwarder from the gateway manufacturer’s web site. If it is RAK, I know they have addressed the temperature issue.

1 Like

Not being a betting man, I’d still lay odds that this is a known problem.

But we need to know the make / model of the concentrator.

Raspberry Pi 4B (2G RAM) and the SX1302

Thanks, I’m also using the SX1302. Sadly, the gateway is made by a Chinese manufacturer, not Rakwireless. I’ll find a way. By the way, what I am using now is this packet forward program. They changed the reset pin number to PIN7 and also removed the “Power Enable” pin.

And did you use a RAK SD Card image - which currently ends up with no DNS entry after it’s install.

Either way, what is the contents of resolv.conf?

Hi, @haowong If you would like I will look at compiling a version for you, can you confirm you want Reset on GPIO 7 (header pin 26). If not, just let me know what you require. Power Enable will also be removed.
The SPI speed will also be 2MHz to overcome any speed limiting issues.
May take a few days and I will publish on Github and come back here and advise it is finished.

I tried to remove the temperature part, but it did not work.

pi@raspberrypi:~/gw1302s/bin $ ./lora_pkt_fwd
*** Packet Forwarder ***
Version: 1.0.5
*** SX1302 HAL library version info ***
Version: 1.0.5;
***
INFO: Little endian host
INFO: found configuration file global_conf.json, parsing it
INFO: global_conf.json does contain a JSON object named SX130x_conf, parsing SX1302 parameters
INFO: spidev_path /dev/spidev0.0, lorawan_public 1, clksrc 0, full_duplex 0
INFO: antenna_gain 0 dBi
INFO: Configuring legacy timestamp
INFO: Configuring Tx Gain LUT for rf_chain 0 with 16 indexes for sx1250
INFO: radio 0 enabled (type SX1250), center frequency 474600000, RSSI offset -207.000000, tx enabled 1, single input mode 1
INFO: radio 1 enabled (type SX1250), center frequency 475400000, RSSI offset -207.000000, tx enabled 0, single input mode 1
INFO: Lora multi-SF channel 0>  radio 0, IF -300000 Hz, 125 kHz bw, SF 5 to 12
INFO: Lora multi-SF channel 1>  radio 0, IF -100000 Hz, 125 kHz bw, SF 5 to 12
INFO: Lora multi-SF channel 2>  radio 0, IF 100000 Hz, 125 kHz bw, SF 5 to 12
INFO: Lora multi-SF channel 3>  radio 0, IF 300000 Hz, 125 kHz bw, SF 5 to 12
INFO: Lora multi-SF channel 4>  radio 1, IF -300000 Hz, 125 kHz bw, SF 5 to 12
INFO: Lora multi-SF channel 5>  radio 1, IF -100000 Hz, 125 kHz bw, SF 5 to 12
INFO: Lora multi-SF channel 6>  radio 1, IF 100000 Hz, 125 kHz bw, SF 5 to 12
INFO: Lora multi-SF channel 7>  radio 1, IF 300000 Hz, 125 kHz bw, SF 5 to 12
INFO: Lora std channel> radio 1, IF -200000 Hz, 250000 Hz bw, SF 7, Explicit header
INFO: FSK channel> radio 1, IF 300000 Hz, 125000 Hz bw, 50000 bps datarate
INFO: global_conf.json does contain a JSON object named gateway_conf, parsing gateway parameters
INFO: gateway MAC address is configured to 0016C001FF10D3F6
INFO: server hostname or IP address is configured to "asia-se.thethings.network"
INFO: upstream port is configured to "1700"
INFO: downstream port is configured to "1700"
INFO: downstream keep-alive interval is configured to 10 seconds
INFO: statistics display interval is configured to 30 seconds
INFO: upstream PUSH_DATA time-out is configured to 100 ms
INFO: packets received with a valid CRC will be forwarded
INFO: packets received with a CRC error will NOT be forwarded
INFO: packets received with no CRC will NOT be forwarded
INFO: Beaconing period is configured to 0 seconds
INFO: Beaconing signal will be emitted at 869525000 Hz
INFO: Beaconing datarate is set to SF9
INFO: Beaconing modulation bandwidth is set to 125000Hz
INFO: Beaconing TX power is set to 14dBm
INFO: Beaconing information descriptor is set to 0
INFO: global_conf.json does contain a JSON object named debug_conf, parsing debug parameters
INFO: got 2 debug reference payload
INFO: reference payload ID 0 is 0xCAFE1234
INFO: reference payload ID 1 is 0xCAFE2345
INFO: setting debug log file name to loragw_hal.log
CoreCell reset through GPIO7...
INFO: Configuring SX1250_0 in single input mode
INFO: Configuring SX1250_1 in single input mode
INFO: [main] concentrator started, packet can now be received
INFO: concentrator EUI: 0x0016c001ff10d3f6

##### 2020-11-10 10:36:19 GMT #####
### [UPSTREAM] ###
# RF packets received by concentrator: 0
# CRC_OK: 0.00%, CRC_FAIL: 0.00%, NO_CRC: 0.00%
# RF packets forwarded: 0 (0 bytes)
# PUSH_DATA datagrams sent: 0 (0 bytes)
# PUSH_DATA acknowledged: 0.00%
### [DOWNSTREAM] ###
# PULL_DATA sent: 3 (0.00% acknowledged)
# PULL_RESP(onse) datagrams received: 0 (0 bytes)
# RF packets sent to concentrator: 0 (0 bytes)
# TX errors: 0
### SX1302 Status ###
# SX1302 counter (INST): 30875601
# SX1302 counter (PPS):  0
# BEACON queued: 0
# BEACON sent so far: 0
# BEACON rejected: 0
### [JIT] ###
src/jitqueue.c:442:jit_print_queue(): INFO: [jit] queue is empty
#--------
src/jitqueue.c:442:jit_print_queue(): INFO: [jit] queue is empty
### [GPS] ###
# GPS sync is disabled
##### END #####

JSON up: {"stat":{"time":"2020-11-10 10:36:19 GMT","rxnb":0,"rxok":0,"rxfw":0,"ackr":0.0,"dwnb":0,"txnb":0}}

##### 2020-11-10 10:36:49 GMT #####
### [UPSTREAM] ###
# RF packets received by concentrator: 0
# CRC_OK: 0.00%, CRC_FAIL: 0.00%, NO_CRC: 0.00%
# RF packets forwarded: 0 (0 bytes)
# PUSH_DATA datagrams sent: 1 (111 bytes)
# PUSH_DATA acknowledged: 0.00%
### [DOWNSTREAM] ###
# PULL_DATA sent: 3 (0.00% acknowledged)
# PULL_RESP(onse) datagrams received: 0 (0 bytes)
# RF packets sent to concentrator: 0 (0 bytes)
# TX errors: 0
### SX1302 Status ###
# SX1302 counter (INST): 60877423
# SX1302 counter (PPS):  0
# BEACON queued: 0
# BEACON sent so far: 0
# BEACON rejected: 0
### [JIT] ###
src/jitqueue.c:442:jit_print_queue(): INFO: [jit] queue is empty
#--------
src/jitqueue.c:442:jit_print_queue(): INFO: [jit] queue is empty
### [GPS] ###
# GPS sync is disabled
##### END #####

JSON up: {"stat":{"time":"2020-11-10 10:36:49 GMT","rxnb":0,"rxok":0,"rxfw":0,"ackr":0.0,"dwnb":0,"txnb":0}}

Thanks for you help, and I will try to do some other things.

What I’m now using is the packet foward, and after compiling there is no the file ‘resolv.conf’.

All the other activity above is very worthwhile, but the heart of the matter is you don’t appear to be in contact with the TTN servers - so you need to check your internet connectivity and particularly your DNS entry.

resolv.conf is not an output of compilation of the packet forwarder, it’s a settings file.

Think i can see the problem, you are using the Gateway EUI derived from the SX1302. I can tell as the centre bytes are “01FF”

if you read my post from June you will see I discussed this very problem when you use this type of MAC address

I also notice the SX1302 chip has its own EUI, from what I can see this is new to the SX1302 chip. So instead of deriving the gateway EUI from the Ethernet MAC, the gateway chip has its own EUI. Now its format is slightly different, instead of the two centre bytes being FF FE, in my case they were 01 FF. When I used this as the Gateway ID the TTN server would work fine, data packets from a Node would pass to the Application Server, the modified Stat Interval datagram would work and the Console’s “Last Seen” would update correctly, HOWEVER, the server does not send an acknowledgement packet to the Keep Alive datagram.

The solution is to create a gateway EUI with the traditional FFFE in the middle.

Find the MAC address of the Raspi ethernet and insert FFFE in the middle and register this in global_conf.json as below. Also don’t forget to register this gateway at TTN.

 "gateway_conf": {
           "gateway_ID": "xxxxxxFFFExxxxxx",

Find the MAC address of the Raspi ethernet

Sorry sir, but I do not know how to find the MAC address. Is it through running the program or just can view it directly?

# Generated by resolvconf
nameserver 192.168.3.1
nameserver fe80::2ec5:46ff:feb3:4e7b%wlan0

I can see something, maybe it didn’t go wrong.

From the command line on the Raspi type “ifconfig” and it will display the IP address and MAC address of the ethernet port, WiFi port and others. The ethernet port will be listed as eth0: and the MAC address is after “ether”, see bold below

eth0: flags=-28605<UP,BROADCAST,RUNNING,MULTICAST,DYNAMIC> mtu 1500
inet 192.168.1.52 netmask 255.255.255.0 broadcast 192.168.1.255
ether 4e:ff:eb:2d:xx:xx txqueuelen 1000 (Ethernet)
