The BIG and SMALL ANTENNA topic part 1


#1

everything you always wanted to know or ask about :

different types of antennas
diy antennas
cable influence (loss / cable types / quality )
best location to place them (indoor or outdoors and where)
lightning protection
measurement equipment
lots of pictures of your setups
*

welcome in The BIG ANTENNA topic part 1 :sunglasses:


DIY external antenna for gateway
How can choose a good antenna
Antenna experiment - 868Mhz J-pole
Increase your range by adding an outside antenna to your indoor gateway
Things Gateway Antenna type supplied in box?
The BARGAIN basement part 3
(Jens) #2

Hello :slight_smile:

Very good Topic!

Have a nice day

Jens


(Gry Kyo) #3

Hello
Good timing BoRRoZ and a first post from me, I have plenty of newbie questions rattling around in my head.

So I have a metal pole above the roof line of my house, about 10m over ground level. I live on the east coast of Ireland and would like to do some learning and testing with some nodes and a "standard specification" multi channel gateway. Currently I plan to put the following sort of equipment together.

Mounted on the pole:
Commercially available 10dBi antenna
1metre N to SMA cable to a IP rated enclosure mounted on the pole.
IMST iC880A inside the above enclosure
Interface board like this one by Hallard
Raspberry Pi Zero with usb to Ethernet adaptor

I have power and space in the attic area of the house and a network switch already there also. I plan to inject POE via a network cable approx 10m to the concentrator using a DC-DC buck converter on the interface board for power inside the IP rated box on the pole etc.

My questions would be
* Do we have any similar gateway specs in service?
* Do we have experience with these cheap Chinese 868MHz antennas (quality/performance etc.)
* Can somebody advise regarding the cable/pigtail between the antenna-concentrator for performance?
* Do we have expertise regarding grounding of the antenna/pole which is not currently protected.

I am happy to get involved in discussion so welcome any feedback positive or negative on these parts and compatibility. Thanks in advance.

Garry


#4

I have tested several China Export antenna's, including the exact one that you are using. While it isn't exactly 10dBi gain, it still performs quite well and is my antenna of choice for my next project.

The rest of my setup is pretty much the same as yours. You will need a u.fl-to-N pigtail, not a SMA-to-N. I bought this one. My coax cable was from a A-brand, but even a lower quality brand shouldn't matter that much if it's only 1 metre. My iC880A is mounted in a IP65 enclosure with the RasPi and connected with jumper wires.

For your setup I wouldn't worry too much about lightning protection. You can only do it decent or don't do it at all. Doing it decent involves running a dedicated 35mm² copper wire up to the antenna from grounding rods you've put in to the ground. Because it's on top of your house, you'll probably be alright.


(Gry Kyo) #5

Very reassuring, thanks.


(Nickleijenhorst) #6

I have tested between 10 to 20 Chinese 868 MHz / 915 MHz antennas, and my findings are that they are mostly crap. It also completely depends on what you're going to mount it on. Most antennas in China are measured on an old benchtop VNA, and they check the return-loss to see if it works or not. However, they usually screw the antenna directly on the VNA, so the ground area around the antenna is completely different than mounting the antenna on a PCB for example.

If you want to get antennas from China, I would advise you to buy 5 different antennas from different manufacturers, and checking the RSSI on the gateway (if you don't have access to a VNA).

Connecting the antenna through a U.FL to SMA pigtail usually makes the return-loss even worse, so for those situations a dipole antenna would be more suitable, but those generally cost more.


#7

which do you recommend ?

  • stupid question.. off course the ones you sell in the webshop :wink:

did you ever tested this type of outdoor node antenna ?


#8

By far the best antenna I've used (and probably the 'general best' 868MHz antenna available) is the Procom CXL 900-3LW-NB/868MHz, but at €165 it's not particular realistic for the average tinkerer.


(Nickleijenhorst) #9

Unfortunately I've never tested those kind of outdoor antennas, usually we try to get the most performance out of small and cheap antennas! I am a big fan of the molex antennas, but you need to mount them to plastic in order to tune them properly. I'm still in the process of finding good 'whip' antennas that have a SMA connector!


#10

yes I've bought also several different 'china' types :innocent:


#11

We did an 868 MHz antenna test recently:

https://www.coredump.ch/2017/04/13/lorawan-868mhz-antenna-test-part-1/
https://www.coredump.ch/2017/04/30/lorawan-868mhz-antenna-test-part-2/

Interesting how far some antennas diverge from their specification.


I have a question related to dipole antennas: A single element dipole cannot have more than 2.15 dBi gain, correct? So all those dipole 5dBi gain whip antennas available on Ali Express are by definition impossible to have that much gain, correct?


#12

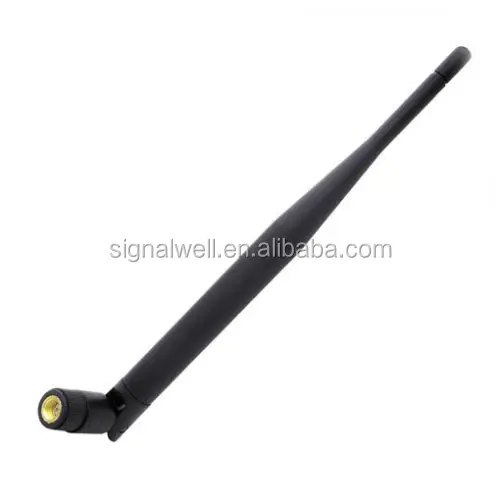

like this one, less then one euro in quantities and shipped with all kind of lora products


#13

Whip antennas are by definition monopoles, but when placed on a conducting surface act (somewhat) like dipoles. Some whips have grounding radials in the base of the antenna, but that does not make it a real dipole though. Most whip antennas increase gain by adding resonators or loading coils, but I would take those gain figures with a big grain of salt.


(Ralph) #14


A new and very interesting outdoor antenna option: Sirio GP 868 C (dedicated for the European 868 ISM-band) is now available for ordering: http://www.k-po.com/SIRIO-GP-868-C.2.html


(Gig) #15

Did someone do actual VSWR & gain test for those 868MHz fiberglass antennas on Aliexpress?
https://www.aliexpress.com/item/6-5dBi-868MHz-omni-fiberglass-antenna-Customized-806-960MHz-N-female-connector-high-quality-factory-outlet/32709193728.html
https://www.aliexpress.com/item/868MHz-high-gain14dBi-omni-fiberglass-antenna-base-antenna-868MHz-outdoor-roof-monitor-antenna-free-shipping/32691472854.html
https://www.aliexpress.com/item/868MHz-antenna-omni-fiberglass-antenna-10dBi-868MHz-outdoor-roof-glide-monitor-repeater-UHF-antenna-RFID-reader/32694420721.html

I've seen that @GryKyo and @Epyon use similar antennas but I find the technical characteristics announced by the seller to be, ahem, extremely dubious. Still, even if you 'only' get 6dBi out of their 10dBi antenna, it'd be cheaper than the Procom.


#16

received this one last friday .. no time to play yet :sunglasses:


#17

I did some quick testing of the popular Sunhans 13dBi antenna and the A&C 14dBi compared to a regular ground plane antenna (2.19 dBi) by analysing the RSSI of a fixed node around 500m LOS away. While both antenna's functioned better than the ground plane, they certainly don't reach the advertised gains. I would guess something between 3-6dBi at most.


(Gig) #18

While I'm at it, I should add my contribution:

A few months back, we bought cheap antennas on eBay, advertised as "7dBi 868MHz antennas".

They were dirt cheap, so while we knew the 7dBi figure was utter nonsense we decided see if they couldn't replace our plastic indoor antennas.

Well, no. We had them tested in a RF chamber at Orange Labs, and they expert opinion was that they were "unusable". Something about a 15dB loss...


(Denx) #19

Hi, is anyone using this collinear coaxial antenne solution for lorawan?

http://jeroen.steeman.org/Antenna/collinear-coax
http://www.rason.org/Projects/collant/collant.htm

The solution seems very popular on 1090MHz ADS-B;


(Rolf Noot) #20

Mostly, antenna gain is misunderstood.

For example, if you have a mobile antenna you'd better off with a 0dBi antenna rather than a 10dBi antenna. The more gain the antenna has, the more energy will be bundled in one direction. Think of putting a reflector behind a light bulb. All the light hitting the reflector will be reflected, no light will go through.

For a mobile antenna you don't want 'black spots'. Effectively, you want your sensitivity/gain be the same in each direction (0dBi). This is called isotropic. Any misalignment in the pattern will yield gain in some direction. A dipole is not fully isotropic (radiating less in line of the dipole and radiating more perpendicular to the dipole), think of a radiation pattern like a squeezed ball.

Stationary (gateway) antennas will have more likely gain in horizontal direction and less gain vertical direction. This can be achieved by stacking dipoles for example.

An antenna can not output more energy than goes in. On the other hand, an antenna can 'loose' energy. When there's a mismatch in the antenna (system), part of the energy get's reflected and will not reach it's destination. This is measured in VSWR (or in S parameters). A VSWR of 1 is most ideal: no energy is reflected.
