The BIG and SMALL ANTENNA topic part 1

(LoRaTracker) #370

It would be odd for a 1/4 wave vertical with radials to come with anything other than 50 ohm cable, the point of the angled radials is to bring the antenna close to 50 ohm.

The LoRa devices are notionally 50 ohm too, so 50 ohm cable and 50 ohm antenna makes for the maximum transfer of power.

(Jezd) #371

which did you buy?

Interesting read

(Badryan) #372

Decided for this Conrad-brand one, mostly because with the P&P I saved, the cheaper price of some others didn’t matter.

(Ebreyit) #373


Looking at

Only mentions 50 Ohm in the datasheet.

F Connectors can come in 50 Ohms as well, you just come across the 75 Ohm version more often.

If you were ever looking to use longer cable I would invest in something like the LMR400 as suggested.
There are variants around such as LBC400, HDF400 and CFD400 which are cheaper but very similar spec.
Plus you can probably find companies which will make the cables up with SMA connectors for you, then just pop the converter on the end

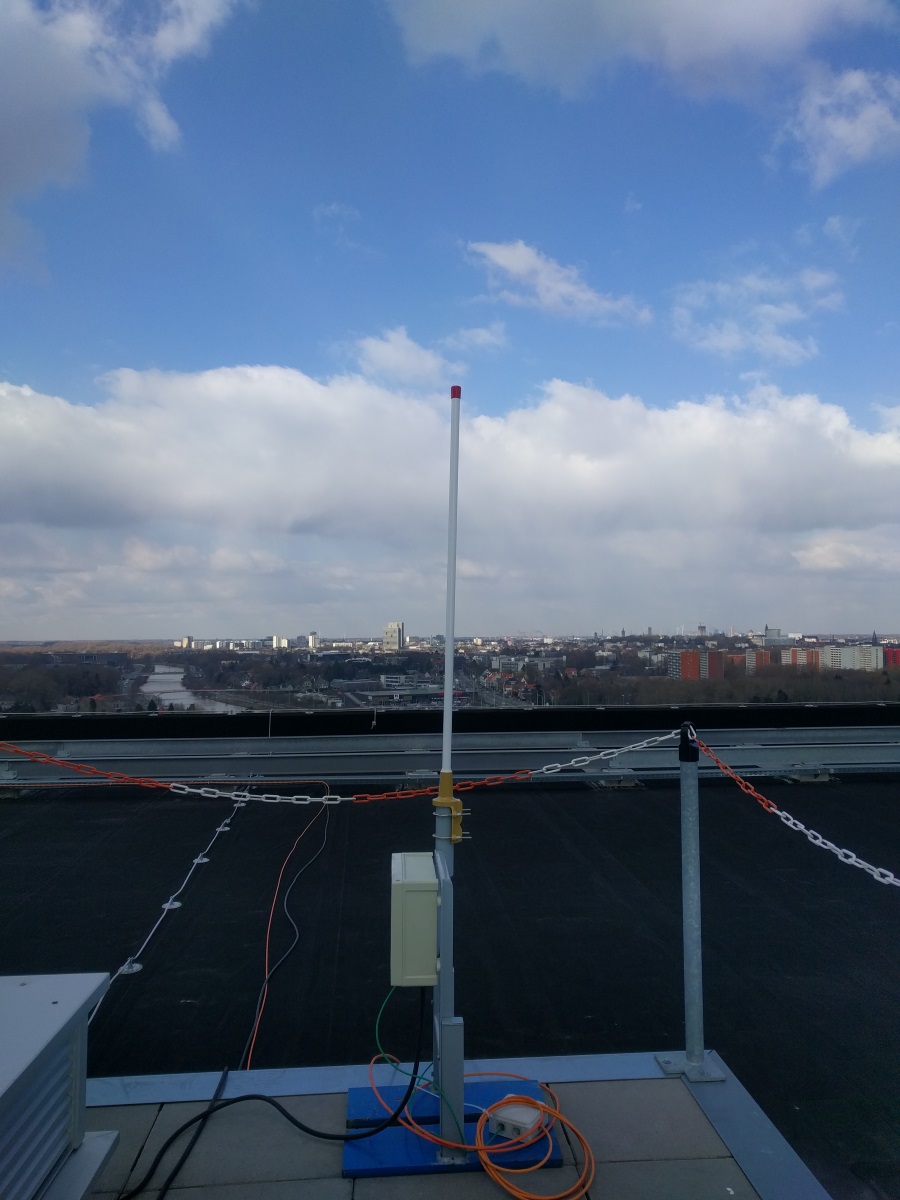

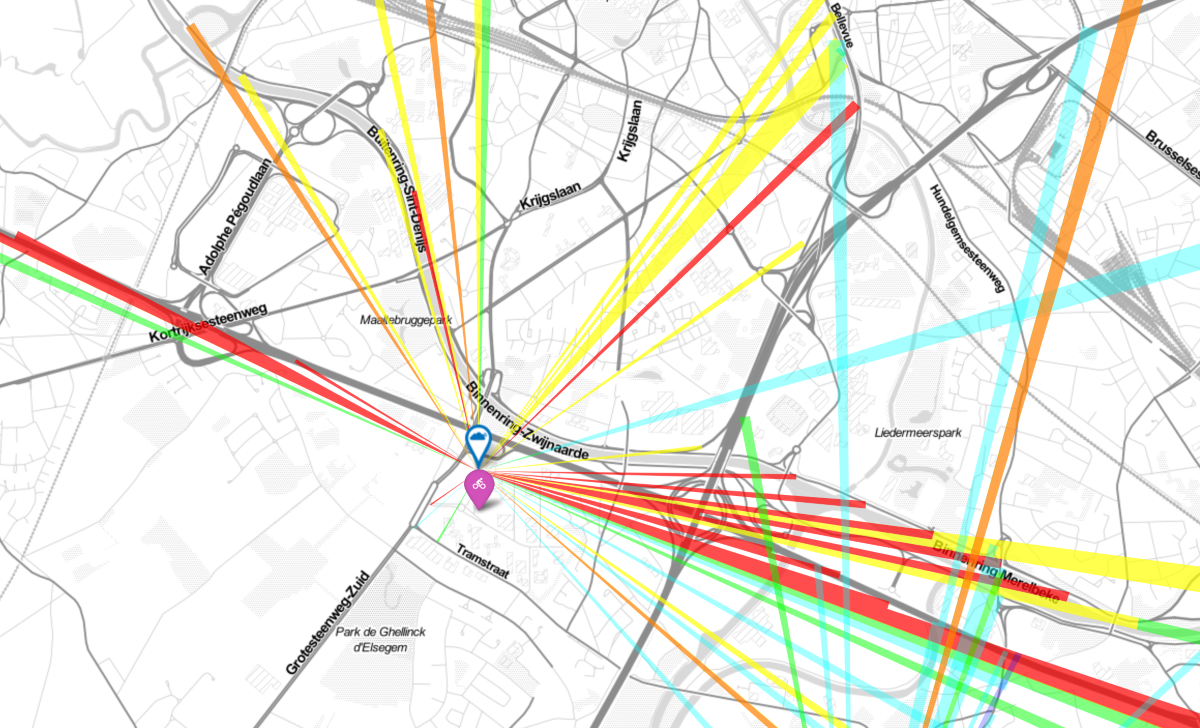

After waiting for the slow gears of the IT department to start grinding, my gateway with the Procom CXL 900-3LW-NB/868MHz is finally online. Preliminary results are very good, even though antenna placement could have been better :blush: .

That small list to the right is seriously tickling my OCD senses :rage: .

For the locals: it’s on top of the iGent building.



Some dated but nice Antenna Fundamentals videos


(LoRaTracker) #377

Nice video.

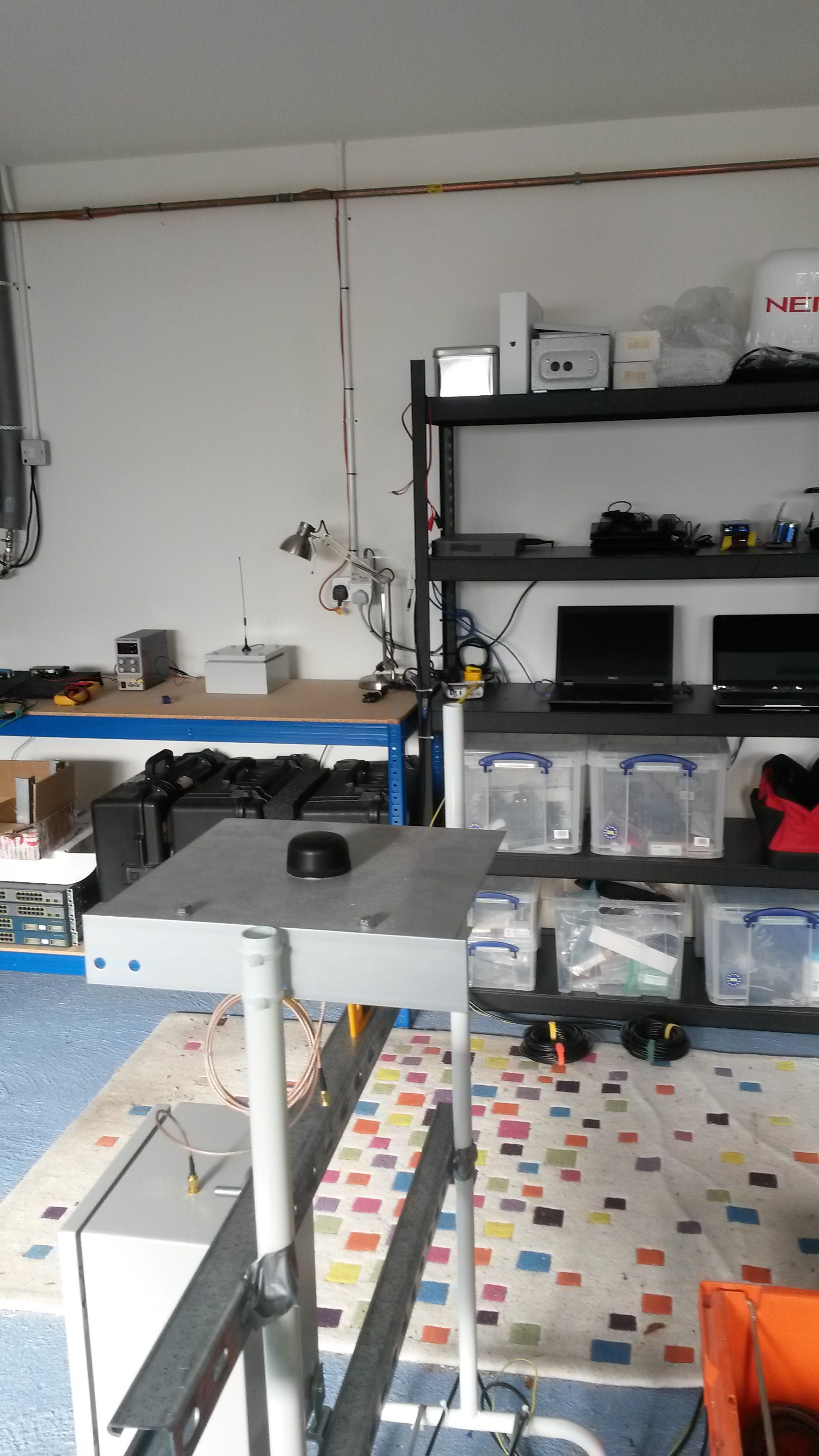

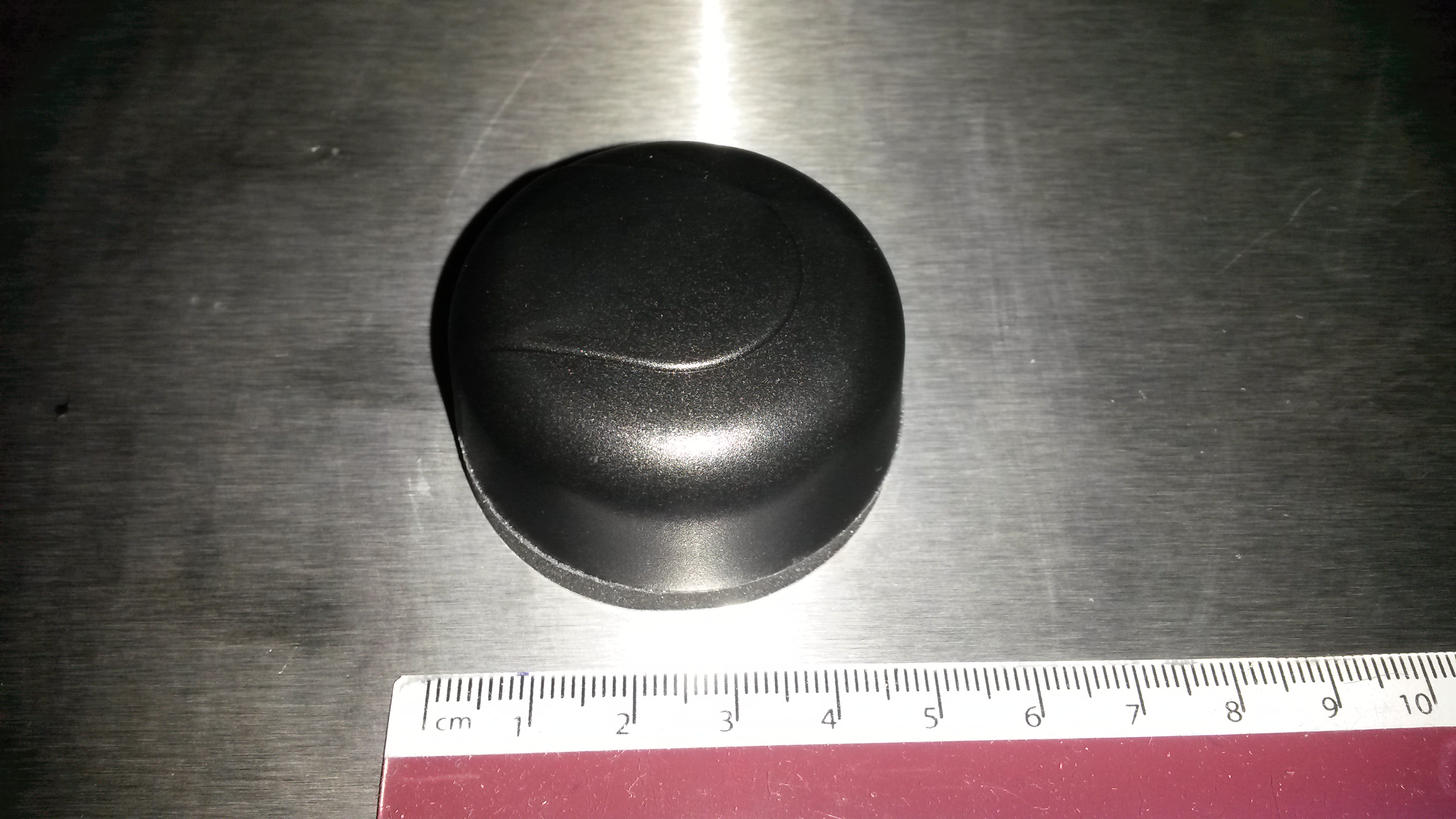

All the time I had been testing antennas with RSSI in that way I did not think to setup the test software such that the ‘receiver’ would respond back to the transmitter with the RSSI of the incoming packet.

Although my HAB tracker software (2015) by default will respond to an incomming command with an ACK or NACK packet that included the SNR and RSSI of the incoming command.

With a third LoRa device as another receiver you could improve the test further by standing well away from the trasnmitter and receiver path and counting the test packet RSSIs in that way.

The test software that Andreas referred to that I have been using is the Ping test software that is here;

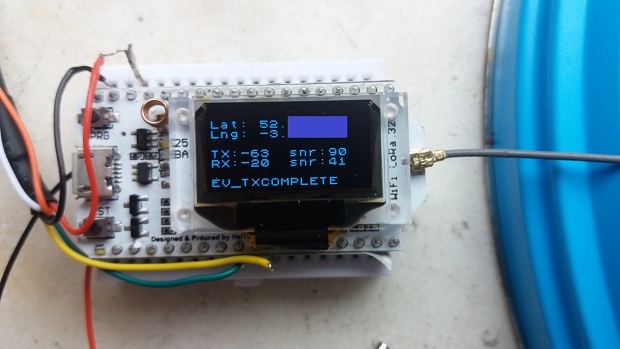

I’ve been measuring the TX and RX RSSI recently and got these figures - slightly dubious of the RX figures though ( I know the TX SNR should have a decimal point)

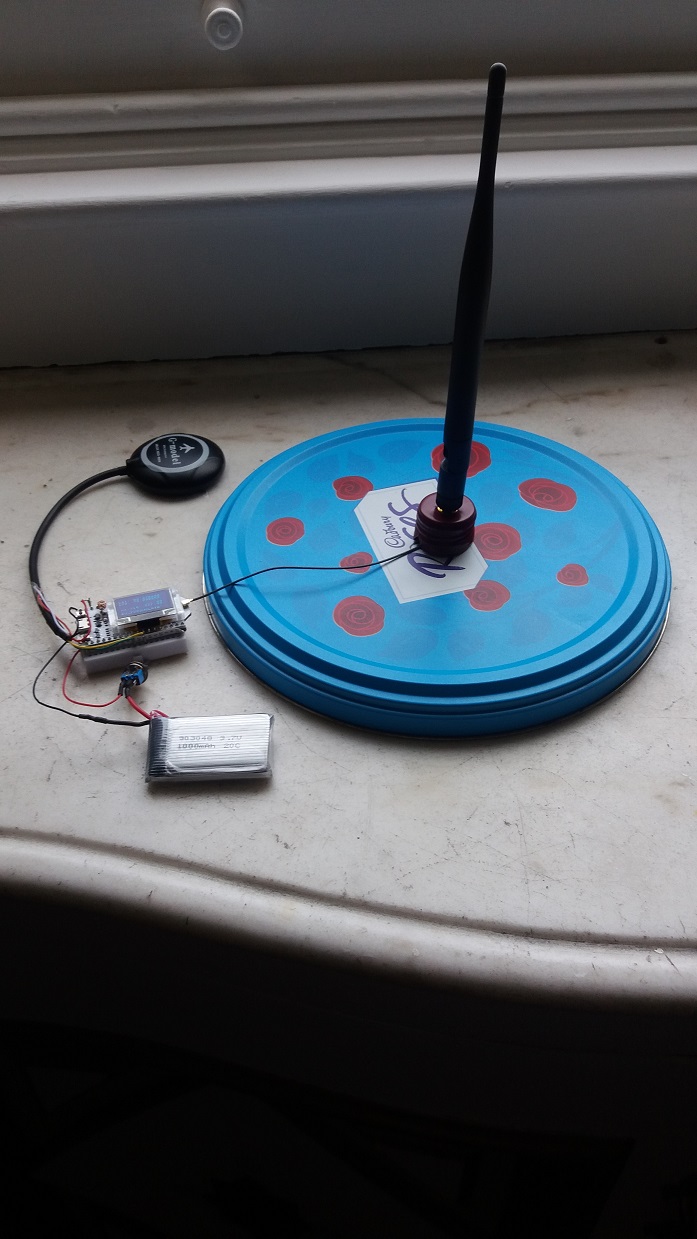

N.B. The temporary antenna stand is an old wine bottle top!
I’ve been wondering what to put it all in. An old glass jamjar could work, but of course, the glass is breakable :slight_smile:

(LoRaTracker) #379

Something looks wrong, if your software is reporting RSSI correctly, how can you get a link difference of 43dBm (-63 and -20) ?


I know the TX values are correct (I can see the same values reported in the TTN console).
For the RX side, I’m just reporting local variables LMIC.rssi and LMIC.snr.
Does anyone know the right way to calculate this? one thought is to subtract 137. However, wandering around outside gave consistant values for the TX side, but crazy values being reported for LMIC.rssi and LMIC.snr. :frowning:


To my (limited) knowledge RSSI stands for Received signal strength indicator.

RSSI measured on the node is the strength of the signal received from the gateway.
RSSI measured on the gateway is the strength of the signal received from the node.

What (on the node) is RSSI of TX?


Its the RSSI that was measured on the gateway for the previous transmission ( i.e. it is “gateway” data that was downlinked back to the node) . This is working OK.

It seems the problem is the other RSSI value i.e. the measurement on the node of the signal strength of the downlink from the gateway.
The LMIC variable LMIC.rssi (on the node) doesn’t have a value which makes sense.
I’m thinking there must be some sort of adjustment needed (perhaps an indication of different SF and shifting of the value?) . Does anyone have ideas where to look?

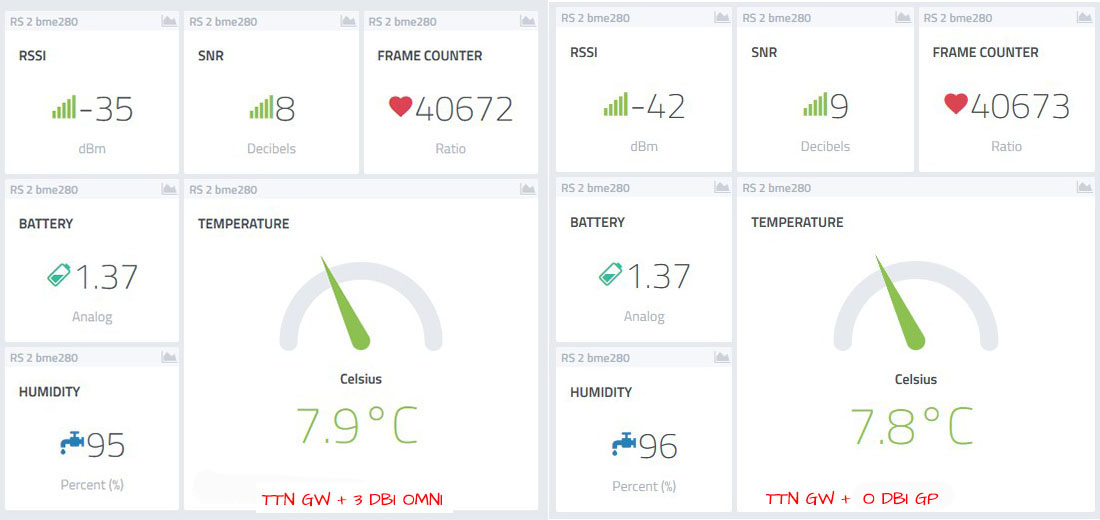

I’m trying to compare the effect of different antenna for both directions. One would think it woudl be roughly the same, it would be nice to prove it really,


How does that work? Does this happen automatically (e.g. in response to OOTA join request) or do you send it explicitly in a custom downlink message?


@CurlyWurly I was struggling with the same issue about the rssi value.
LMIC, RadioHead, HopeRF, and Semtech all use different values.

The semtech datasheet says this.
RSSI[dBm] = -157 + Rssi (using HF output port, SNR >= 0)
RSSI[dBm] = -164 + Rssi (using LF output port, SNR >= 0)
(see section 5.5.5 for details)

and in section 5.5.5
The constants, -157 and -164, may vary with the front-end setup of the SX1276/77/78/79 (LnaBoost =1 or 0,presence of an external LNA, mismatch at the LNA input…). It is recommended to adjust these values with a single-point
calibration procedure to increase RSSI accuracy.

So with LnaBoost enabled I used this function int16_t rssi = (readReg(RegPktRssiValue) - 157);
and for the snr value float snr = ((int8_t)readReg(RegPktSnrValue)) * 0.25;

But I am not 100% sure. :shushing_face:

(LoRaTracker) #385

Agreed its confusing, and there have been changes since the original datasheet.

Whilst the absolute value of the RSSI will change depending on whether you use -157 or -164 or whatever, is it of much consequence, as long as the RSSI remains linear ?

(although see note 3 in 5.5.5)


Thanks guys - The RX SNR is looking better now
In the end, I used the following code to calculate the values (N.B. RSSI_OFF is 64)

int16_t   rssi = (LMIC.rssi - 64);
int       snr  = LMIC.snr * 0.25;

N.B. In lmic.cpp there is reference to

But that seemed to make the values worse - so I ignored it :roll_eyes:


(Jezd) #389

I’m glad I just spotted your post, had one working here for a few months with some success but now its struggling with the weather elements and I’m going to replace it next week - odd thing is it failing on transmit I think, anyway its going in the bin shortly
