The WORKBENCH part 3

Why do you say so?
It is cut for 868MHz as per the design not specification.

1 Like

You are right he additional length is for dual band operation at 868 and 2.4Ghz. I have just moved over to the DN038 though, have you tried it?

No I haven’t. It is much more compact but gain is reduced by up to 50%.
Comparatively, how does it perform?

14%20PM

to hot to solder … workbench closed :sunglasses:

x1484

x1485

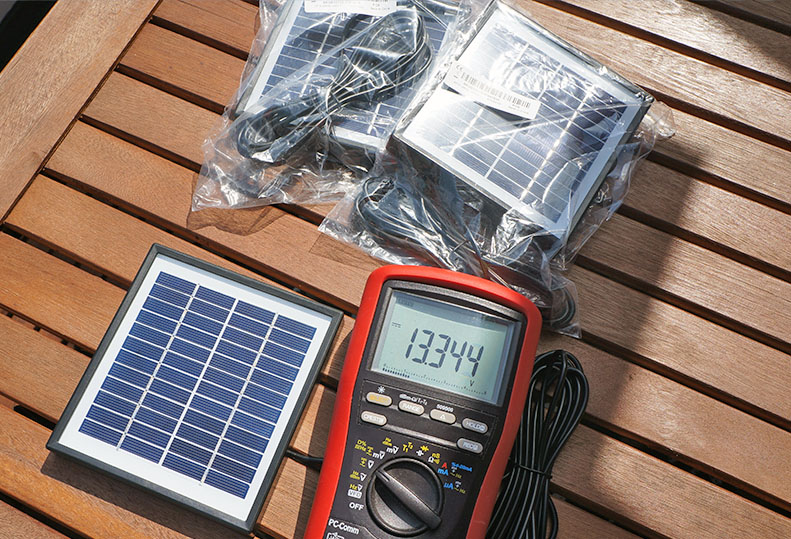

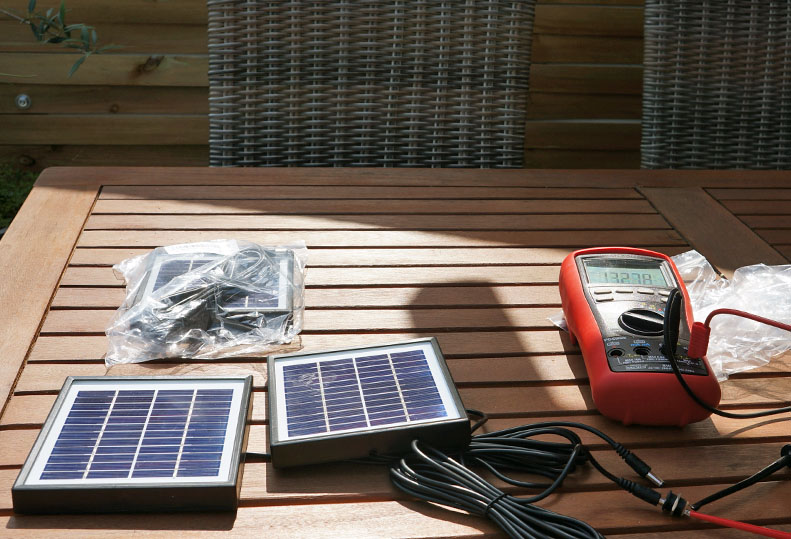

3x mini 12v solar panels arrived - 1 to go, I will use them paralell and use this MPPT charger board

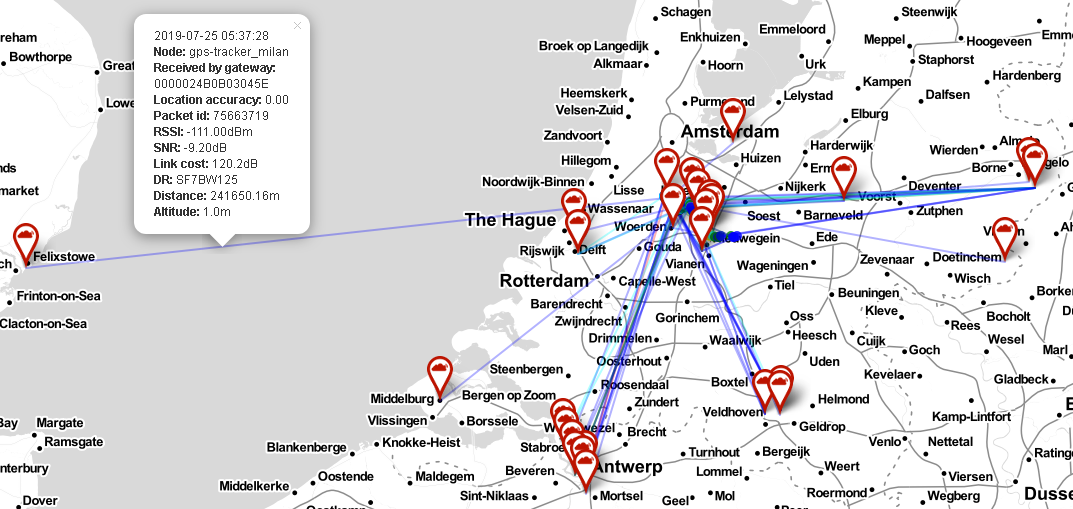

Mega RF conditions in Europe since yesterday evening:
@ttnmapper tracker is behind my rearview mirror, inside the car.20190725_Mega_condities

2 Likes

I wonder, if the backend’s ADR reacts on these conditions… will it switch back a node to let’s say SF 7… and what if the conditions suddenly go back to normal… is your node ‘lost’ ? :thinking:

btw 241 KM ! :flushed:

Wow I have the same kind of result.

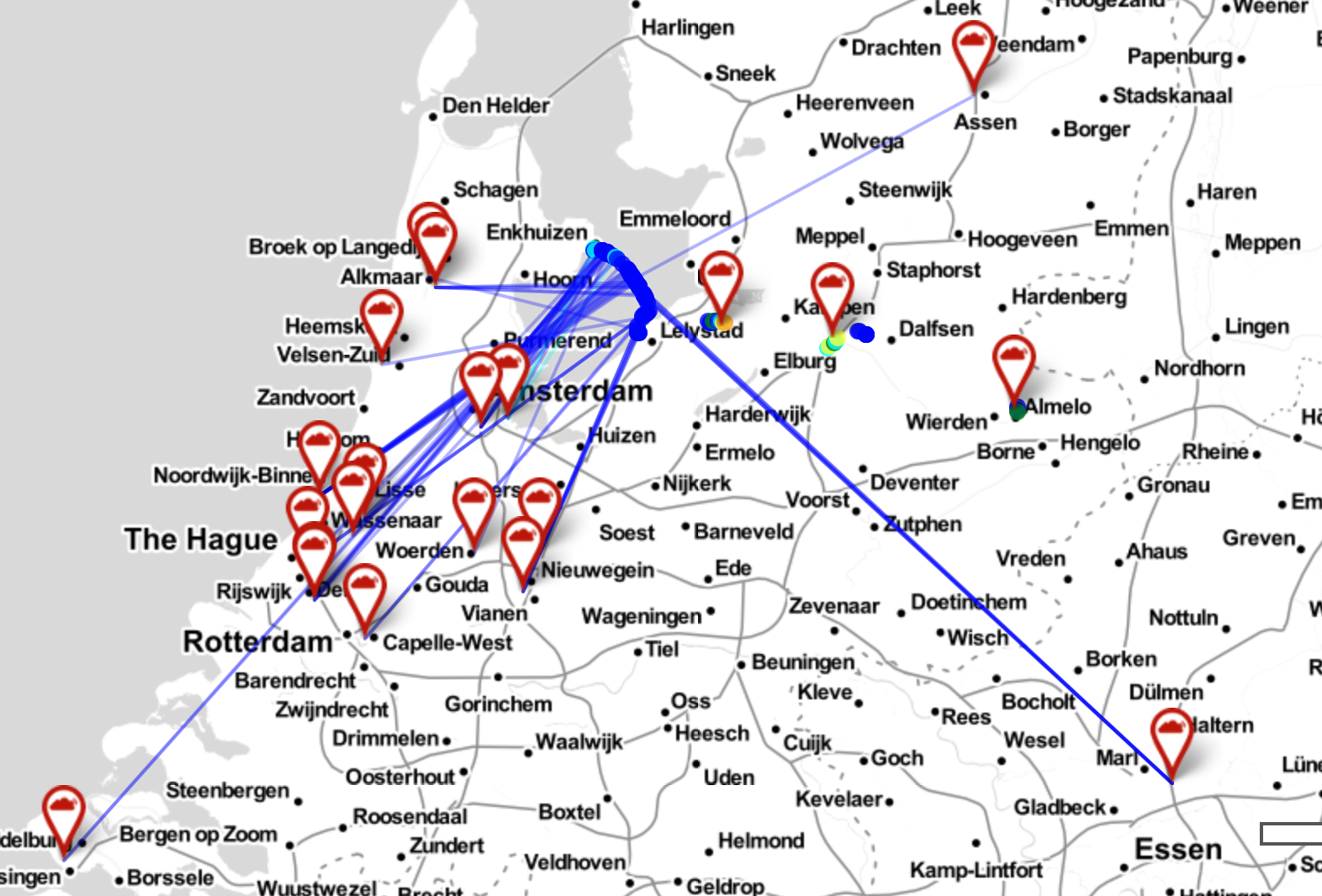

This node is in a truck , antenna inside. It drives the dike Enkhuizen-Lelystad almost daily but it never had any coverage on it. Until today…
blip2_20190725

2 Likes

My node is always SF7. :innocent:

1 Like

x1486

1 Like

x1488

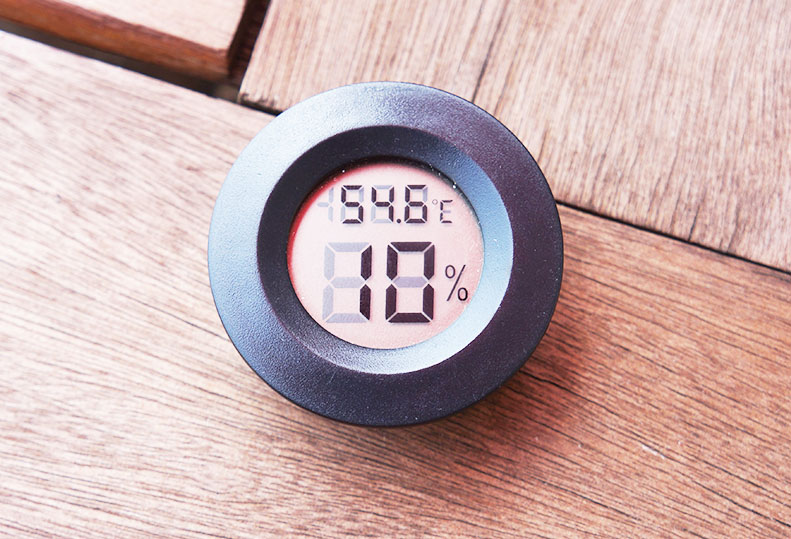

outdoor full sun - this can’t be right :thinking:

x1487
indoor - mobile airco can’t cope

49%20PM

Lora broke my site :wink:
So I made a few blog posts to take my site out of snooze mode.
Decided it would be fun to blog about the long lora ranges.
Then hacker news picked it up on the front page.
Great-success
Then my cheap Neostrada hosting died… :wink: :face_vomiting:
12

1 Like

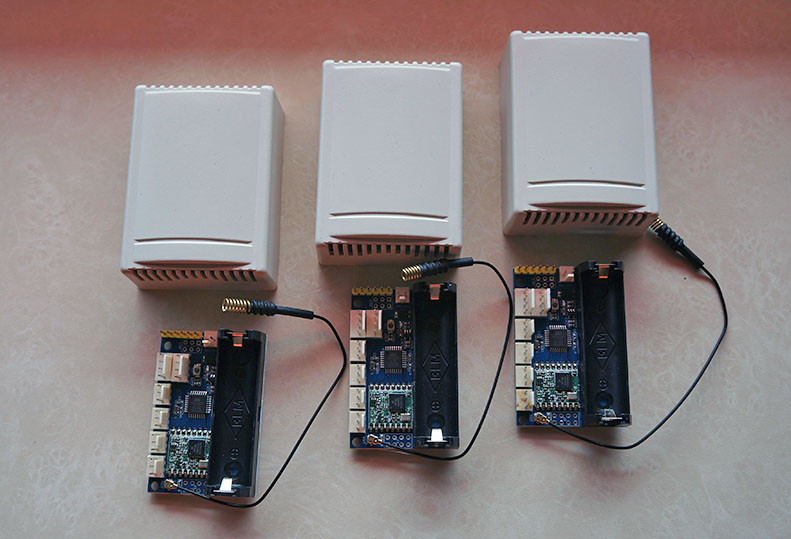

I received some batteries for these boards last week. 3.2v 7000mAh
I intend to print cases and remove regulators/LED’s, possibly add solar “top-up” as distinct to charger but to deploy these as low power devices “for life”. I guess battery life will be indefinite based on my xperience using @Charles other project board. Possibly longer battery life than lifespan of LoRaWAN as we currently know it?

oeps sorry

I removed the link
https://www.thethingsnetwork.org/forum/t/the-library-basement-part-10/26888/507

maybe, if you feel like it, make it a LAB story ?

1 Like

:open_mouth:

did you say SEVENTHOUSAND mAh?? … just wait for @bluejedi to come after you :wink:

…loud and clear my friend!

No regulator, raw battery voltage on VCC rail, fit and forget?

1 Like

sure… why not
I just found this type :upside_down_face: no regulator needed

:smile: :rofl: :laughing: :stuck_out_tongue_closed_eyes: :smiling_imp: :wink:

capture%202019-07-29%2022%C2%B733%C2%B747

capture%202019-07-29%2022%C2%B734%C2%B709

Ok, so you are the optimistic type. :laughing: :wink:

Real life capacity will probably be more like 6000 mAh when checking tests of similar sized LiFePO4’s on: List of tested batteries

1 Like
