#646

I am trying to install this wroom board in the arduino IDE (1.8.5) using this tutorial
seems that the wroom32 = FireBeetle ESP 32 … anyway no luck.

what is the best or alternative way to install this wroom in arduino IDE ?


(LoRaTracker) #647

Quite a few of the of the ESP32 boards use the WROOM 32 module.

The NodeMcu32s and Wemos Lolin32 do.

I followed the install instructions for the standard ESP32 library;

There are a lot of ESP32 boards supported by this library, 32, but I dont see a FireBeetle


#648

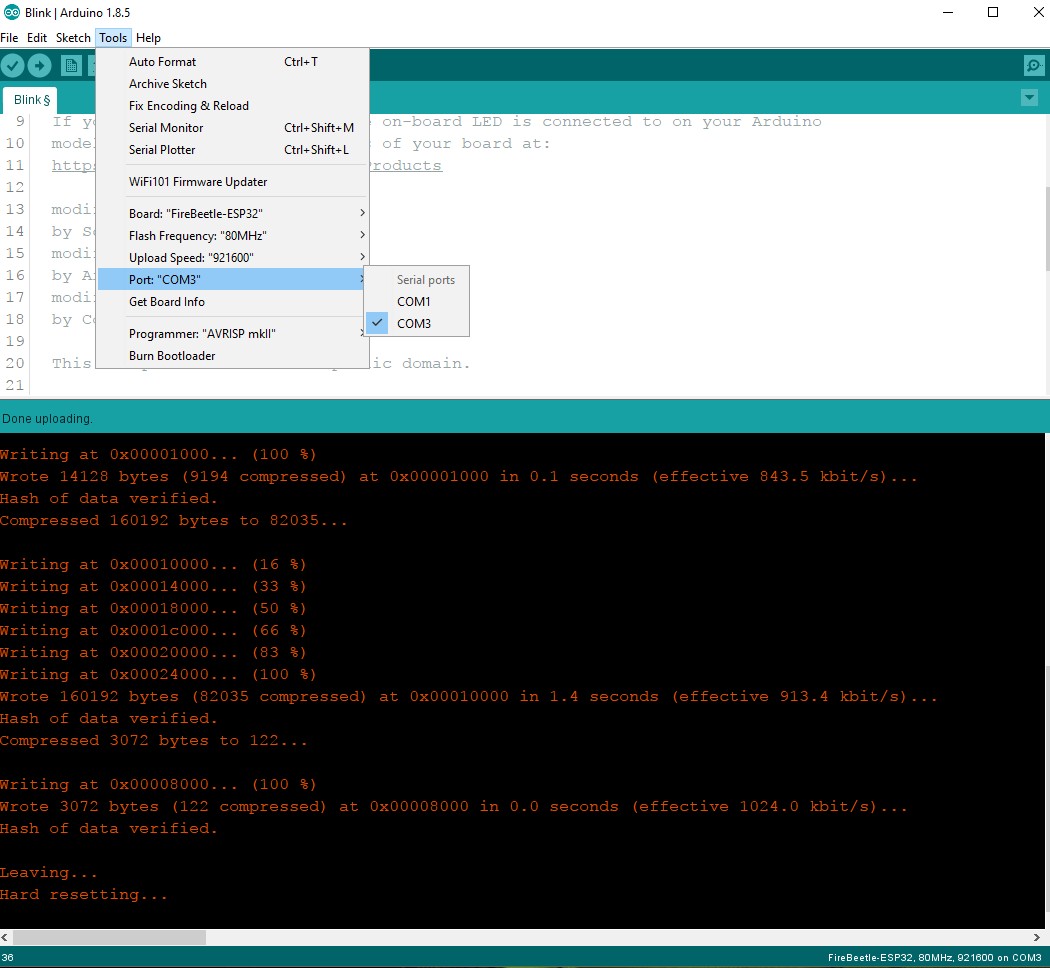

my FireBeetle is blinking :sunglasses:


(LoRaTracker) #649

How interesting.

The blink sketch on my NodeMcu32s, using the standard Expressif library consumes 136741 bytes (10%) of program storage space.

Yours uses 160192 bytes.

Why does it take well in excess of 128K bytes of flash to flash an LED, is it progress perhaps ?

I recall flashing (LEDs!) with a MK14, and that only had 256 bytes (yes bytes) of memory.

https://en.wikipedia.org/wiki/MK14


#650

compressed to …

ready for my e paper displays now … tomorrow ?


(LoRaTracker) #651

Yes, but the ‘compresed’ bit does not make sense, in the context of overall program size, otherwise you would assume the program size was reduced down to 122 bytes, which seems unlikley.

And look at the Writing addresses;

0x00010000 to 0x00024000, so the program did require circa 150000+ bytes to be written, which is about correct for the download speed and time.


#652

yes the compiler output is definitely not optimised yet :sunglasses:

but I’m happy… I need a lot of free memory so… think i’ve got it

Build options changed, rebuilding all
Sketch uses 159049 bytes (12%) of program storage space. Maximum is 1310720 bytes.
Global variables use 10968 bytes (3%) of dynamic memory, leaving 283944 bytes for local variables. Maximum is 294912 bytes.


#654

Here is a STM32-based NUCLEO board that works with Arduino and platfomio as well as the online mbed compiler and cost less than £10 for 3 USART, 2 SPI, 128Kbyte Flash, 20Kbyte RAM
http://amzn.eu/8YXJ6AT


#655

If you are looking for an alternative to the HOPERF boards, here is one I am using and can recommend from an Australian company - note that you will be charged customs duty in advance of receiving the package. I think the RF path is well-designed and like the screening can.
http://modtronix.com/inair9.html


#656

:heart_eyes:


#657

must be at least 10months ago the picture was taken or screen was set😂


#658

ok … that’s no rocketscience … let’s try :sunglasses:


#659

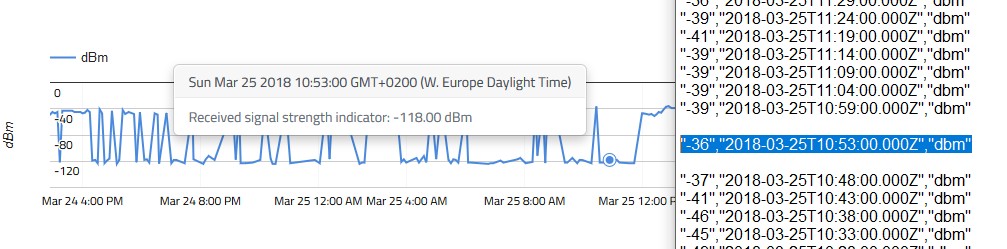

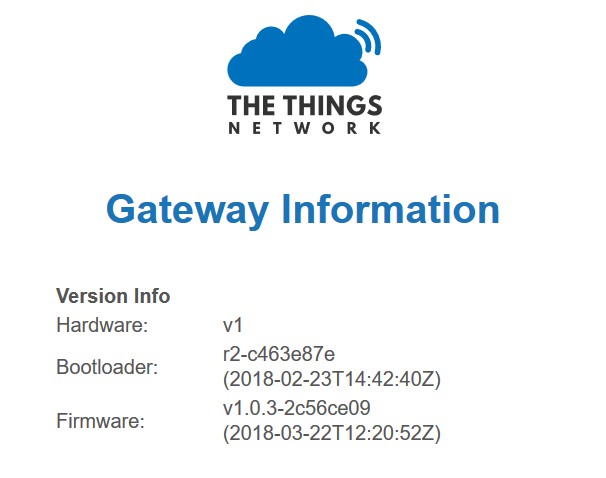

ah the TTN gateway updated itself… cool !

to

  • up and running now for more then 20 hours without problems… good job !

(Amedee) #660

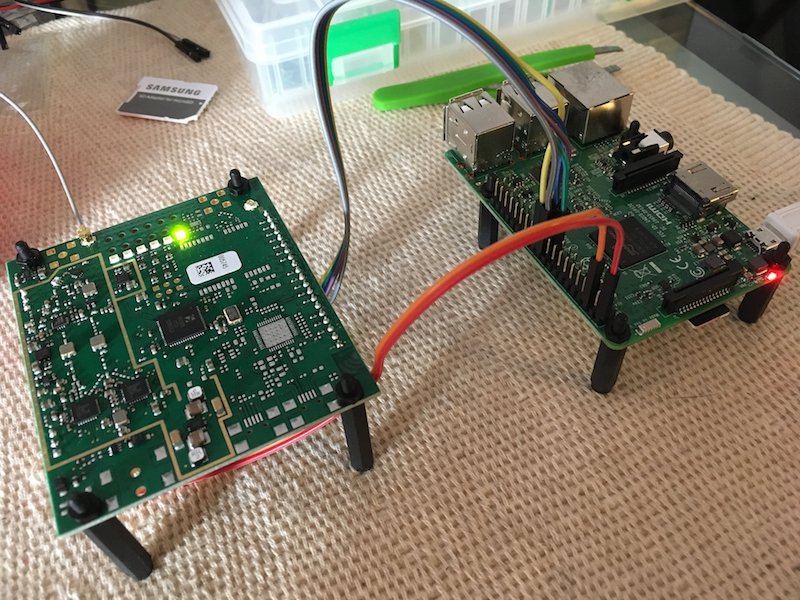

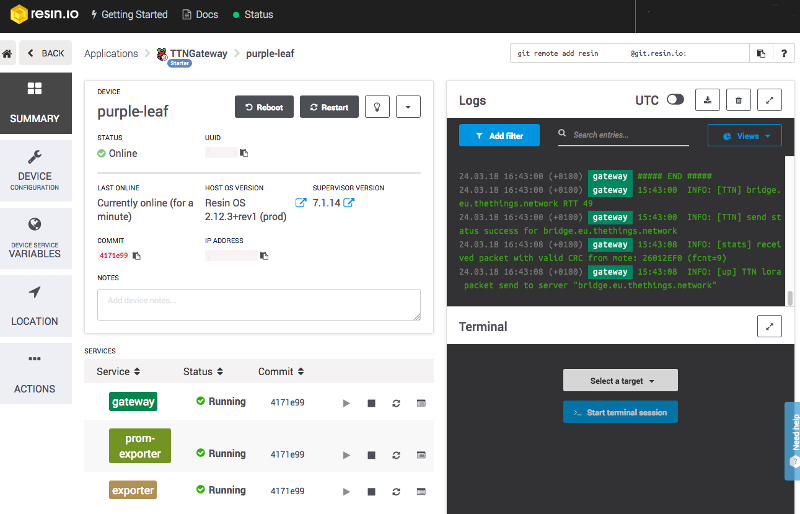

Playing with my spare gateway…

… and resin.io

The new multi container feature is pretty cool, we can eventually go to one service per container as it should be…


#661

:thinking:


#662

x756

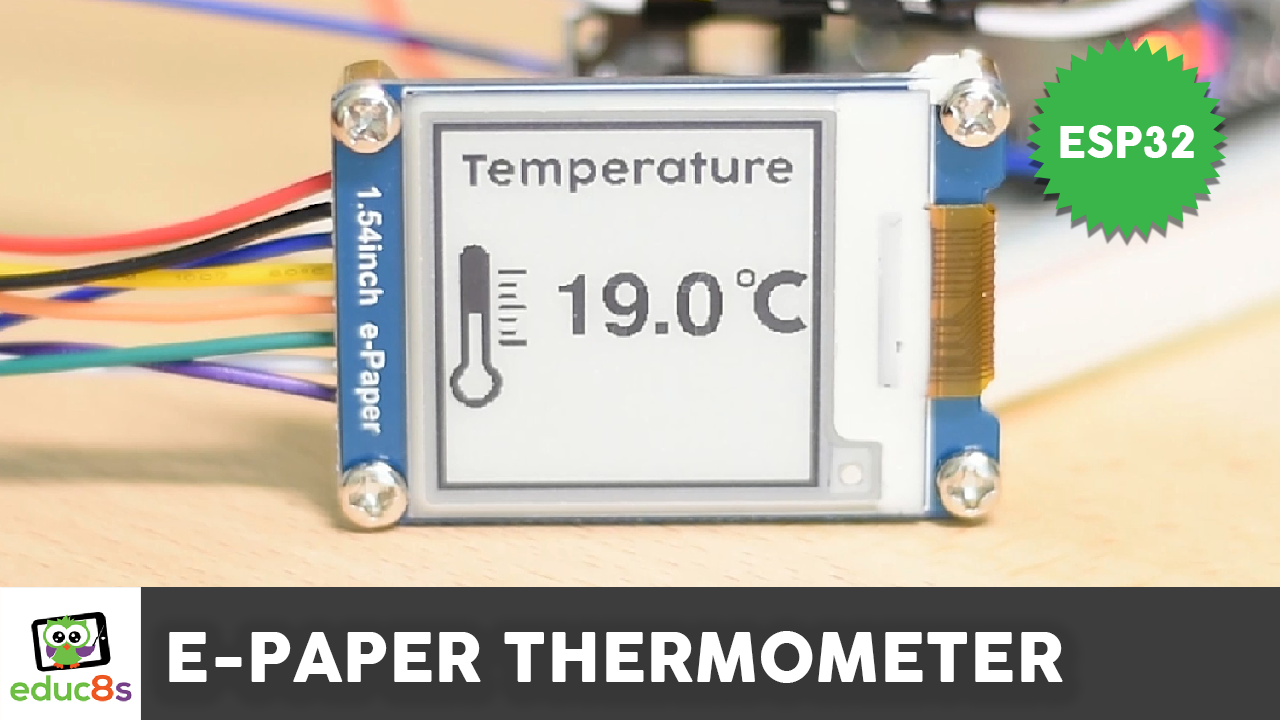

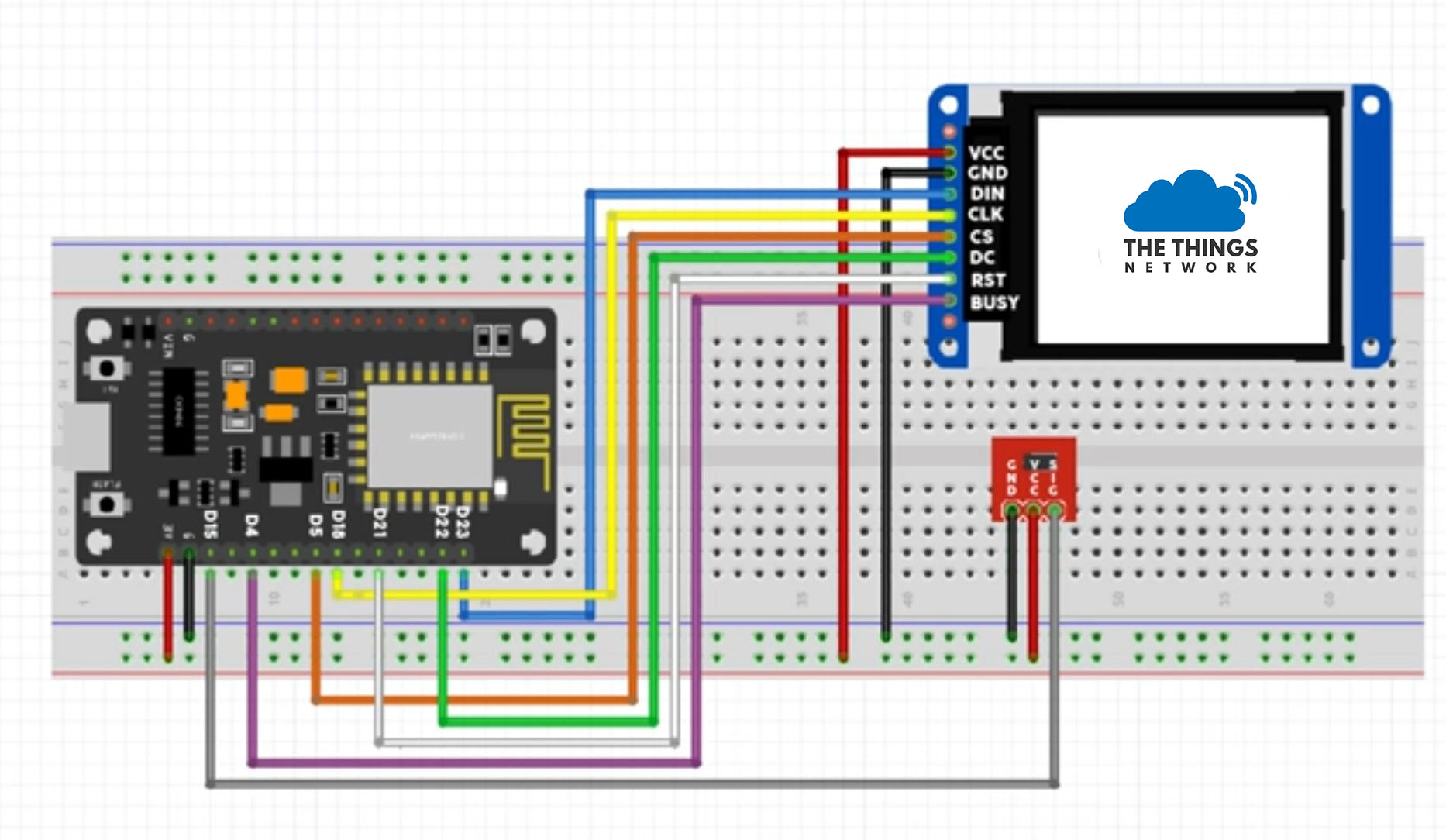

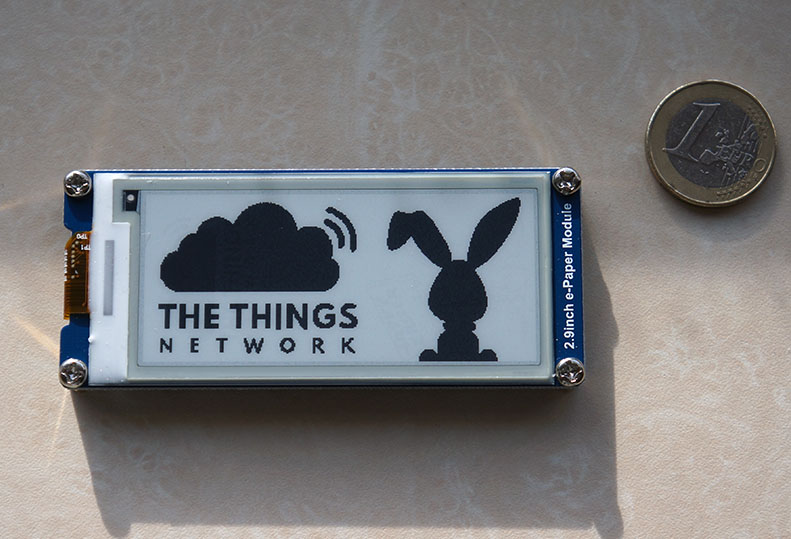

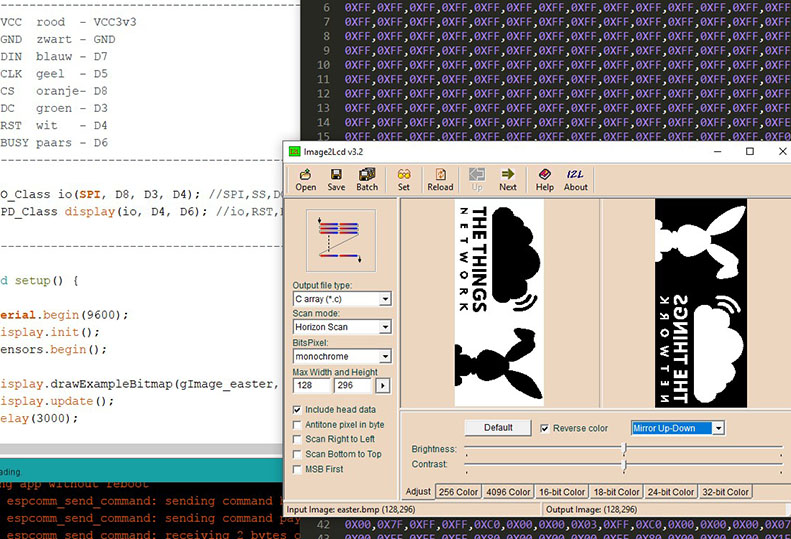

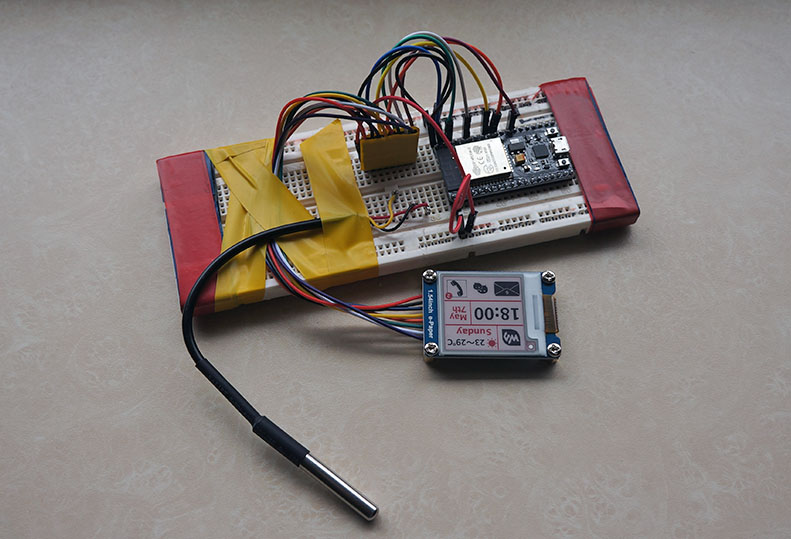

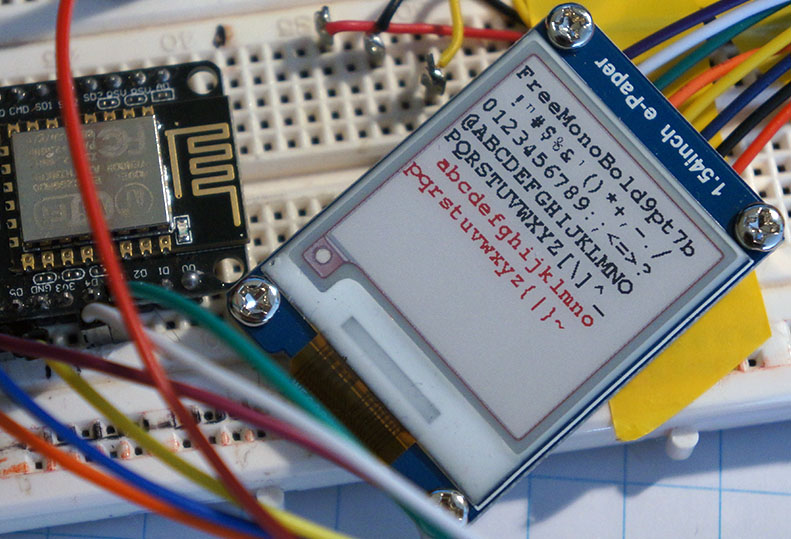

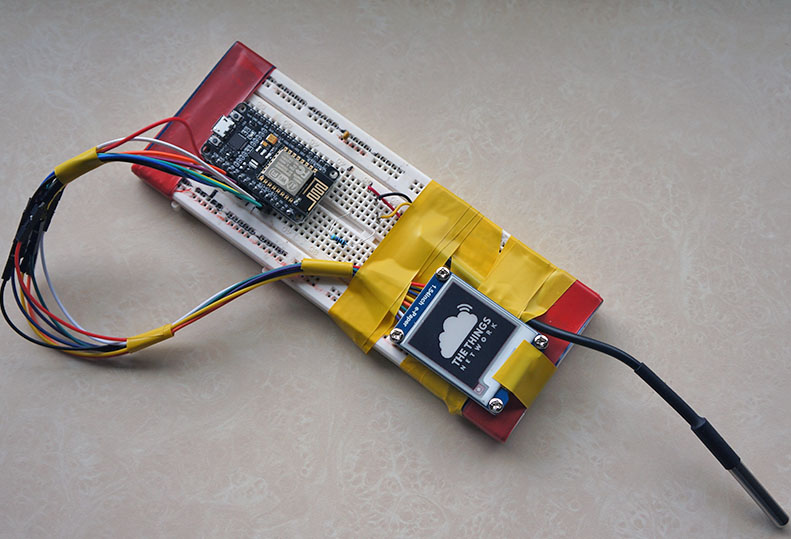

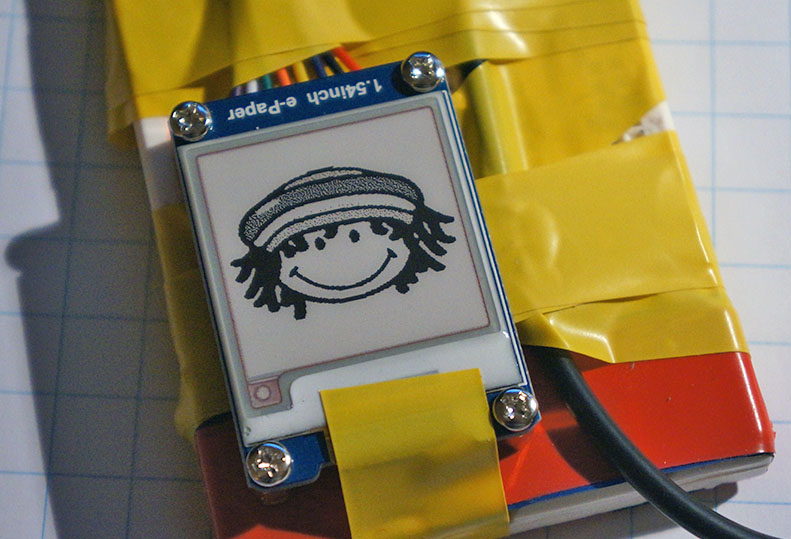

still playing with e paper

x758

x759


(QLion) #663

Yip Corona is a necessity… :stuck_out_tongue:


#664

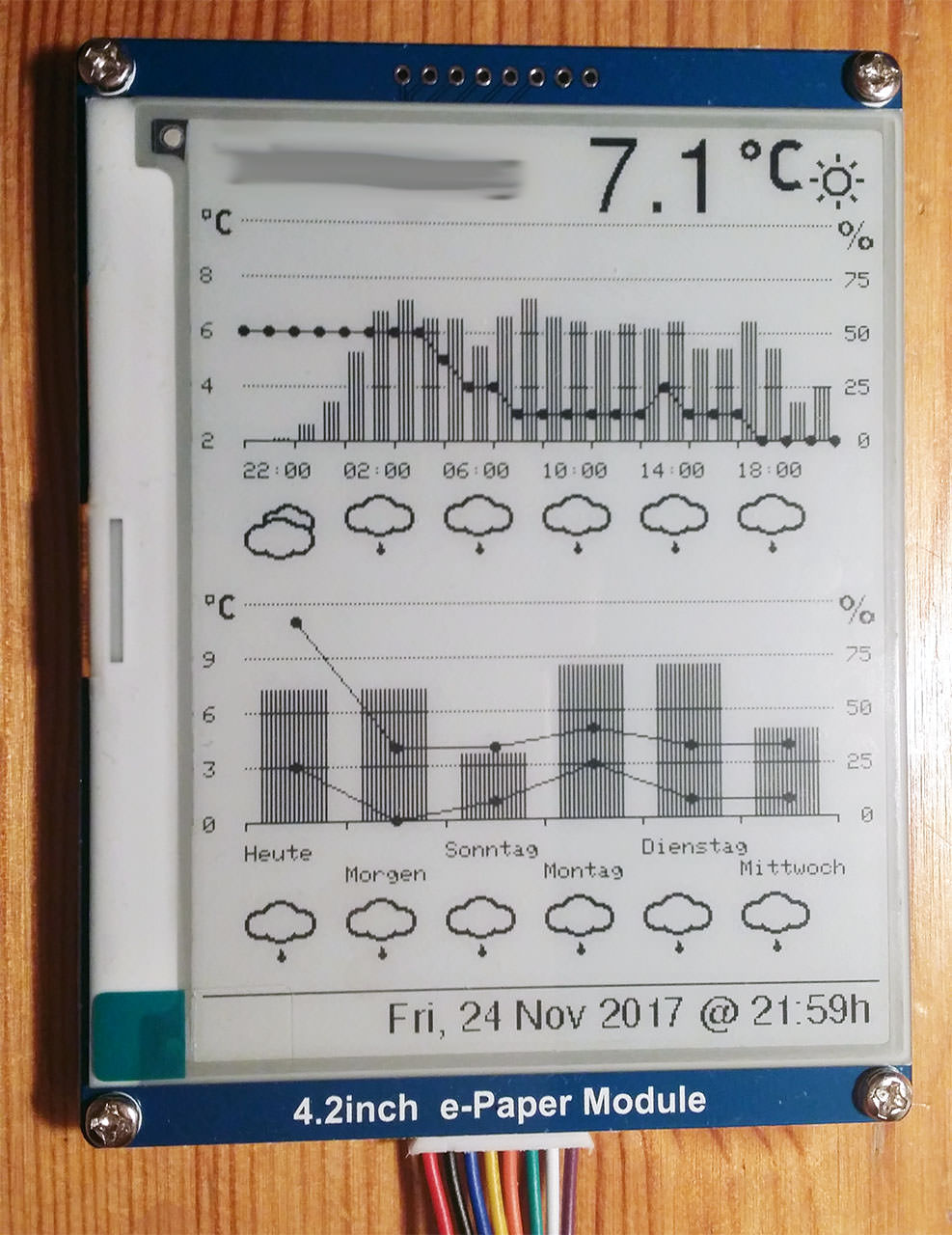

A nice article on increasing refresh rate of the waveshare display: http://benkrasnow.blogspot.fr/2017/10/fast-partial-refresh-on-42-e-paper.html


#665

objective is to mount it on a RPI zero (gw) … after I understand :roll_eyes:

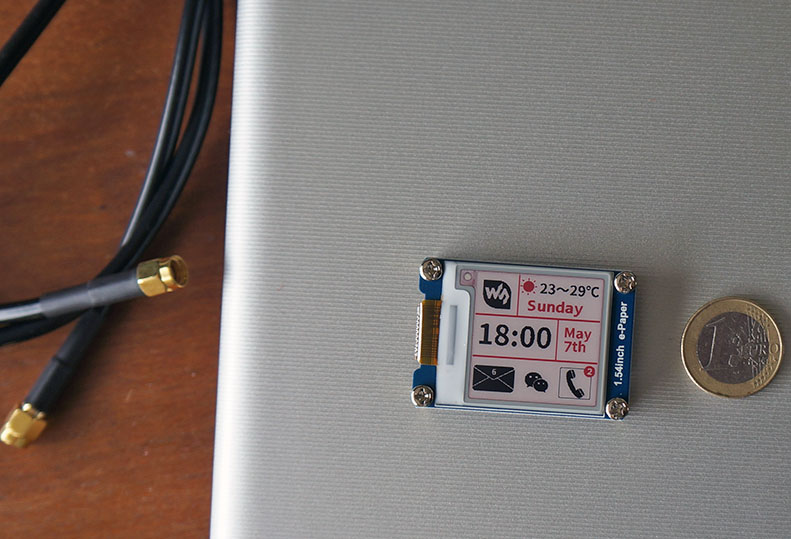

what about this … :heart_eyes:


#666

x761

x760
