Is module with: ESP8285 (ESP8266), 50 kB RAM, 1 MB Flash

I think I would prefer a TTGO Micro-32 - ESP32-Pico-D4 module instead:

Module with: ESP32 Pico, 2 cores, 520 kB RAM, 4 MB Flash


#1158

true more power in a little box.

but its something I want to try… receiving TTN MQTT over wifi in a little client… how… don’t know yet but we need small displays and wifi :sunglasses:


#1159

almost forgot this :crazy_face: … well the parts are coming in … ZzzzZZZzzzzz lowly.

x954
little vacuumpump 5v (170 Ma)


#1160

x957

IP65 Ethernet connector


#1161

x958

balance / protection boards if you connect more then one li-ion battery

ps you don’t need them for nodes :wink:


#1162

x960

x959

:scream:


#1163

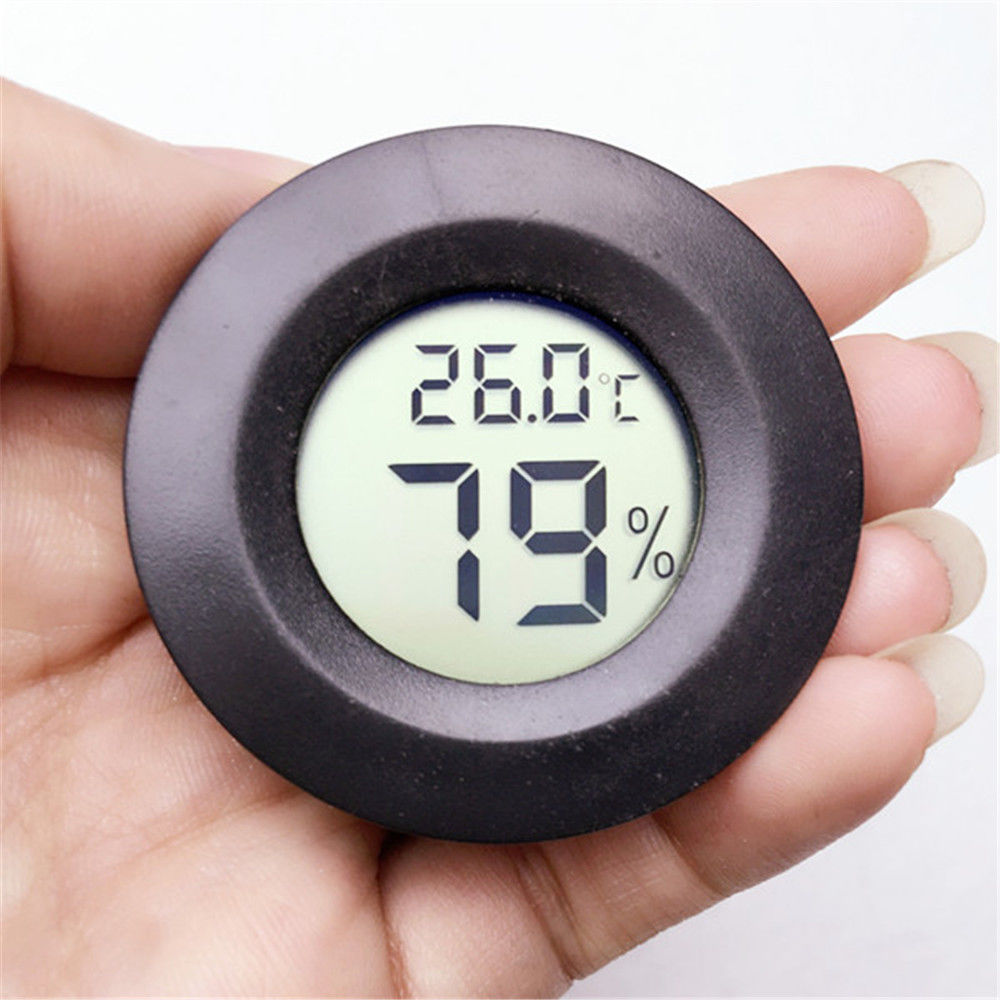

Nice LCD , Could u tell me from where can I buy something like this ?

Thx!


#1164


US $1.98 incl. shipping


#1165

Thx !


#1167

Don’t care If i don’t need them for nodes, it would be great for my Yaesu FT817 :slight_smile:


(Remko) #1169

Evaluating the Meetjestad node for TTN Community TTN-Apeldoorn.
Interesting design in both hard- and software. Still many questions about the design considerations.

Clipboard01


#1170

what’s 'onboard ? 328p / rfm95w / 3v3 dc dc /bme 280 . just guessing :wink:


(Remko) #1171

yes, yes, yes, yes. GPS is not connected.


#1172

I think it’s an FPGA with 256M gates. :wink:
(Sensors to be added on the left.)


#1173

its an PE1duino … probably with CH2i lowpowuRrrrrrr


#1174

PE1duino?
Your design considerations? :wink:


(Remko) #1175

No, not mine. From the man who designed it.


#1176

I was just kidding. :wink:


(Remko) #1177

I know :roll_eyes:
