Nice. Just curious:

  • What size (probably 18650) and capacity is your LiFePO4 cell?
  • Is the node doing any measurements?
  • How often does it transmit messages?

Yeah, it is a 18650 LiFePO4 and I don’t recall the capacity. I do seem to recall not buying the most expensive as it was my first experiment with the chemistry un-regulated on a 3.3v MCU.

The node has a BMP280 which it wakes and polls every 15 minutes so 96 cycles per day. Here are some snaps from browser views today, the battery voltage and the frame counter. This node was reset 1.5 months after deployment by a curious kid who asked what the little button did after he had pressed it! How human :smile:
It is running at 96 transmits per day for over 12 months at this stage!

2 1

1 Like

Yeah…
As I said in the other thread, mine is approaching 4 months with a 700 mAh Soshine, posting data from a BME280 every 5 minutes…
I disabled ADR a couple of days ago (using a downlink command), as I realised that due to some recent change in TTN, every uplink was generating a downlink :blush:

2 Likes

x1336

2 x LoRa SX1276 RS485 RS232 Long Range rf Transceiver E32-DTU-868L30

x1340

DB9%20RS232%20Male%20Female%20Connector
ordered these for making my own very short cables, for programming the units I use this USB- RS232 cable

x1337
RPI booting from M-sata works … but with that fancy passive cooling it won’t fit :rofl:

  • update : fixed

x1342

x1338

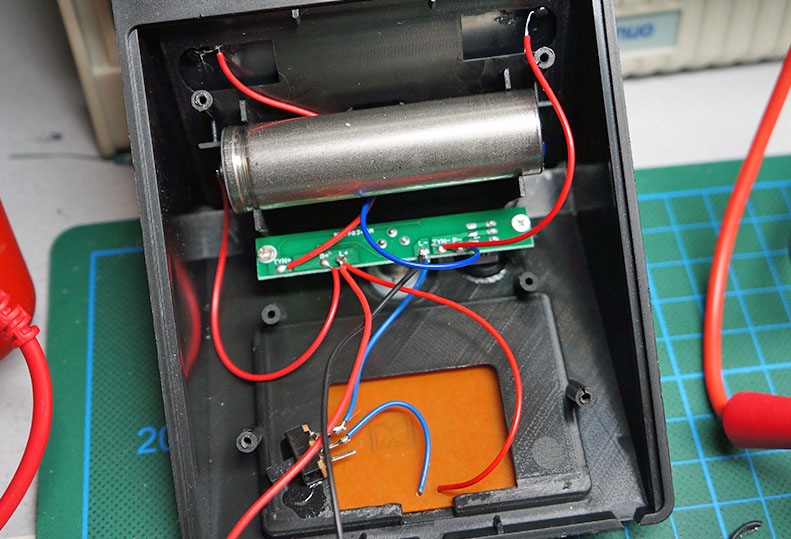

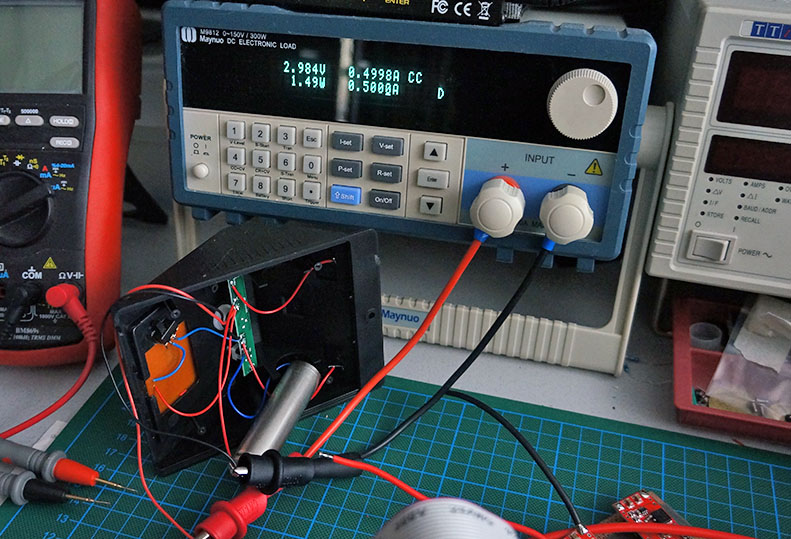

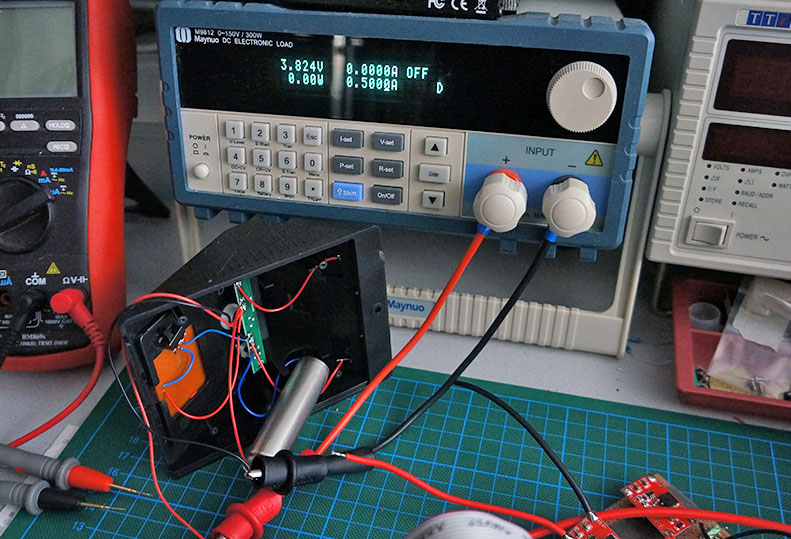

  • update - didn’t meassure the exact capacity of the battery (yet) but this solar unit seems usable as
