a little bit a ‘special’ day today …

3 Likes

x1020

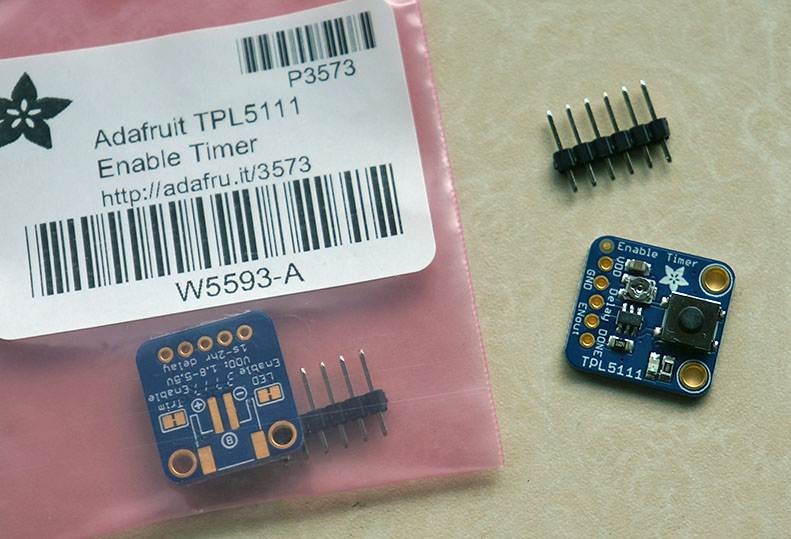

The TPL5111 breakout is best when you have an enable pin you can control, the TPL5110 is best when you are able to ‘break’ the power input line to place the TPL5110 between the power supply and Vin.

1 Like

x1021

x1022

dutch heatwave lorawan gateway emergency cooling kit arrived :roll_eyes:

1 Like

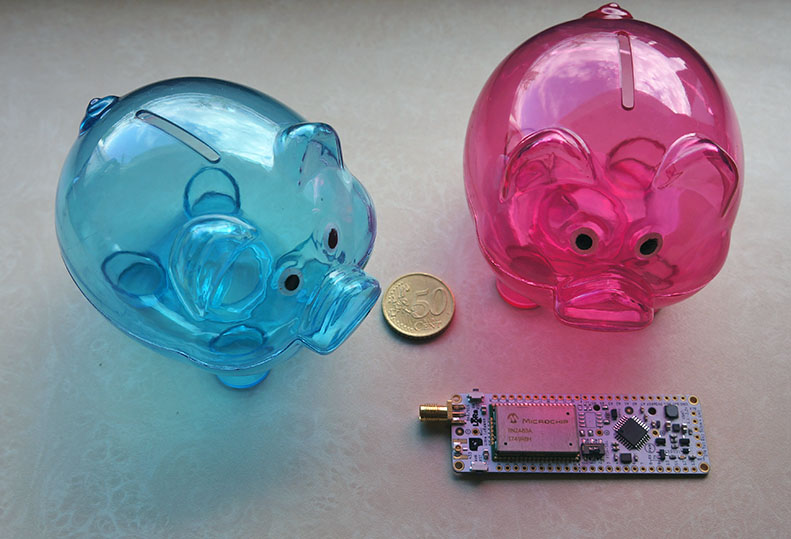

I have this idea of a ’ LoRaWAN enhanced’ Piggy Bank so children can see their savings on their iPad/mobile…

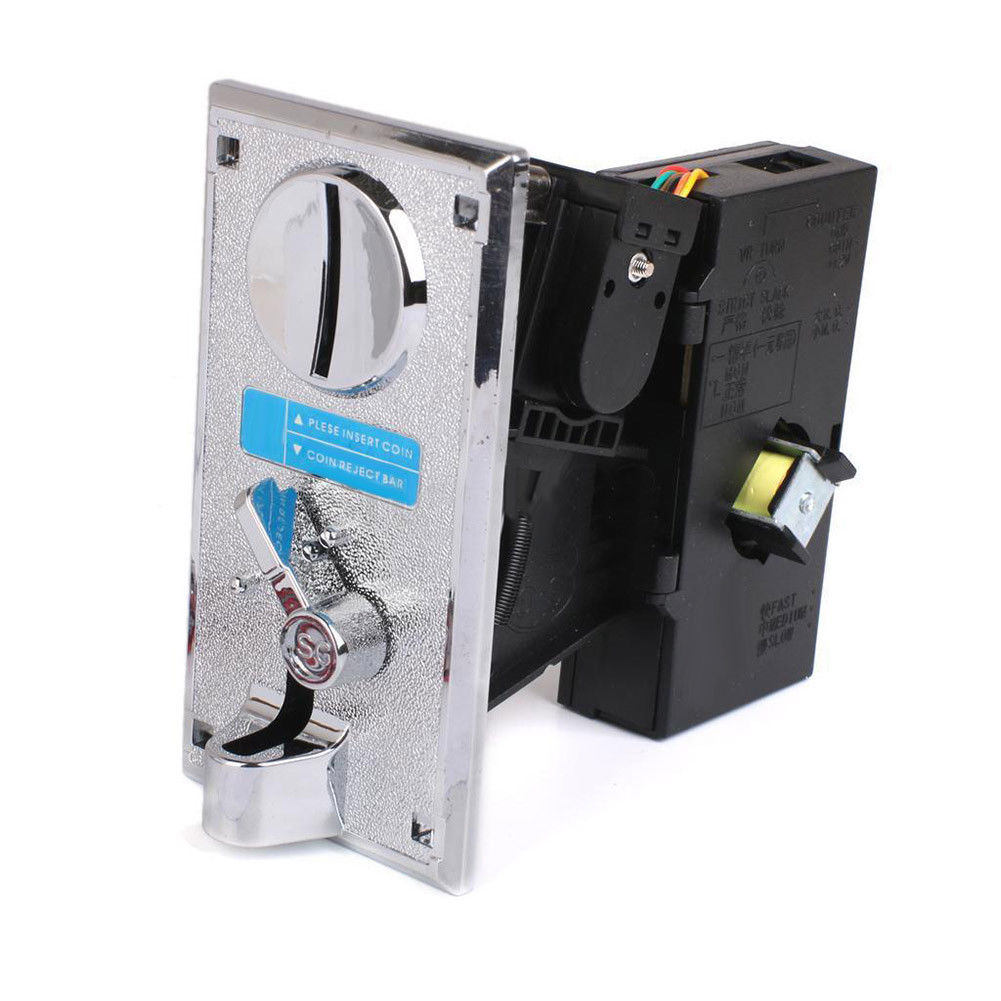

so I need a coin mechanism to detect what coin is inserted.
something like …

wow… they are big … :roll_eyes:

x1023

some analog versions :rofl:

  • what if I just weight the moment a coin is inserted ?
    every coin has a different weight… and store (and transmit) the total

x1026

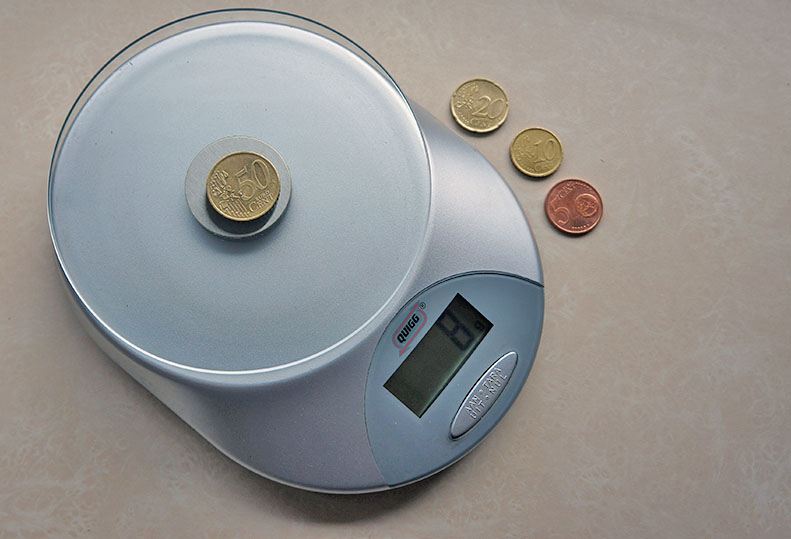

testing the principle :sunglasses:

are these accurate enough ?

x1024

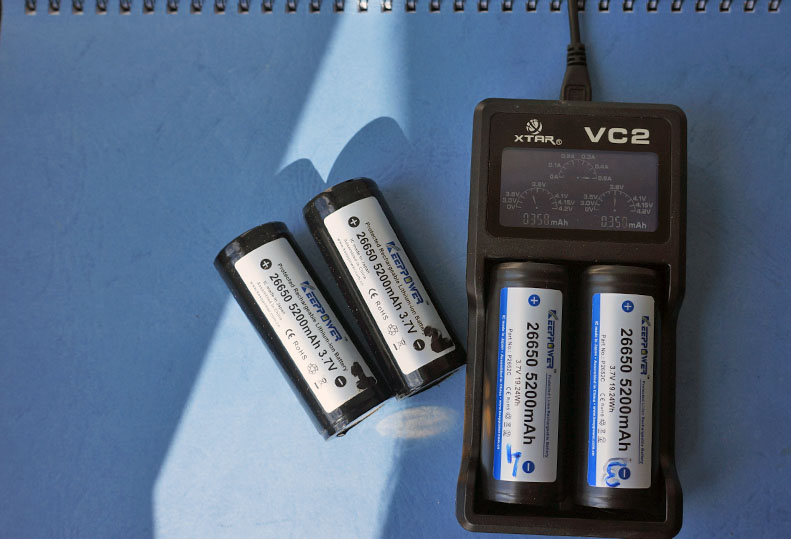

what comes after the 18650 (3400 mAh) ? the 26650 (5200 mAh) - test

x1027

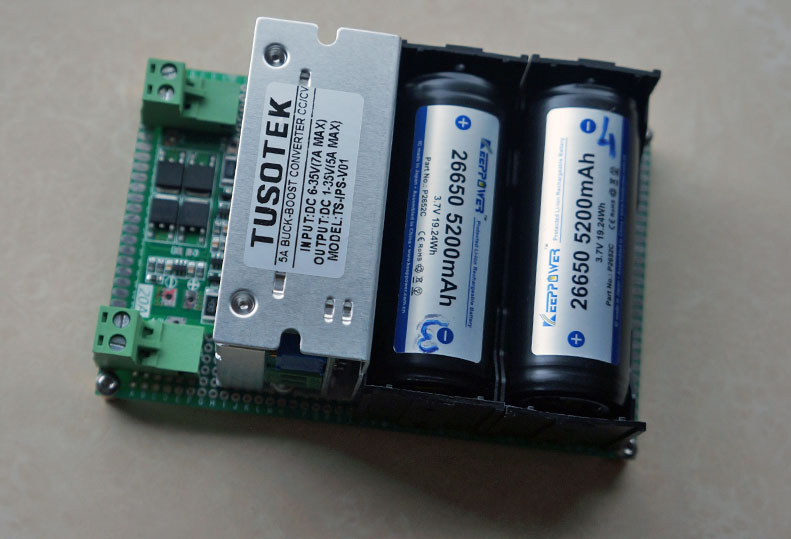

dc/dc 5.1v power supply with 2x balanced/protected 26650

x1028

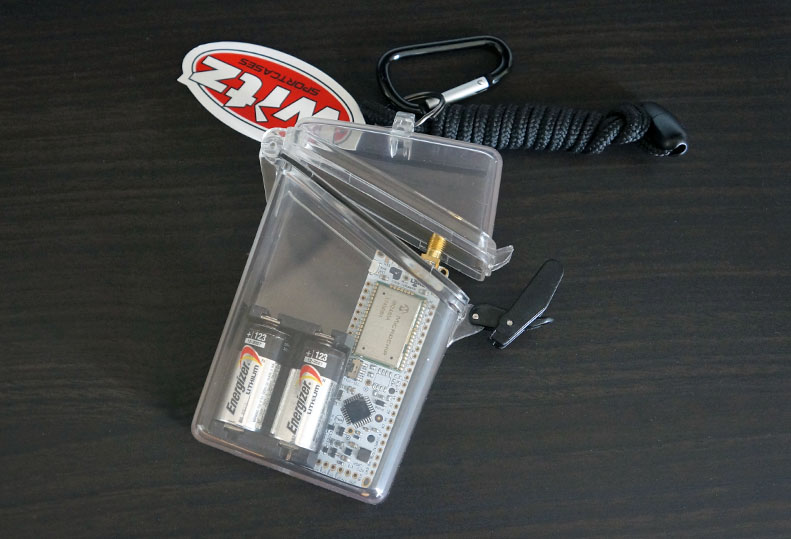

transparant waterproof ‘sports’ node/sensor/paxcounter enclosure

x1029
BPW34 - high sensitive pin photodiode

x1030

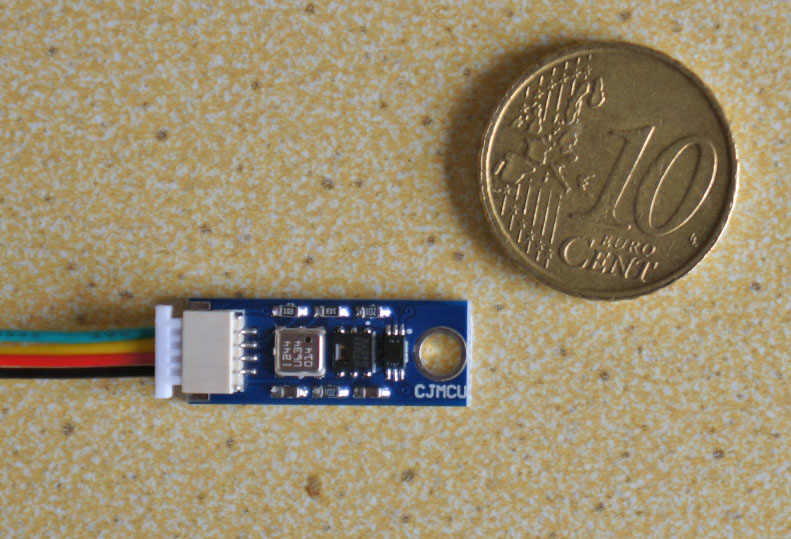

small I2C HTU21D+BMP180+BH1750FVI Temperature Humidity Pressure Light Sensor

2 Likes

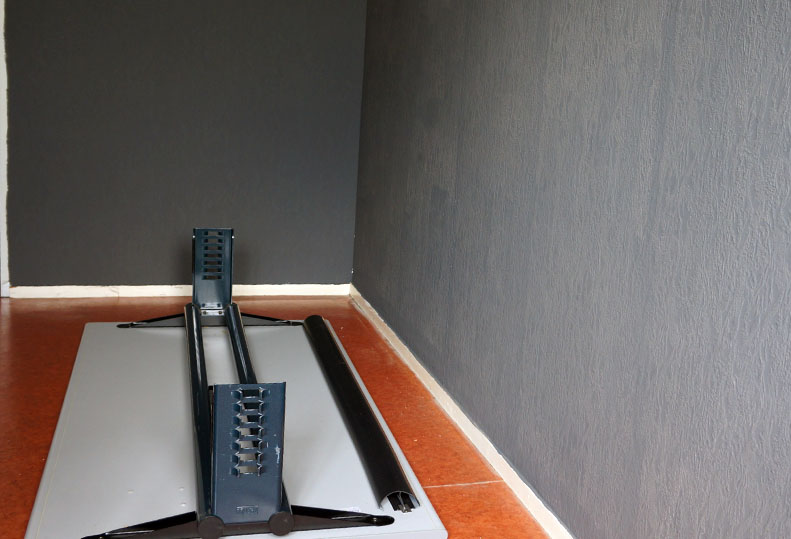

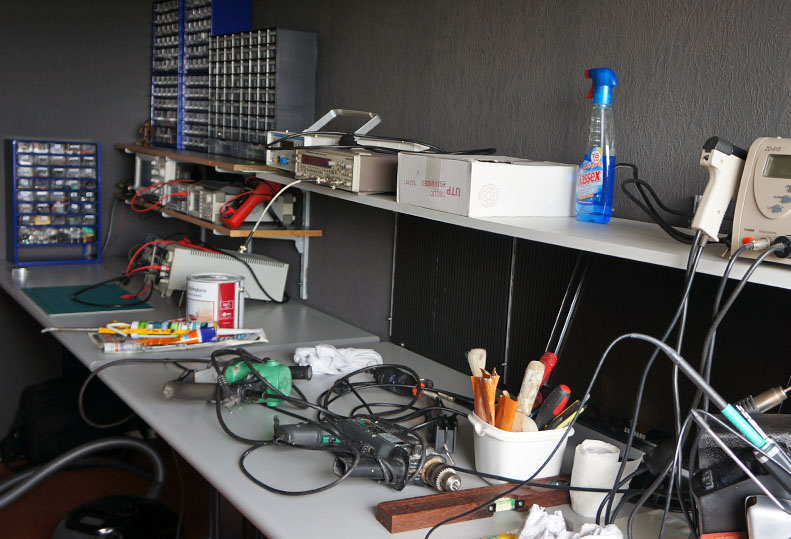

I’m moving my electronic (hobby) workshop to another room and I was looking online for material to make my own (bigger) workbench.

then I found this ‘used’ office outlet, just 10 minutes from my home and buying a used desk is almost cheaper then building it.
Anybody who needs (NL) an affordable hobby worktable… look

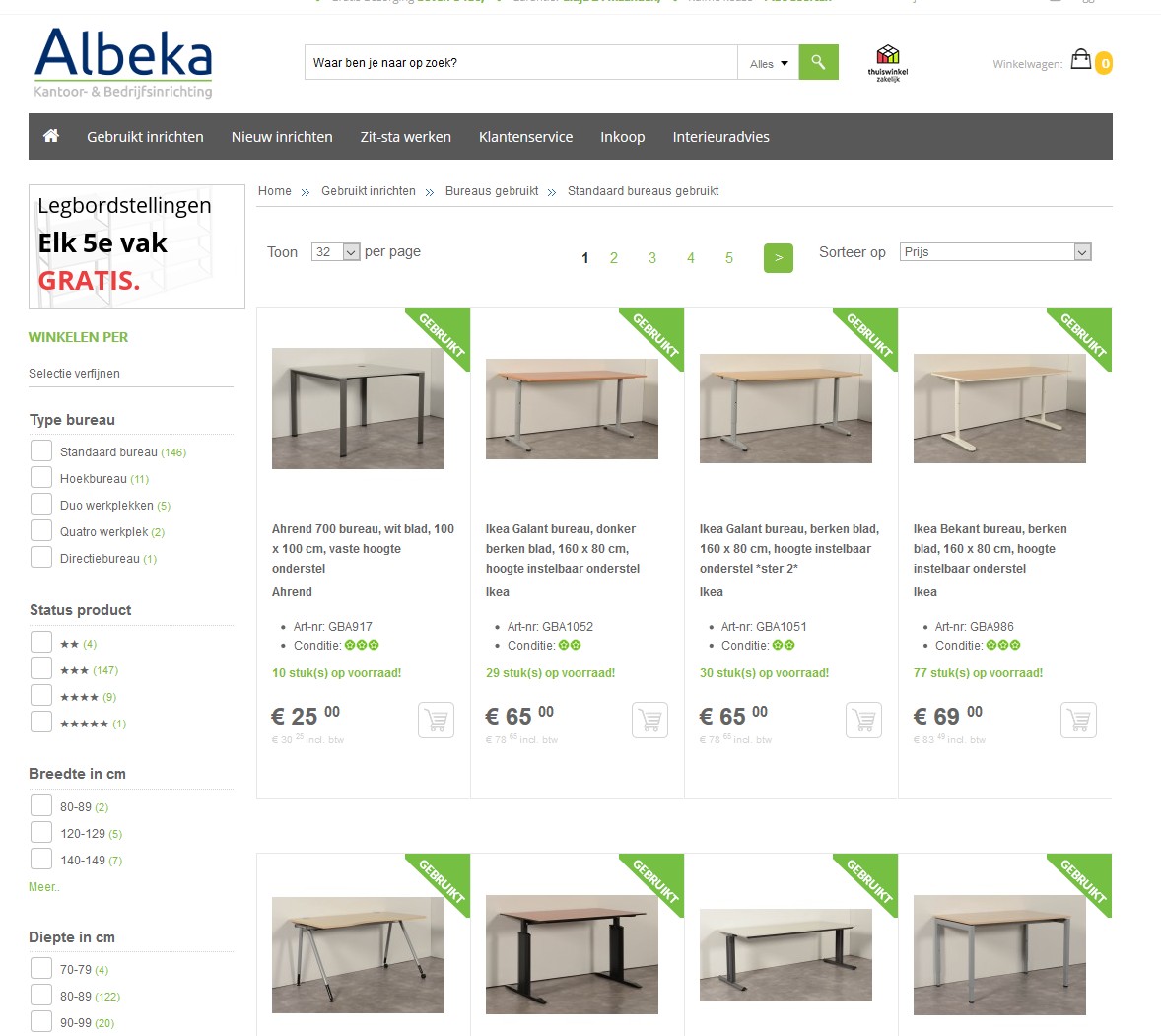

albeka

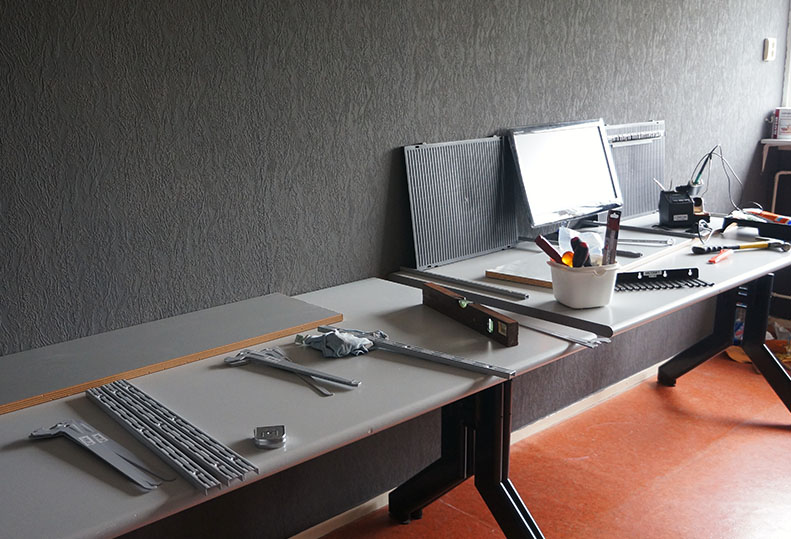

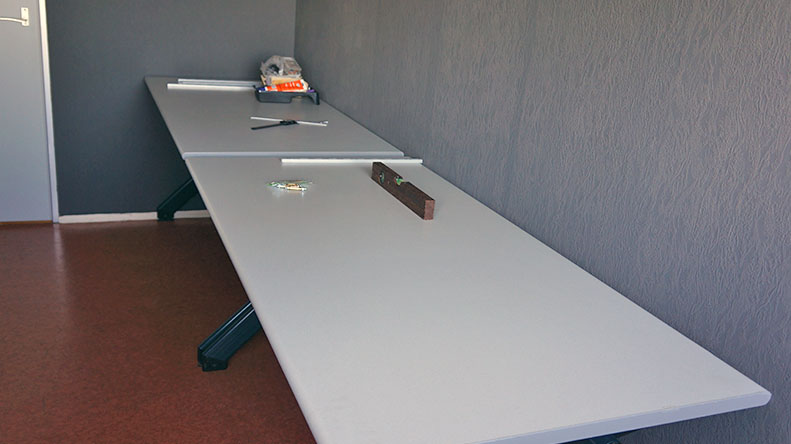

  • so I bought 2 … now I get an 3.20 x 0.80 workbench … :sunglasses:

x1031

x1033

x1035

x1037

1 Like

Have you completed the SHT31D Rocket Scream low power extra long life V 2.0 LoRaWAN node?
Can you share your experience with the SHT31D Sensor?

this morning the test node died… for real :wink:

so yes I finished the rocketscream lowpower node test
result : 290 days on a single AA battery transmitting temp / framecounter / humidity every 5 min.

but that test was done with a BME280 sensor
the node died when the voltage dropped to 1.17 V last night

the V2 version (the one that’s available now, will even last a bit longer)

1 Like

I meant The WORKBENCH part 1 - #949 by BoRRoZ
the new node with better SHT31D Sensor.
i read the BME280 is not so good
so I thought you already have experience with the SHT31D Sensor

ah ok that one … sorry no… not finished yet

the BME280 worked fine indoors, but I think it’s getting very fast to 100% humidity outdoors

x1040

now waiting for the BIG glue sticks (black)

very good service I experienced on eBay.
I was not completely happy with the product I bought and the shopowner understand my problem and replaced them very fast, thank you mr. Hunk Lee !

x1041

So If you need (big) LIPO’s I can recommend A-OK battery !

http://www.ebaystores.com/A-OK-battery

x1043

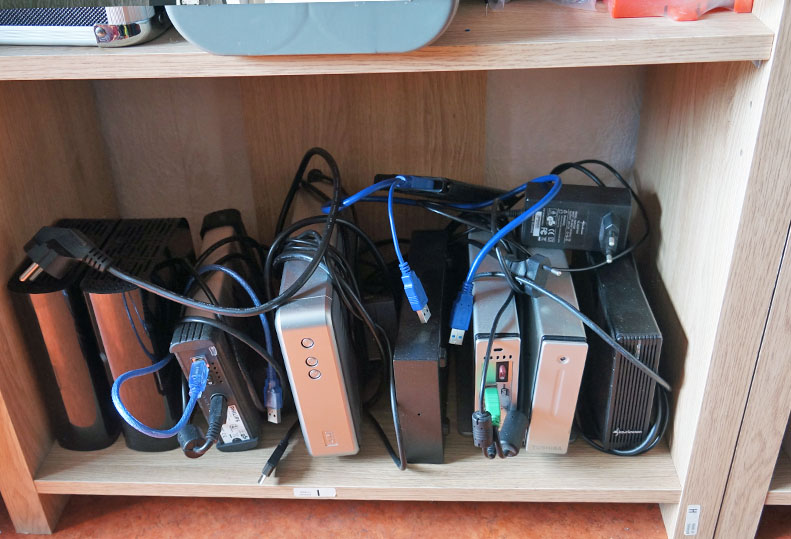

the problem when you just can’t throw away working equipment … :wink:

2 Likes

video
