1. Connecting the Programmer #

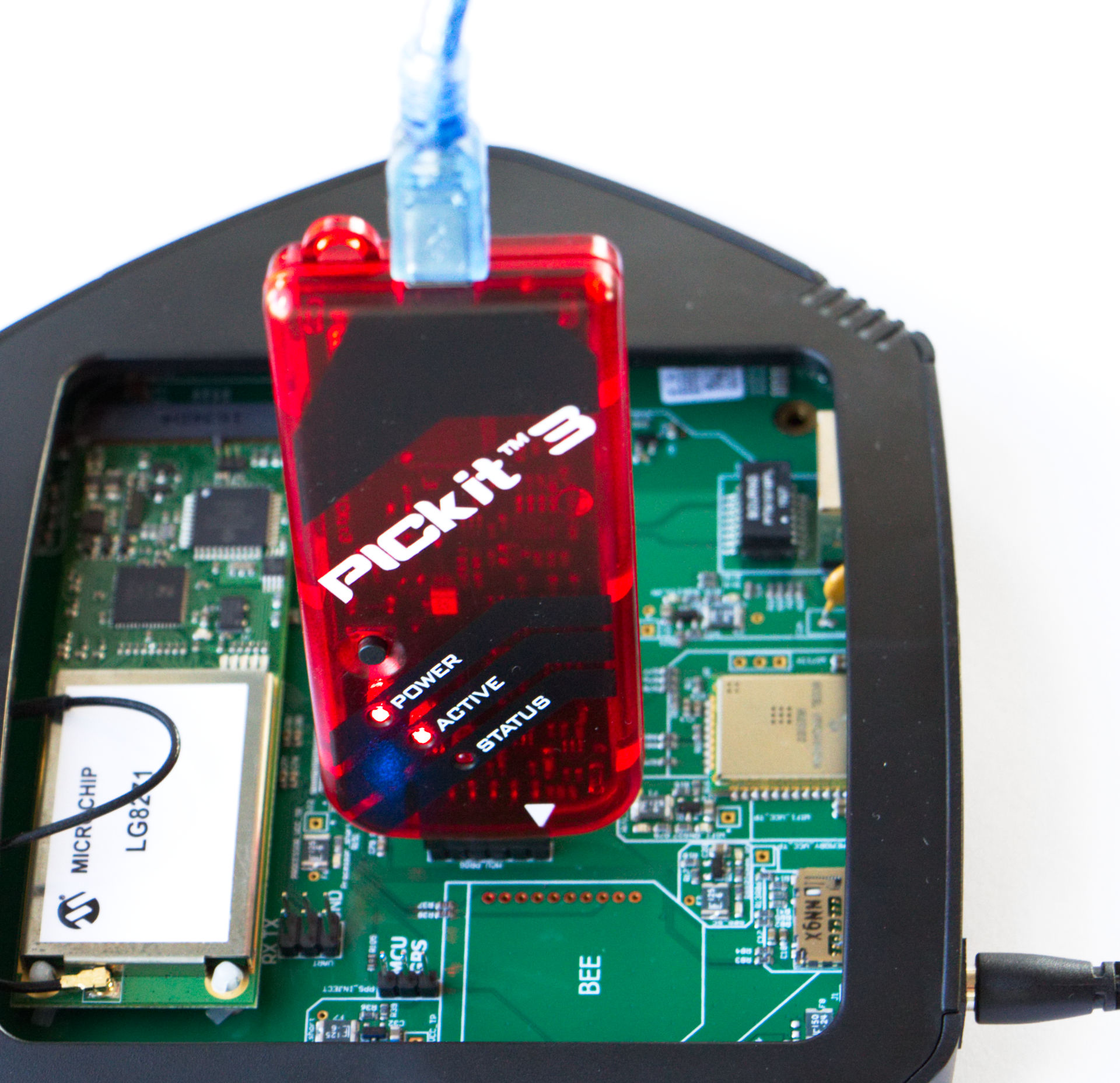

Connect the programmer to the
MCU_PROG port of the gateway as shown below
2. Selection #
Once connected, open the MPLAB IPE on your computer and select the device
3. Connection #
connect button next to the Tool to allow the IPE to connect to the Programmer. This allows the IPE to read existing firmware information.
4. Load Hex File #
Now load the hex file from your PC. The IPE checks it for validity.
Load Hex File
In case you encounter a warning
hexfile contains code that is located at addresses that do not exist on the device, you should still be able to continue with programming.
5. Start Programming #
Program to start the reprogramming of the gateway.
6. Verification #
Once the program is complete, the checksums are verified.
